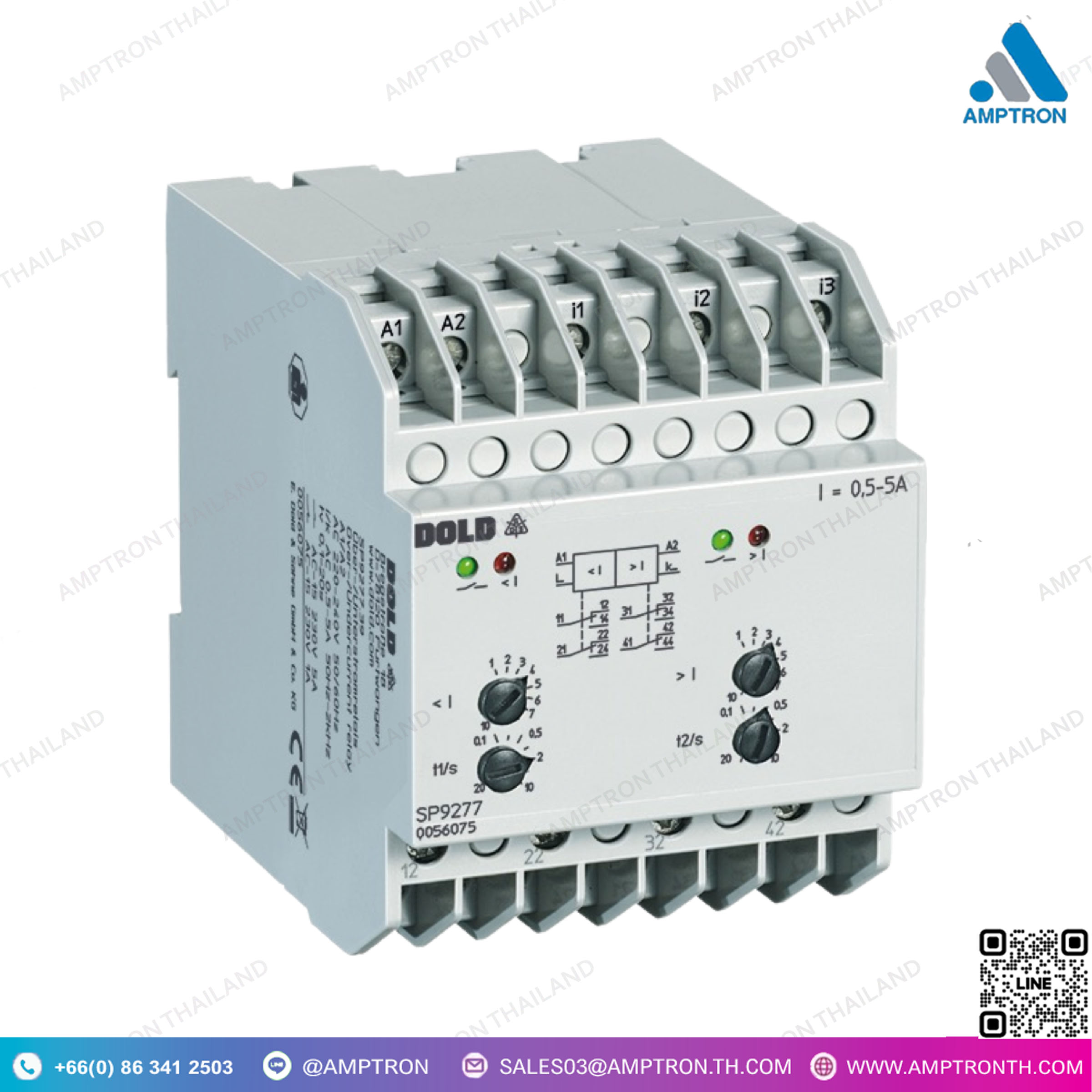

ตรวจจับกระแสเอซี Over- and Under current Relay SP 9277
Brand : DOLD
Catalog : Google Drive
Model : SP 9277
Size : 70 x 90 x 100 mm
• ตามมาตรฐาน IEC/EN 60255-1
• SP 9277 : สามเฟส
• ช่วงการวัดจาก AC 0.1 … 15 A
• มาพร้อมกับหม้อแปลงกระแสในตัวสำหรับ 0.5 … 100 A
• SP 9277 มาพร้อมกับการตั้งเวลาหน่วงแยกสำหรับกระแสเกินและกระแสต่ำ
• แสดงสถานะด้วย LED สำหรับกระแสเกิน, กระแสต่ำ และกระแสปกติ
• SP 9277 มาพร้อมกับรีเลย์แยกสำหรับกระแสเกินและกระแสต่ำ
• ตัวเลือกการทำงานโดยการจ่ายไฟเมื่อเกิดเหตุการณ์ (Energized on trip)
• การติดตั้งแบบราง DIN หรือสกรู
• หมายเลขสินค้า: 0049306
• ผลิตจากเทอร์โมพลาสติกที่มีคุณสมบัติ V0 ตามมาตรฐาน UL Subject 94
Description
• According to IEC/EN 60 25-1
• SP 9277 : 3-phase
• Measuring ranges from AC 0.1 … 15 A
• With built in current transformer for 0.5 … 100 A
• SP 9277 with separate settable time delay for over- and undercurrent
• LED indicators for over-, under- and normal current
• SP 9277 with separate output relays for over- and undercurrent
• Optionally energized on trip
• DIN rail or screw mounting
• Article number: 0049306
• Thermoplastic with V0 behaviour according to UL subject 94
