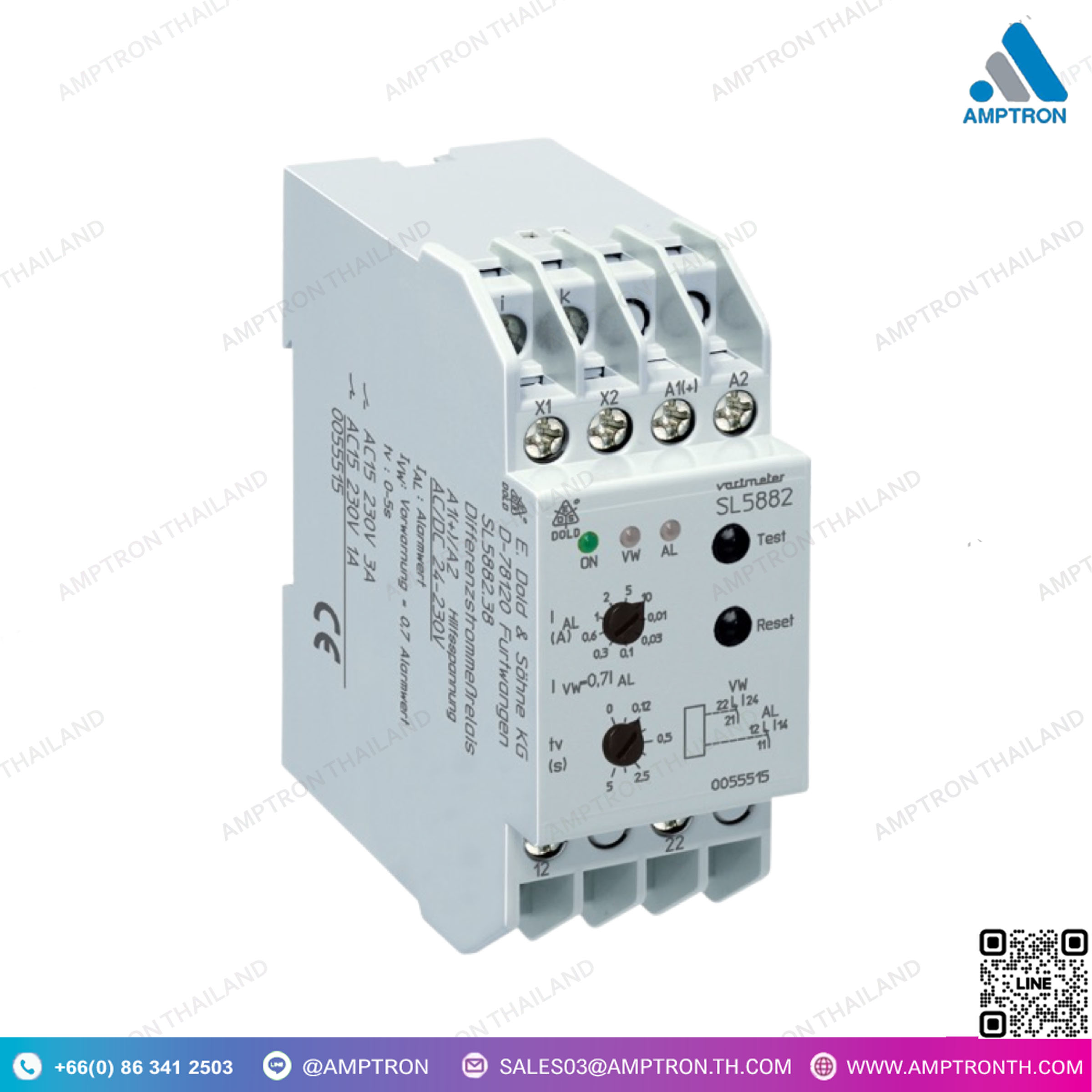

ตรวจจับไฟรั่วเอซีดีซี RCM Residual Current Monitor SL 5882
Brand : DOLD
Catalog : Google Drive
Model : IL 5882
Size : 35 x 90 x 63 mm
• ตามมาตรฐาน IEC/EN 62020
• สำหรับกระแสไฟฟ้า AC และกระแสไฟฟ้า DC ที่มีการกระตุก (Type A) ตามมาตรฐาน IEC/TR 60755
• ค่าไตรปิ้งที่ตั้งไว้ได้ 9 ค่า ตั้งแต่ 10 mA ถึง 10 A หรือจาก 10 mA … 30 A
• ช่วงความถี่ 20 … 2000 Hz
• เลือกการรีเซ็ตแบบแมนนวลหรืออัตโนมัติ
• มีฟังก์ชันเตือนล่วงหน้า
• มาพร้อมกับปุ่มทดสอบและปุ่มรีเซ็ต
• ตรวจจับการขาดการเชื่อมต่อสายไฟ
• เวลาตอบสนองสั้น
• มีการหน่วงเวลาแบบปรับได้
• ไม่ทำงานเมื่อเกิดการตัดการทำงาน
• ไฟ LED แสดงสถานะของแหล่งจ่ายไฟและสถานะของคอนแทค
• ช่องติดต่อเปลี่ยนสถานะ 2 ช่อง (1 changeover contact)
• หมายเลขสินค้า: 0066743
• วัสดุเทอร์โมพลาสติกที่มีลักษณะการติดไฟ V0 ตามมาตรฐาน UL Subjekt 94
Description
• According to IEC/EN 62020
• For AC and pulsating DC currants Type A to IEC/TR 60755
• 9 tripping values from 10 mA to 10 A or from 10 mA … 30 A
• Frequency range 20 … 2000 Hz
• Selection of manual or automatic reset
• With prewarning
• With test and reset button
• Broken wire detection
• Short reaction time
• With adjustable delay
• De-energized on trip
• LED indication for auxiliary supply and state of contact
• 2 x 1 changeover contact
• Article number: 0066743
• Thermoplastic with V0-behaviour according UL subject 94
