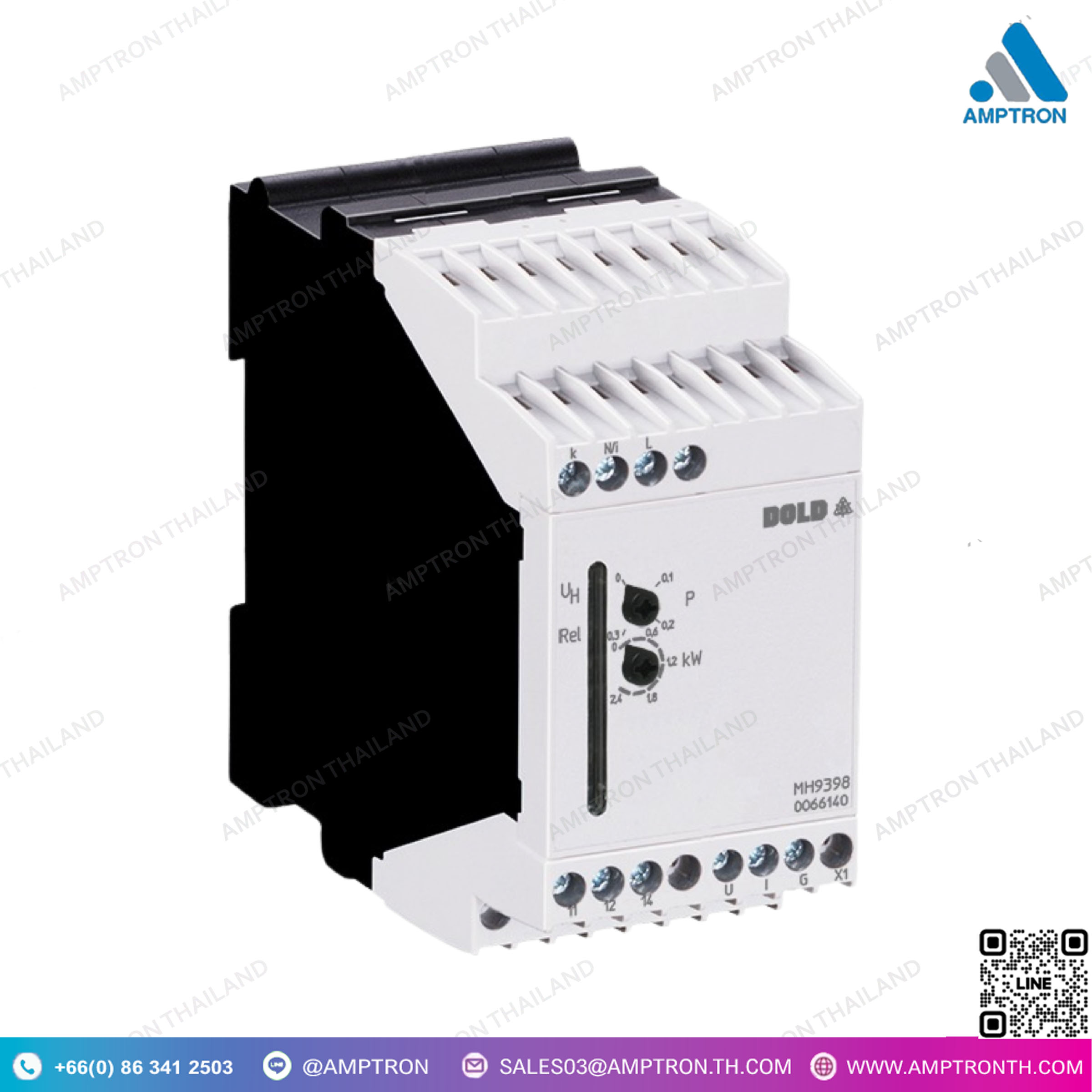

Varimeter Active Power Transducer MH 9398
ตัวแปลงพลังงาน Active Power Transducer MH 9398
Brand : DOLD
Catalog : Google Drive
Model : MH 9398
Size : 45 x 90 x 97 mm
• ตามมาตรฐาน IEC/EN 60255-1
• ขั้นตอนการวัด: การวัดกำลังที่แท้จริง (Active Power Measuring)
• การตรวจจับการล้นโหลด (Overload Detection)
• สัญญาณแอนะล็อกแยกแบบไฟฟ้า (Galvanically Isolated) พร้อมตัวเลือก
0 … 20 mA และ 0 … 10 V หรือ
4 … 20 mA และ 2 … 10 V
• ปรับค่าการตอบสนองได้
• ฮิสเทอเรซิสคงที่
• เฟสเดียว (Single-phase)
• แสดง LED สำหรับแรงดันไฟฟ้าช่วยและสถานะของคอนแทกต์
• การปิดวงจรเมื่อเกิดเหตุขัดข้อง (De-energized on trip)
• ออปชันมีขั้วต่อที่สามารถถอดออกได้เพื่อการเปลี่ยนอุปกรณ์ที่ง่าย
ด้วยขั้วต่อสกรู
หรือด้วยขั้วต่อแบบคลิปหนีบ
• หมายเลขสินค้า: 0066140
• ทำจากเทอร์โมพลาสติกที่มีคุณสมบัติ V0 ตามมาตรฐาน UL Subject 94
Description
• According to IEC/EN 60255-1
• Measurement procedures: active power measuring
• Detection of overload
• Galvanic separate analogue signals, optionally with
– 0 … 20 mA and 0 … 10 V or
– 4 … 20 mA and 2 … 10 V
• Adjustable response value
• Fixed hysteresis
• Single-phase
• LED indication for auxiliary voltage and contact position
• De-energized on trip
• As option with pluggable terminal blocks for easy exchange of devices
– With screw terminals
– Or with cage clamp terminals
• Article number: 0066140
• Thermoplastic with VO behaviour according to UL Subject 94
