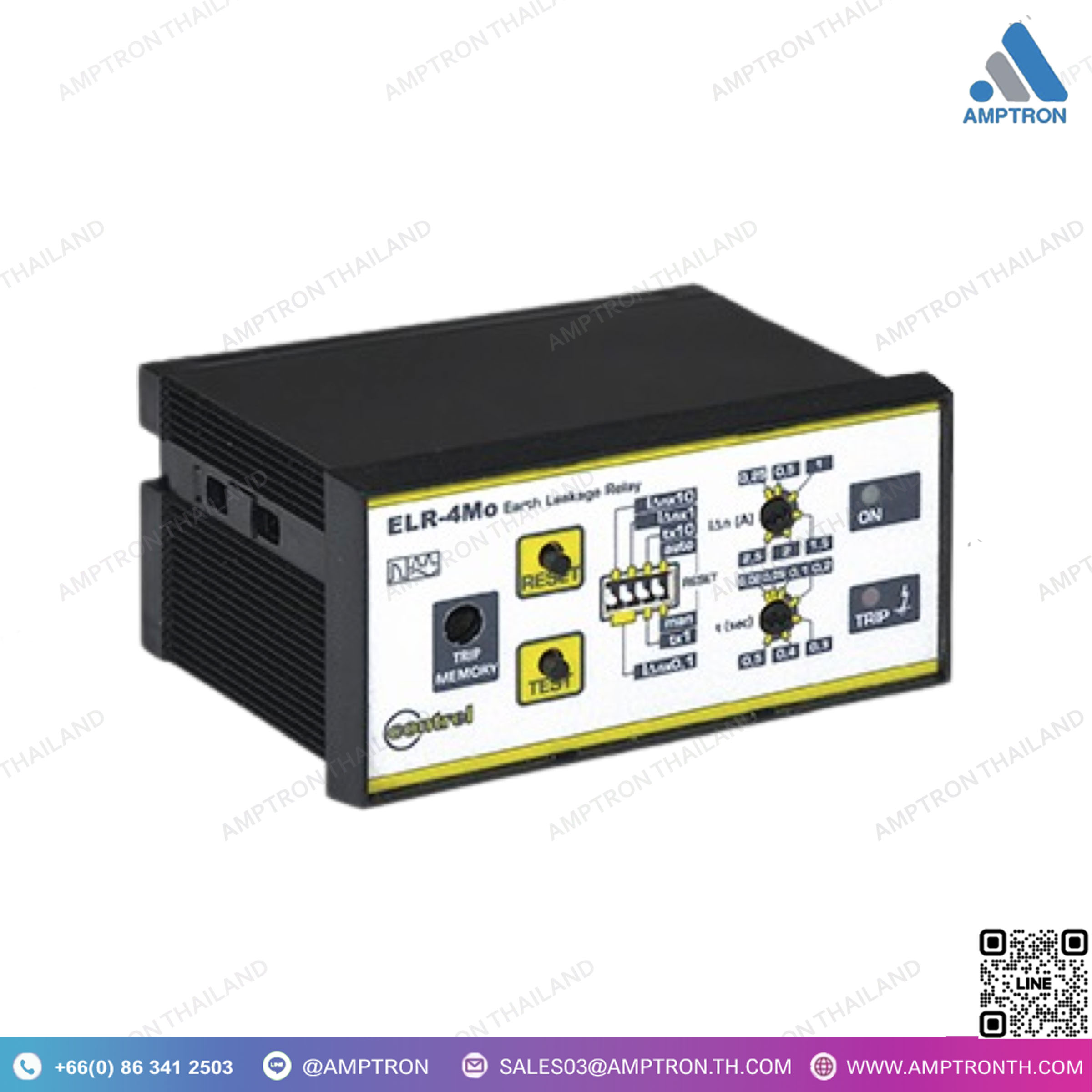

รีเลย์ตรวจจับไฟรั่ว-Earth Leakage Relay รุ่น ELR-4
Brand : CONTREL
Catalog : Google Drive
Model : ELR-4v, ELR-4Mv, ELR-4o , ELR-4Mo
Size : 48×96 mm (ELR-4O), 96×48 mm (ELR-4V)
• รีเลย์ป้องกันกระแสไฟรั่ว
• เซนเซอร์กระแสไฟรั่ว CT-1
• พลังงาน : 4 VA
• ประเภทการปรับตั้งกระแสไฟที่เหลือ : 0.025…25 A
• ประเภทการปรับตั้งเวลาในการหน่วงกระแสไฟ : 0.02…5 วินาที
• ชั้นการป้องกันกระแสไฟรั่ว : ประเภท A
• รีเลย์เอาต์พุต : 1 การสลับ (TRIP) 5 A (240 VAC)
“• วิธีการติดตั้ง : ติดตั้งแบบฝัง
• มาตรฐาน : IEC/EN 61010
IEC/EN 61000-6-2EN
IEC/EN 61000-6-3
IEC/TR 60755
CEI EN 60947-2 Annex M”
• ระดับการป้องกัน IP : IP40 ด้านหน้า, IP20 ขั้วต่อ
DESCRIPTION
• Product type : Residual current protection relay
• Current sensors compatibility : CT-1 earth leakage current sensor
• Power consumption : 4 VA
• Residual earth-leakage adjustment type : 0.025…25 A
• Residual earth-leakage time delay adjustment type : 0.02…5 s
• Earth-leakage protection class : Type A
• Output relays : 1 changeover (TRIP) 5 A (240 VAC)
“• Display indications : Green LED (power ON)
Red LED (TRIP
Red LED (ALARM)
Mechanical trip memory (version ELR-4m)”
• Mounting mode : Flush mount
“• Standards IEC/EN 61010
IEC/EN 61000-6-2EN
IEC/EN 61000-6-3
IEC/TR 60755
CEI EN 60947-2 Annex M”
• IP degree of protection : IP40 front, IP20 terminals
• Operating temperature : -10…+60 °C
