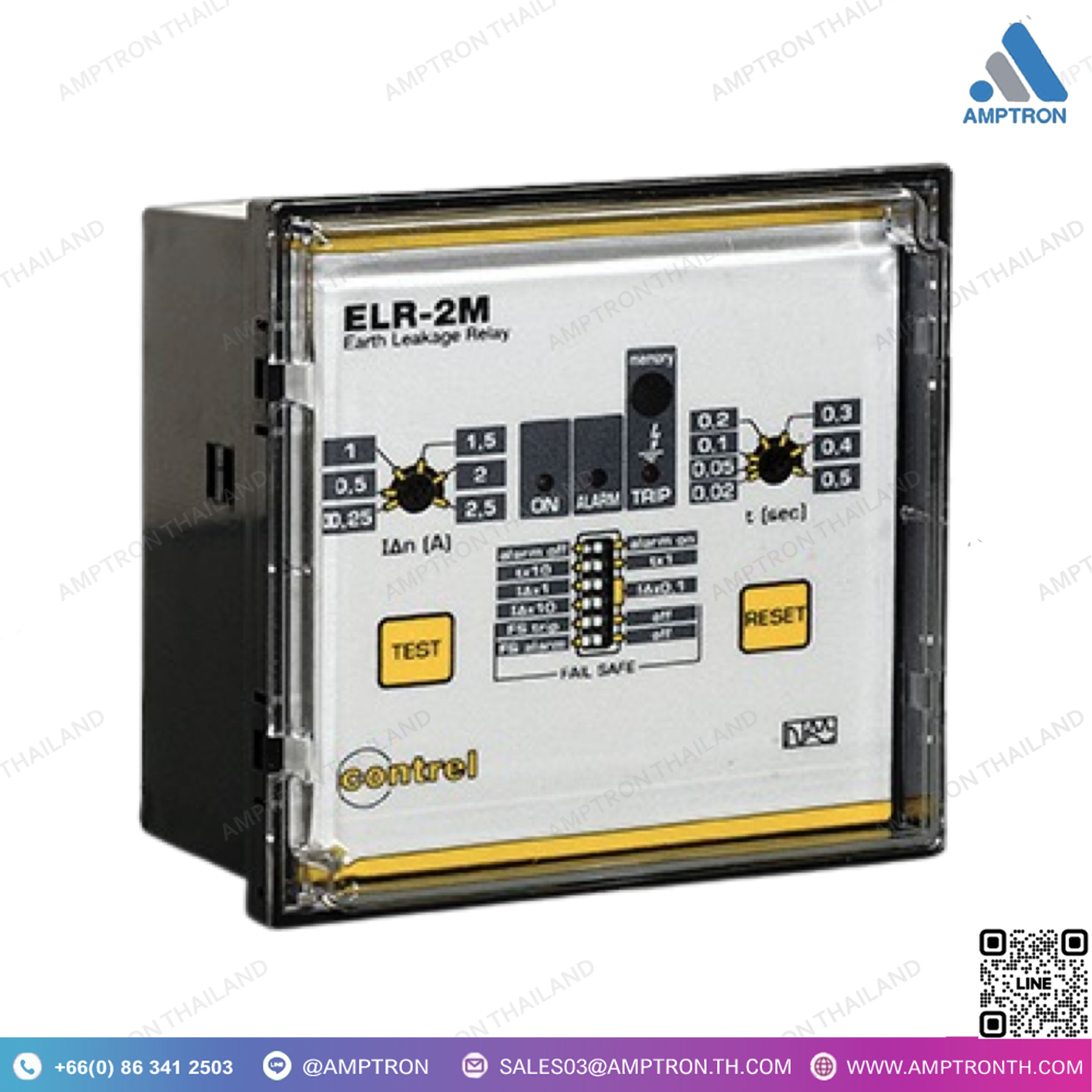

รีเลย์ป้องกันไฟรั่ว thresholds. Flag indicator รุ่น ELR-2
Brand : CONTREL
Catalog : Google Drive
Model : ELR-2M-24, ELR-2M-110, ELR-2M-230
Size : 96×96 mm
• ประเภทผลิตภัณฑ์ : รีเลย์ป้องกันกระแสไฟรั่ว
• เซนเซอร์กระแส : เซนเซอร์กระแสไฟรั่ว CT-1
• พลังงาน : 5.5 VA
• ประเภทการปรับตั้งกระแสไฟ : 0.025…25 A
• การหน่วงกระแสไฟที่เหลือ : 0.02…5 วินาที
• ชั้นการป้องกันกระแสไฟรั่ว : ประเภท A
“• การแสดงผล : LED สีเขียว (พลังงานเปิด)
LED สีแดง (TRIP)
LED สีแดง (ALARM)”
“• มาตรฐาน : IEC/EN 61010
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/TR 60755
CEI EN 60947-2 Annex M”
DESCRIPTION
• Product type : Residual current protection relay
• Current sensors compatibility : CT-1 earth leakage current sensor
• Power consumption : 5.5 VA
• Residual earth-leakage adjustment type : 0.025…25 A
• Residual earth-leakage time delay adjustment type: 0.02…5 s
• Earth-leakage protection class : Type A
“• Output relays 2 changeovers (both TRIP) 5 A (240 VAC)
Configurable normally de-energised or energised”
“• Display indications : Green LED (power ON)
Red LED (TRIP
Red LED (ALARM)
Mechanical trip memory (version ELR-2M) ”
• Mounting mode : Flush mount
“• Standards IEC/EN 61010
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/TR 60755
CEI EN 60947-2 Annex M”
• IP degree of protection : IP40 front, IP20 terminals
• Operating temperature : -10…+60 °C
