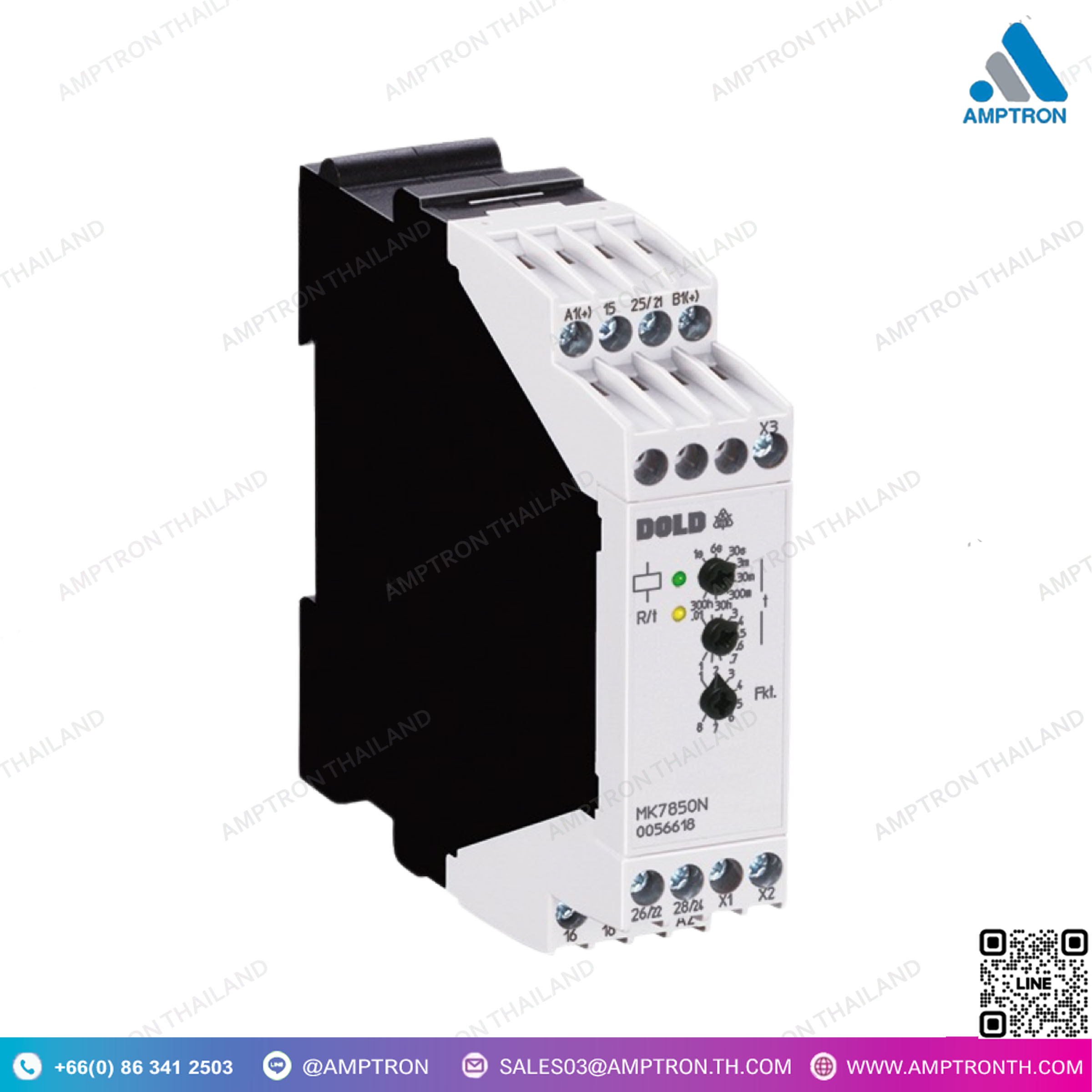

Multitimer Multifunction Relay MK 7850N/200
รีเลย์ Multifunction Relay MK 7850N/200
Brand : DOLD
Catalog : Google Drive
Model : MK 7850N/200
Size : 22.5 x 90 x 97 mm, 22.5 x 111 x 97 mm, 22.5 x 104 x 97 mm
• ตามมาตรฐาน IEC/EN 61 812-1
• ฟังก์ชัน 8 ประการที่สามารถตั้งค่าได้ผ่านสวิตช์หมุน:
• การหน่วงเวลาขณะเปิดเครื่อง (AV)
• การทำงานชั่วขณะเมื่อเปิด (EW)
• การหน่วงเวลาพัลส์ (IE)
• ฟังก์ชันแฟลชเริ่มต้นด้วยพัลส์ (BI)
• การหน่วงเวลาขณะปิดเครื่อง (RV)
• ฟังก์ชันการสร้างพัลส์ (IF)
• การทำงานชั่วขณะเมื่อหยุด (AW)
• การหน่วงเวลาในการเปิดและปิดเครื่อง (AV / RV)
• ช่วงเวลาที่สามารถตั้งค่าได้ 8 ช่วงจาก 0.02 วินาทีถึง 300 ชั่วโมง โดยตั้งค่าผ่านสวิตช์หมุน
• ช่วงแรงดันไฟฟ้า AC/DC 12 … 240 V
• หมายเลขสินค้า: 0056618
• วัสดุพลาสติกเทอร์โมพลาสติกที่มีพฤติกรรม V0 ตามมาตรฐาน UL Subject 94
Description
• According to IEC/EN 61 812-1
• 8 functions settable via rotational switch:
– Delay on energisation (AV)
– Fleeting on make (EW)
– Delayed pulse (IE)
– Flasher, start with pulse (BI)
– Delay on de-energisation (RV)
– Pulse forming function (IF)
– Fleeting on break (AW)
– Delay on energisation and de-energisation (AV / RV)
• 8 time ranges from 0.02 s to 300 h selectable via rotational switches
• Voltage range AC/DC 12 … 240 V
• With time interruption / time adding input for all functions
• Suitable for 2-wire proximity sensor control
• 2 changeover contacts, one programmable as instantaneous contact
• LED indicators for operation, contact position and time delay
• Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
• as option with pluggable terminal blocks for easy exchange of devices
– with screw terminals
– or with cage clamp terminals
• Article number: 0056618
• Thermoplastic with V0 behaviour according to UL subject 94
