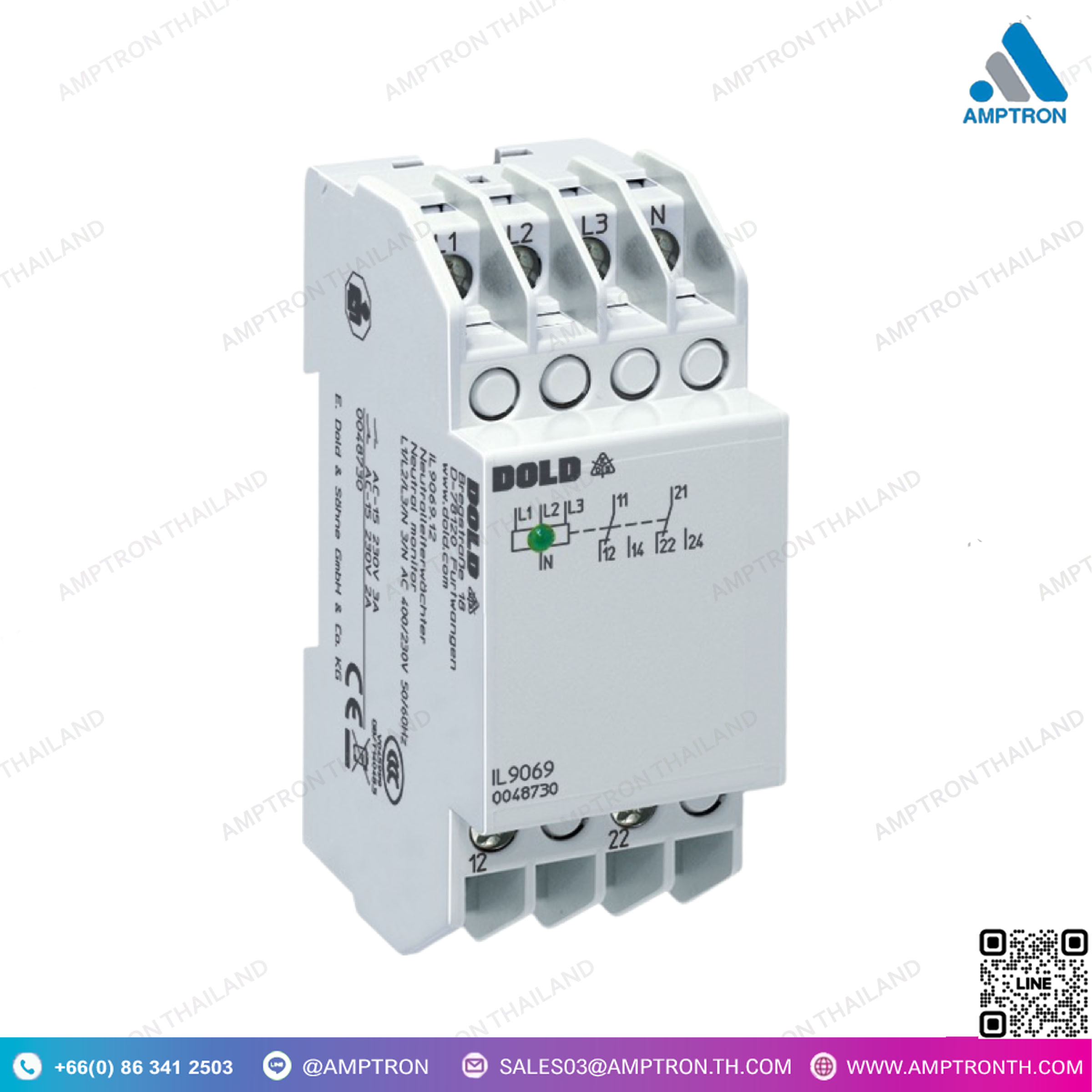

Neutral Monitor Varimeter IL 9069
เครื่องวัดความต้านทานดิน”
Brand : DOLD
Catalog : Google Drive
Model : IL 9069
Size : 35 x 90 x 59 mm
• ตามมาตรฐาน IEC/EN 60255-1
• การตรวจจับ
สายกลางหายไปในระบบ
สายกลางขาดที่ IL/SL 9069
สายกลางถูกแทนที่ด้วยเฟส
• การตรวจจับการล้มเหลวของเฟสแม้จะมีการตัดการเชื่อมต่อโหลด
• สำหรับระบบไฟฟ้าสามเฟส
• ปิดการทำงานเมื่อเกิดการทริป
• ไม่มีแรงดันเสริม
• มีสัมผัสการเปลี่ยนแปลง 2 ชุด
• หมายเลขสินค้า: 0054750
• ทำจากเทอร์โมพลาสติกที่มีคุณสมบัติ V0 ตามมาตรฐาน UL Subject 94
Description
• According to IEC/EN 60255-1
• Detection of
– Missing neutral in the system
– Broken neutral on IL/SL 9069
– Neutral exchanged against phase
• Detection of phase failure also with disconnected load
• For 3-phase systems
• De-energized on trip
• LED indicator for operation/state of output contacts
• Single phase connection possible
• Without auxiliary voltage
• 2 cangeover contacts
• Optionally with adjustable asymmetry detection and on delay
• Article number: 0054750
• Thermoplastic with V0 behaviour according to UL subject 94
