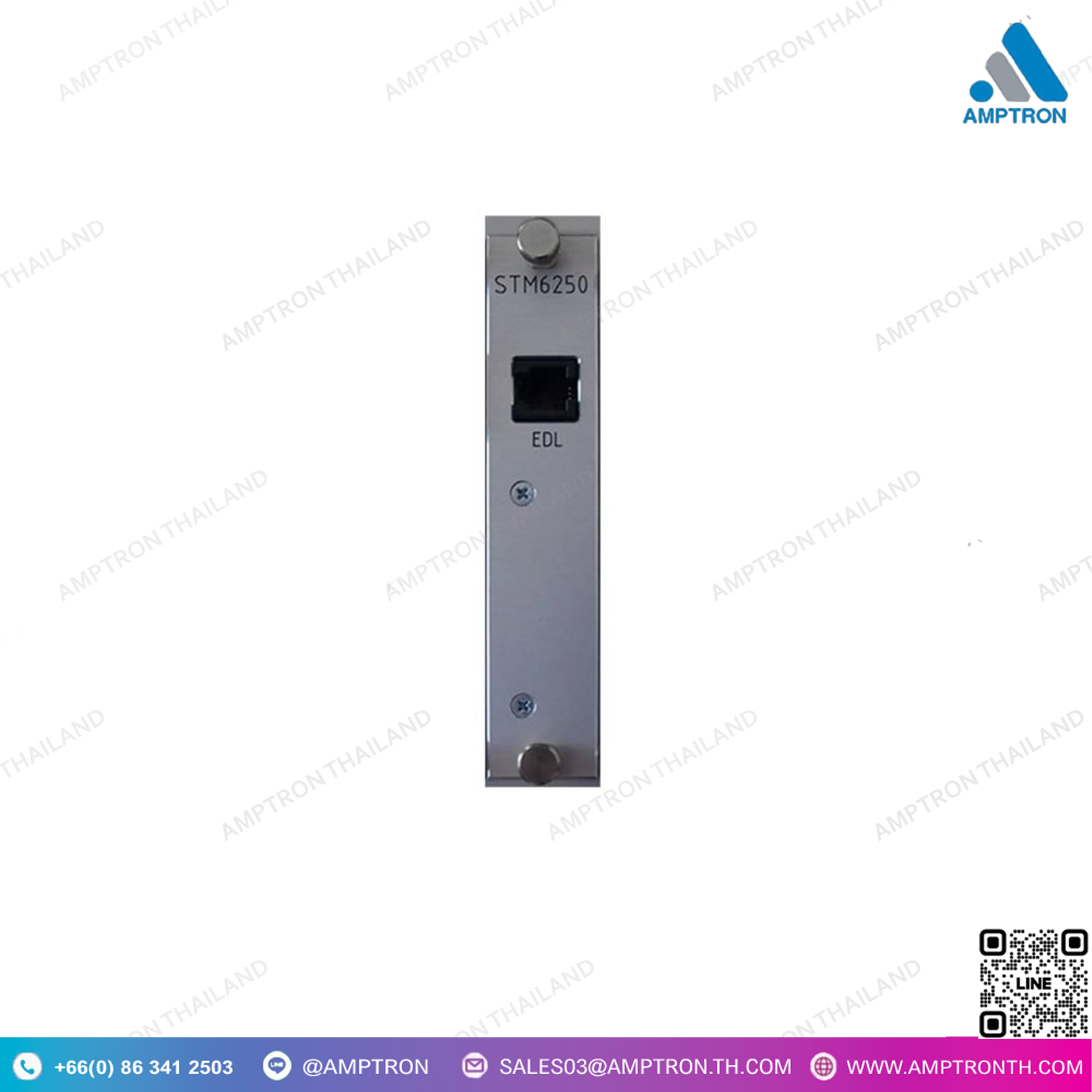

STM6250 Communication module EDL
Brand : ZERA
Catalog : Google Drive
Model : STM6250
STM6250 Communication Module EDL คือ โมดูลการสื่อสารที่ออกแบบมาเพื่อรองรับการเชื่อมต่อและแลกเปลี่ยนข้อมูล
ผ่าน EDL (Energy Data Link) ซึ่งเป็นโปรโตคอลที่ใช้ในการสื่อสารข้อมูลพลังงานระหว่างอุปกรณ์ต่าง ๆ
เช่น มิเตอร์พลังงาน, เครื่องวัดค่าต่าง ๆ หรือระบบการจัดการพลังงาน
• ฟังก์ชั่นหลัก
โมดูลขยายสำหรับการทดสอบการสื่อสาร
เหมาะสำหรับการทดสอบ Smart Meters
• ขอบเขตการใช้งาน
ใช้งานในระบบทดสอบมิเตอร์แบบประจำที่ของ ZERA
สามารถใช้โมดูลสูงสุด 6 ตัวต่อหนึ่งตำแหน่งการทดสอบ/มิเตอร์
ต้องใช้โมดูลหนึ่งตัวต่อหนึ่งตำแหน่งการทดสอบ/มิเตอร์
• คุณสมบัติพิเศษ
รองรับการสื่อสารที่อัตราบอด 300 Baud … 921600 Baud
โมดูลขยายสำหรับ STM6000 สำหรับการสื่อสารผ่านอินเตอร์เฟซ EDL
RJ10, 4-pole, 4p4c
DESCRIPTION
• Main functions
– Extension module for testing of communication
– Suitable for testing of Smart Meters
• Scope of application
– Application in stationary ZERA Meter Test Systems
– Max. 6 modules can be used per test position/meter
– One module is required per test position/meter
• Specials
– 300 Baud … 921600 Baud
– Extension module for STM6000 for communication via EDL interface
– RJ10, 4-pole, 4p4c
