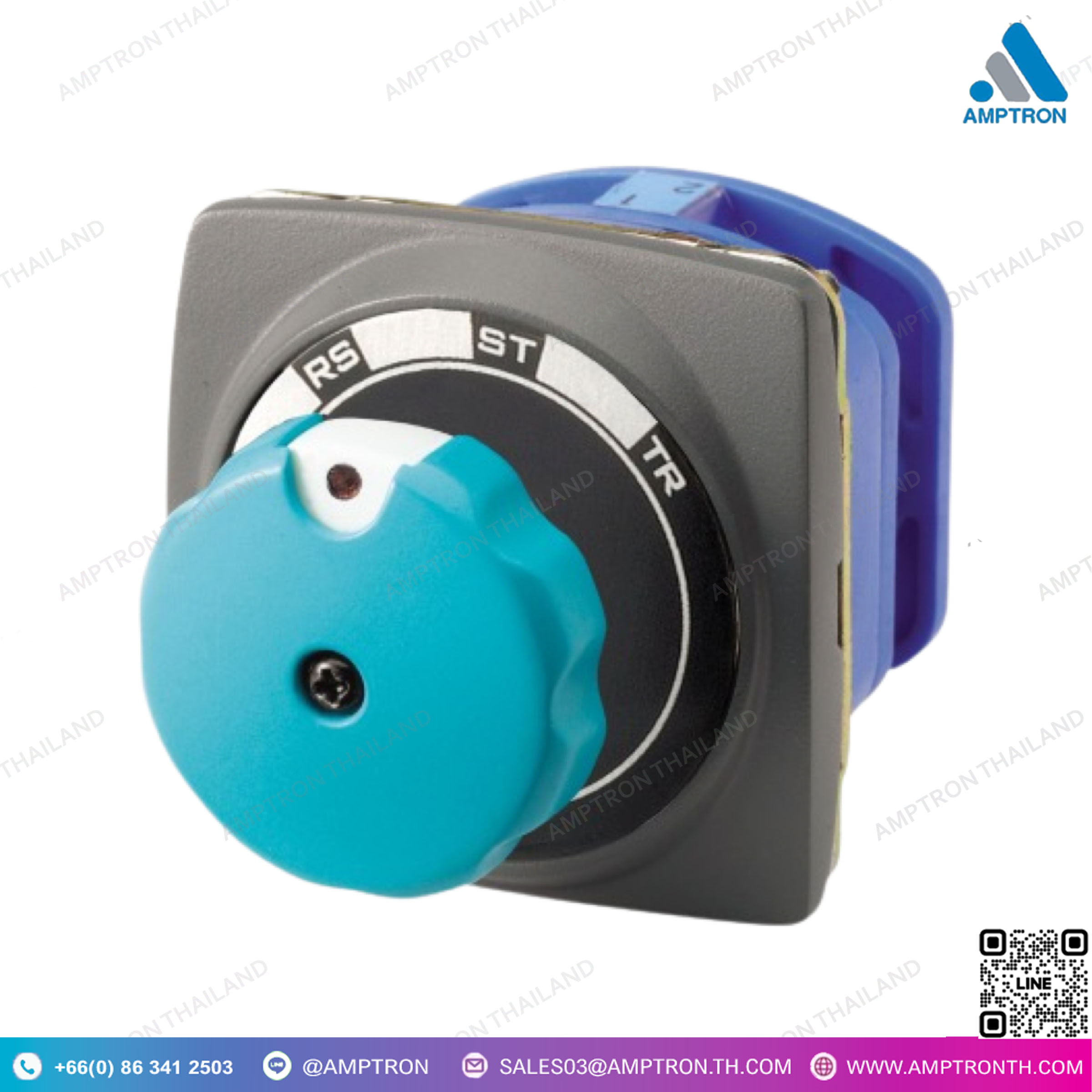

แคมซีเลคเตอร์สวิทส์ Cam Switch : 5A
Model : YS 5C2101-24MKB
Catalog : Google Drive
Brand : YONGSUNG
Size : N/A
• สวิตช์แคม 5A ถูกแยกส่วนการทำงานออกจากส่วนติดต่อ (ตัวถัง)
• พวกเขาได้รับการออกแบบโดยอัตโนมัติล็อคในครั้งเดียว
• มันถูกพัฒนาให้มีน้ำหนักเบาและขนาดเล็ก
• ทนแรงดันไฟฟ้า: AC 2,500V/นาที
• อุณหภูมิแวดล้อม: -20’c – +60’C
• ความชื้นสัมพัทธ์ : 45 – 85%
• เรซิ่น ABS ทนความร้อน
• อายุการใช้งานเครื่องกล: มากกว่า 500,000 ครั้ง
• มากกว่า 500,000 ครั้ง: มากกว่า 100,000 ครั้ง
• ความต้านทานการติดต่อ: ต่ำกว่า 50mQ ค่าเริ่มต้น
• ความต้านทานการฉนวน: เหนือ 100MQ DC 500V เม็ก
Description
• Cam switch 5A are separated the operating part from the contact part (body)
• They are designed automatically locking at once.
• It is developed for light weight and small size.
• Withstand voltage : AC2,500V/min
• Ambient temperature : -20’c – +60’C
• Relative humidity : 45 – 85%
• Heat resistance ABS resin
• Mechanical lifetime : Above 500,000 times
• Above 500,000 times : Above 100,000 times
• Contact Resistance : Below 50mQ, initial value
• Insulation resistance : Above 100MQ DC 500V. Meg
