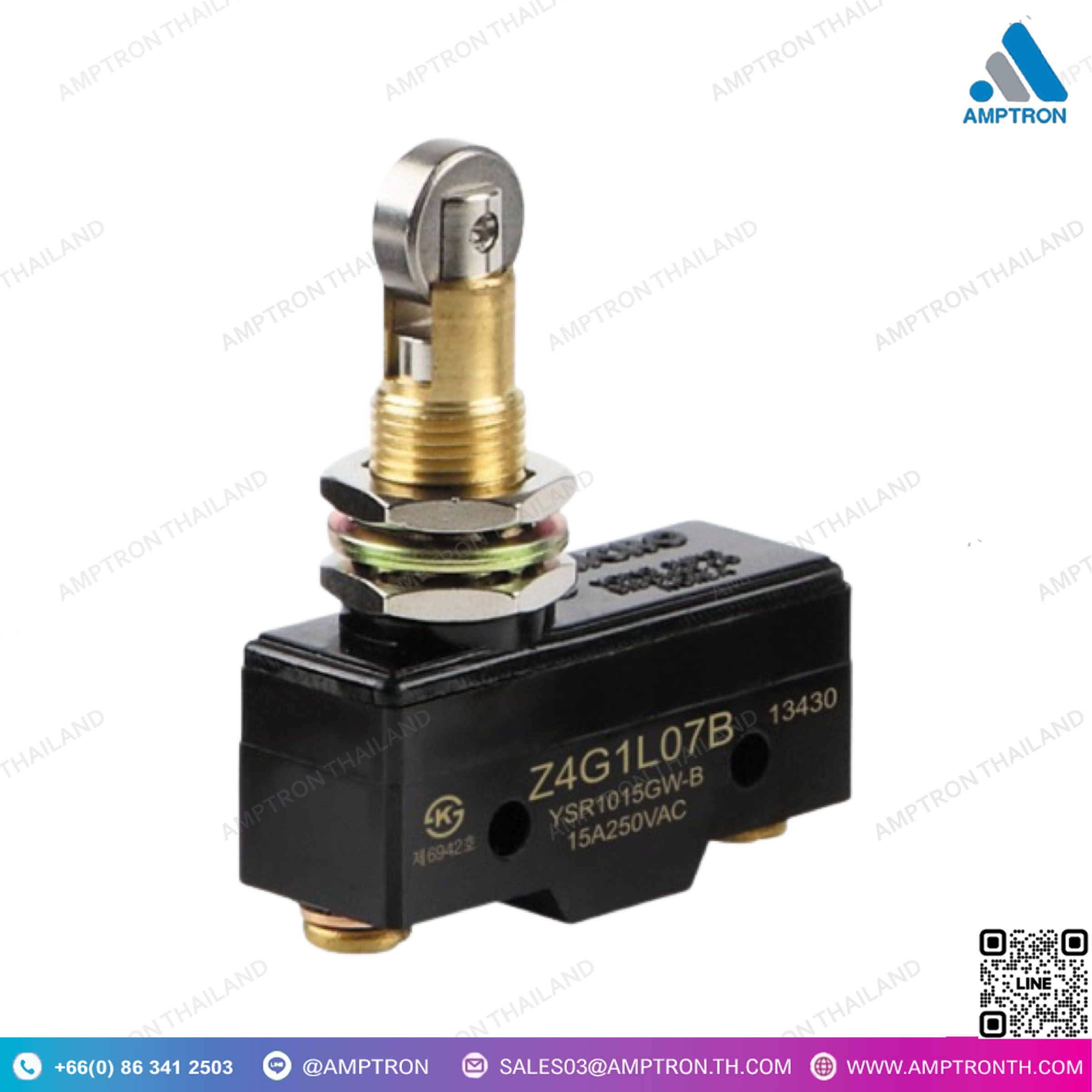

Alternating Current Micro Switch (Z Type)
Model : YS R1015GW-B
Catalog : Google Drive
Brand : YONGSUNG
Size : 17 x 49.2 x 19.9 mm
• สวิตช์ไมโครความน่าเชื่อถือสูง
• ความจุสวิตช์ AC 250V 15A
• เหมาะสำหรับการใช้งานที่มีประสิทธิภาพสูง
• ตัวเหนี่ยวนำประเภทต่างๆ เช่น ชนิดปุ่มกด ชนิดของบานพับ เป็นต้น
• ฉนวนกันความร้อนไฟฟ้าที่ดีเยี่ยมเนื่องจากแนวโน้มที่ดีของความร้อนทนควันและโค้งทน
• ความต้านทานการฉนวน: เหนือ 100MQ DC 500V เม็ก
• ทนแรงดันไฟฟ้า: AC 1,500V/นาที (50Hz-60Hz)
• อุณหภูมิแวดล้อม: -25’C – +55’C
• ความชื้นสัมพัทธ์ : 45% – 85%
• เรซิ่นฟีนอลแบบตั้งอุณหภูมิ
Description
• High-Reliability micro switch
• AC 250V 15A switching capacity
• Suitable for high performance use
• Various kinds of actuator such as push button type, hinge lever type etc,
• Excellent electric insulation due to good tendency of heat-resistant, smoke-resistant and arc-resistant.
• Insulation resistance : Above 100MQ DC 500V. Meg
• Withstand voltage : AC 1,500V/min (50Hz-60Hz)
• Ambient temperature : -25’C – +55’C
• Relative humidity : 45% – 85%
• Thermosetting Phenol resin
