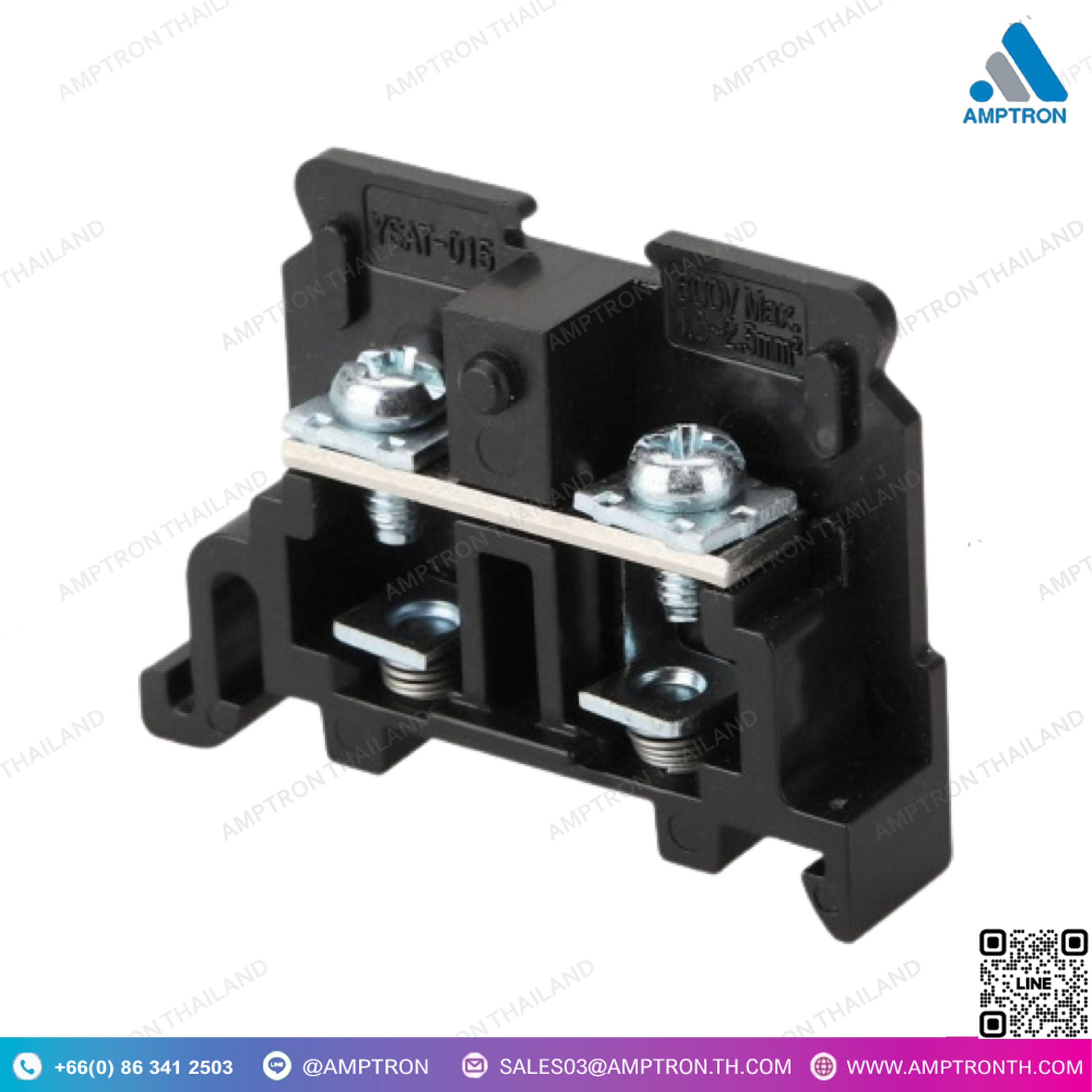

Assembly Terminal Block
Model : YS AT015-01SA
Catalog : Google Drive
Brand : YONGSUNG
Size : N/A
• เนื่องจากโครงสร้างที่ป้องกันปรากฏการณ์ slackness ของสกรูเทอร์มินัลเกิดขึ้นระหว่างการเชื่อมต่อวงจร
นอกจากนี้ยังทำได้สะดวกในการใช้เทอร์มินัลไร้ใบพัด (ชนิด O และ Y)
• บล็อกเทอร์มินัลประเภทการประกอบสามารถประกอบเทอร์มินัลชนิดต่างๆ ที่มีรูปร่างและความจุกระแสที่แตกต่างกัน
ตามคำสั่งและหมายเลขที่ต้องการ
• ประหยัดมากโดยไม่มีเทอร์มินัลว่างเมื่อสามารถแนบได้โดยการตั้งค่าบล็อกเทอร์มินัลปัจจุบัน
ไม่ ตามการออกแบบแต่ละแบบ
• แรงดันฉนวนที่กำหนดไว้: MAX 600VAC/DC
• อุณหภูมิแวดล้อม: -20’c – +55’C
• ความชื้นสัมพัทธ์ : 45 – 85%
• เรซิ่น ABS สารกันไฟ
DESCRIPTION
• As the structure which prevents slackness phenomenon of terminal screw occurred during circuit connecting,
it is also conveniently made to use solderless terminal (O and Y type).
• Assembly type terminal block can be assembled various kinds of terminals with different shape & current capacity
as required order and number.
• It is very economical with no void terminal as once attachment is possible by setting current & termial block
No. according to each designing.
• Rated insulation voltage : MAX 600V AC/DC
• Ambient temperature : -20’c – +55’C
• Relative humidity : 45 – 85%
• Flame retardant ABS resin
