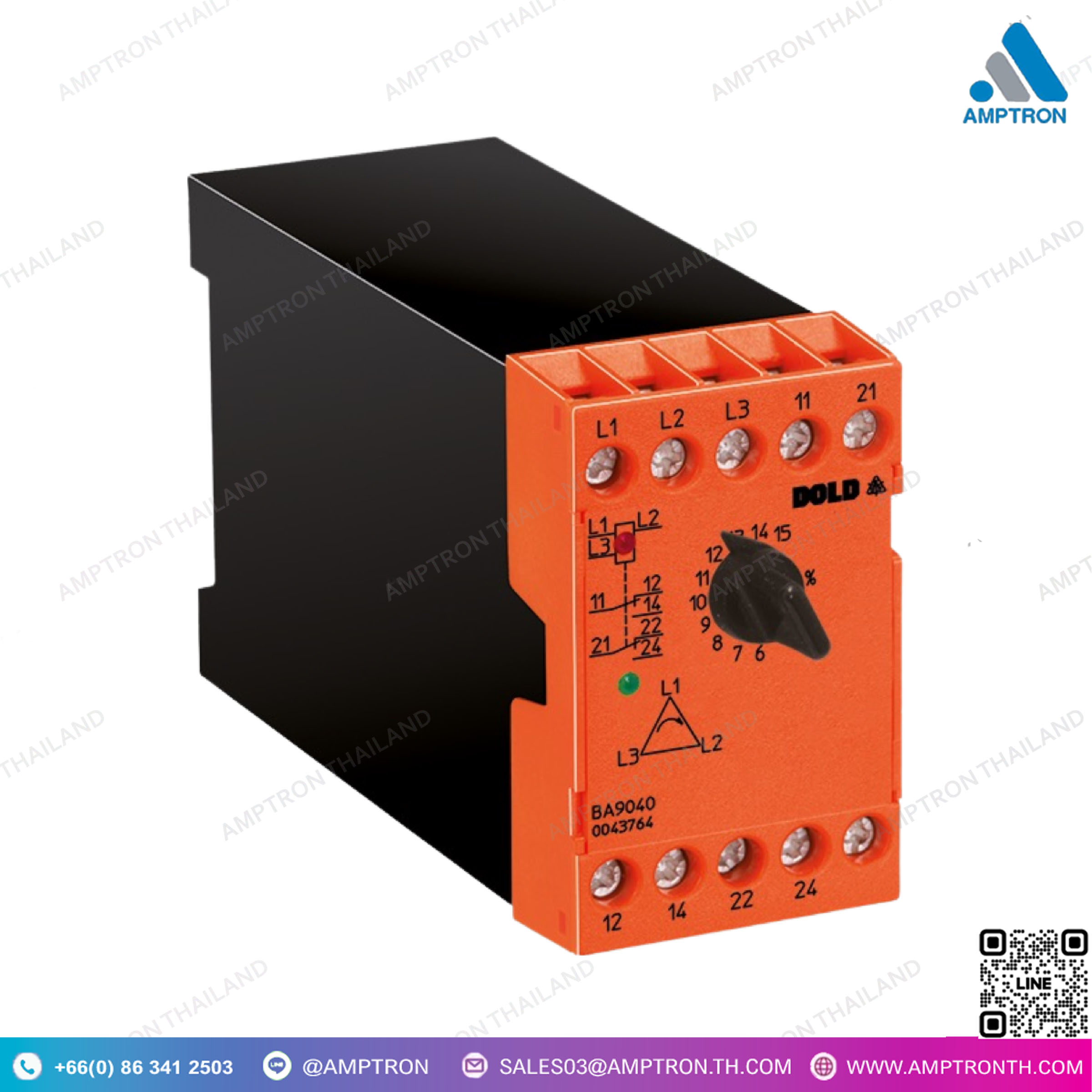

Asymmetry Relay BA9040
Brand : DOLD
Catalog : Google Drive
Model : BA 9040
Size : 45 x 74 x 133 mm
• ตาม IEC / EN 60255-1
• การรับรู้ของ
– ความไม่สมดุลของแรงดันไฟฟ้า
– ความล้มเหลวของเฟส
– การตอบรับแรงดันไฟฟ้า
– ทางเลือกกับการรับรู้ลำดับเฟส
• ตัวเลือกพร้อมกับการหน่วงเวลาการตอบสนองที่ปรับได้
• 2 จอแสดงผล LED สําหรับแหล่งจ่ายไฟและสถานะการติดต่อ
• แรงดันที่ระบุ: 3 AC 400 V
• ช่วงแรงดันไฟฟ้า: 0.8 … 1.1 ยูเอ็น
• ความถี่จำเพาะ: 50 / 60 Hz
• เทอร์โมพลาสต์ที่มีพฤติกรรม V0 ตามหัวข้อ UL 94
Description
• According to IEC/EN 60255-1
• Recognition of
– Voltage asymmetry
– Phase failure
– Voltage feedback
– Optionally with phase sequence recognition
• Optionally with adjustable response delay
• 2 LED displays for power supply and state of contact
• Wire connection: also 2 x 1.5 mm 2 stranded ferruled, or 2 x 2.5 mm 2 solid DIN 46228-1/-2/-3/-4
• As option with pluggable terminal blocks for easy exchange of devices
– With screw terminals
– Or with cage clamp terminals
Input
• Nominal voltage : 3 AC 400 V
• Voltage range: 0.8 … 1.1 UN
• Nominal frequency: 50 / 60 Hz
• Article number : 0043764
• Thermoplast with V0 behaviour according to UL subject 94
