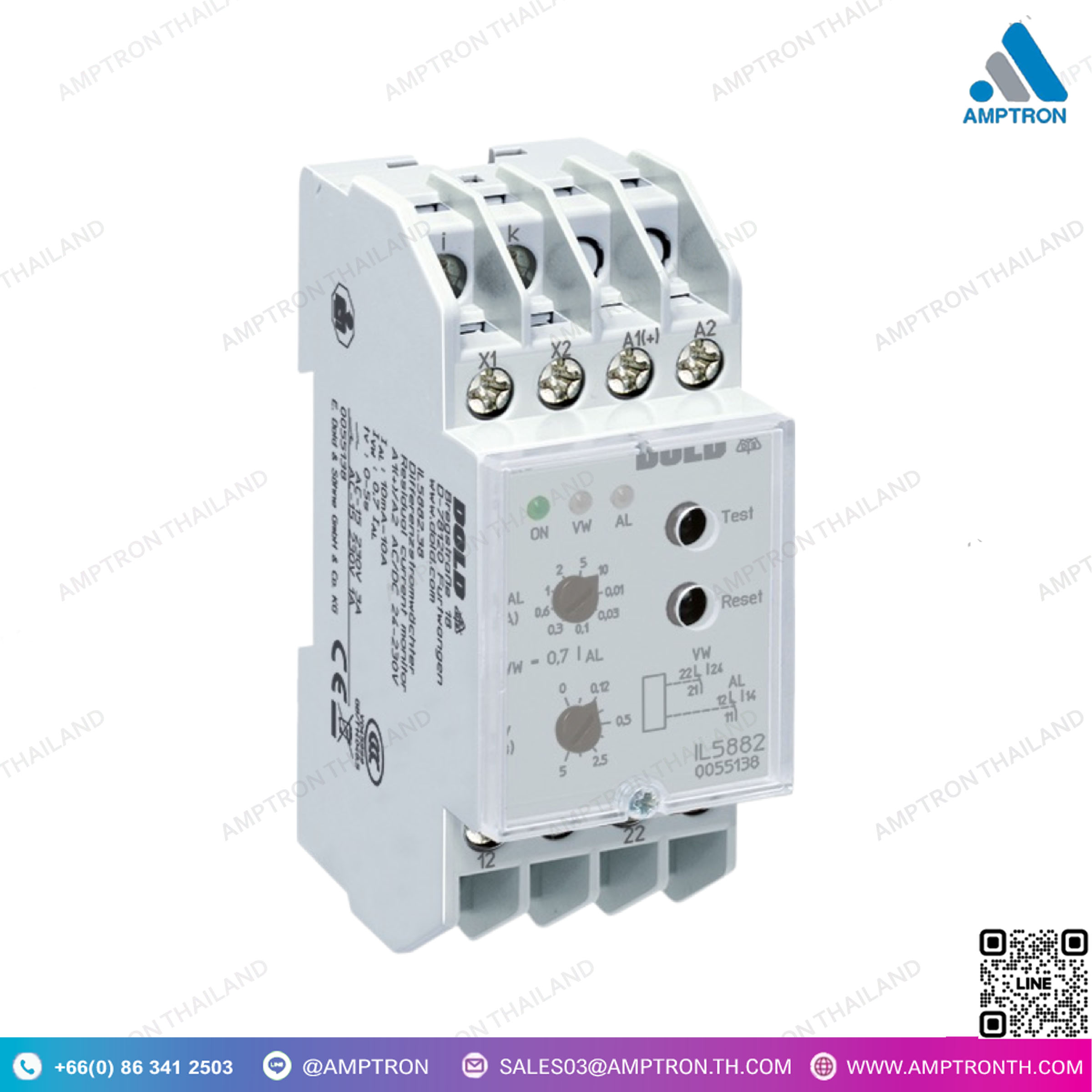

Current Monitor Varimeter RCM Residual IL 5882
ตรวจจับไฟรั่วเอซีดีซี เกินกว่ากำหนด
Brand : DOLD
Catalog : Google Drive
Model : IL 5882
Size : 35 x 90 x 63 mm
• According to IEC/EN 62020
• สําหรับ AC และ pulsating DC currant ประเภท A ถึง IEC/TR 60755
• 9 tripping 10 mA ถึง 10 A หรือจาก 10 mA … 30 A
• ช่วงความถี่ 20… 2000 เฮิรตซ์
• การเลือกการรีเซ็ตด้วยตนเองหรืออัตโนมัติ
• พร้อมคำเตือนล่วงหน้า
• ด้วยปุ่มทดสอบและตั้งค่าใหม่
• Broken wire detection
• เวลาตอบสนองสั้น ๆ
• With adjustable delay
• หมดพลังงานในการเดินทาง
• LED indication for auxiliary supply and state of contact
• 2 x 1 changeover contact
• Article number: 0066743
• Thermoplastic with V0-behaviour according UL subject 94
Description
• According to IEC/EN 62020
• For AC and pulsating DC currants Type A to IEC/TR 60755
• 9 tripping values from 10 mA to 10 A or from 10 mA … 30 A
• Frequency range 20 … 2000 Hz
• Selection of manual or automatic reset
• With prewarning
• With test and reset button
• Broken wire detection
• Short reaction time
• With adjustable delay
• De-energized on trip
• LED indication for auxiliary supply and state of contact
• 2 x 1 changeover contact
• Article number: 0066743
• Thermoplastic with V0-behaviour according UL subject 94
