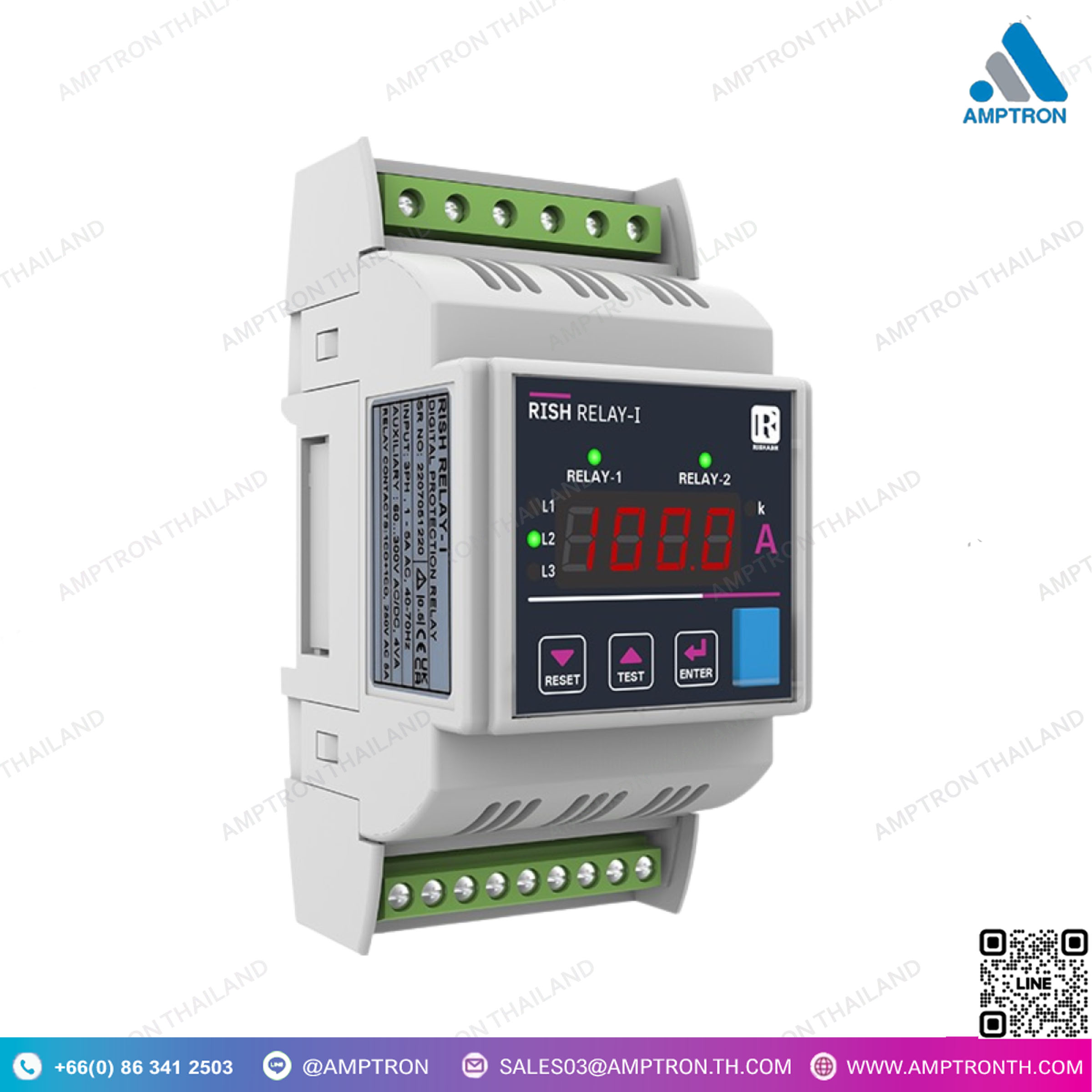

Digital Current Monitoring Relay
รีเลย์ตรวจสอบกระแสแบบดิจิตอล
Brand : RISHABH
Catalog : Google Drive
Model : Rish Relay-I
Size : Width 60.5 mm
• เกินการป้องกันปัจจุบันด้วยเส้นโค้ง IDMT
• ภายใต้การป้องกันในปัจจุบัน
• การป้องกันการสูญเสียในปัจจุบัน
• การป้องกันความไม่สมดุลในปัจจุบัน
• 4 หลัก ultra bright 7 ส่วนแสดงผล LED
• Trip relay cum DPM กับคลาส 0.5
• 4LED indications – LED indications สำหรับสถานะ Relay-1 และ Relay-2
– เครื่องหมายทริปจะแสดงบนจอแสดงผล 4 ดิจิตอล
– LED แบบสองสีสำหรับแสดงสถานะต่อเฟส สีเขียวสำหรับ
สภาพปกติและสีแดงสำหรับสภาพที่ผิดพลาด”””
• ผู้ใช้สามารถเลือก 3 เฟส 3W หรือ 4W
– ผู้ใช้สามารถเขียนโปรแกรมการเชื่อมต่อเครือข่ายเป็นเครือข่าย 1P2W / 3P4W / 3P3W โดยใช้ front
ปุ่มพิมพ์พาเนล”
• การปฏิบัติตามมาตรฐานความปลอดภัยระหว่างประเทศ IEC 61010-1-2010
Description
• Over current protection with IDMT curve
• Under current protection
• Current loss protection
• Current unbalance protection
• 4 Digits ultra bright Seven segment LED Display
• Trip relay cum DPM with Class 0.5
“• 4LED indications- LED indication for Relay-1 and Relay-2 status .
– Trip indication are displayed on 4 Digit display.
– Dual color LED for per phase indication green color for
normal condition and Red color for faulty condition.”
• User selectable 3 phase 3W or 4W
– User can on site program the network connection as either 1P2W / 3P4W / 3P3W network using front
panel keys
• Compliance to International Safety standard IEC 61010-1-2010
