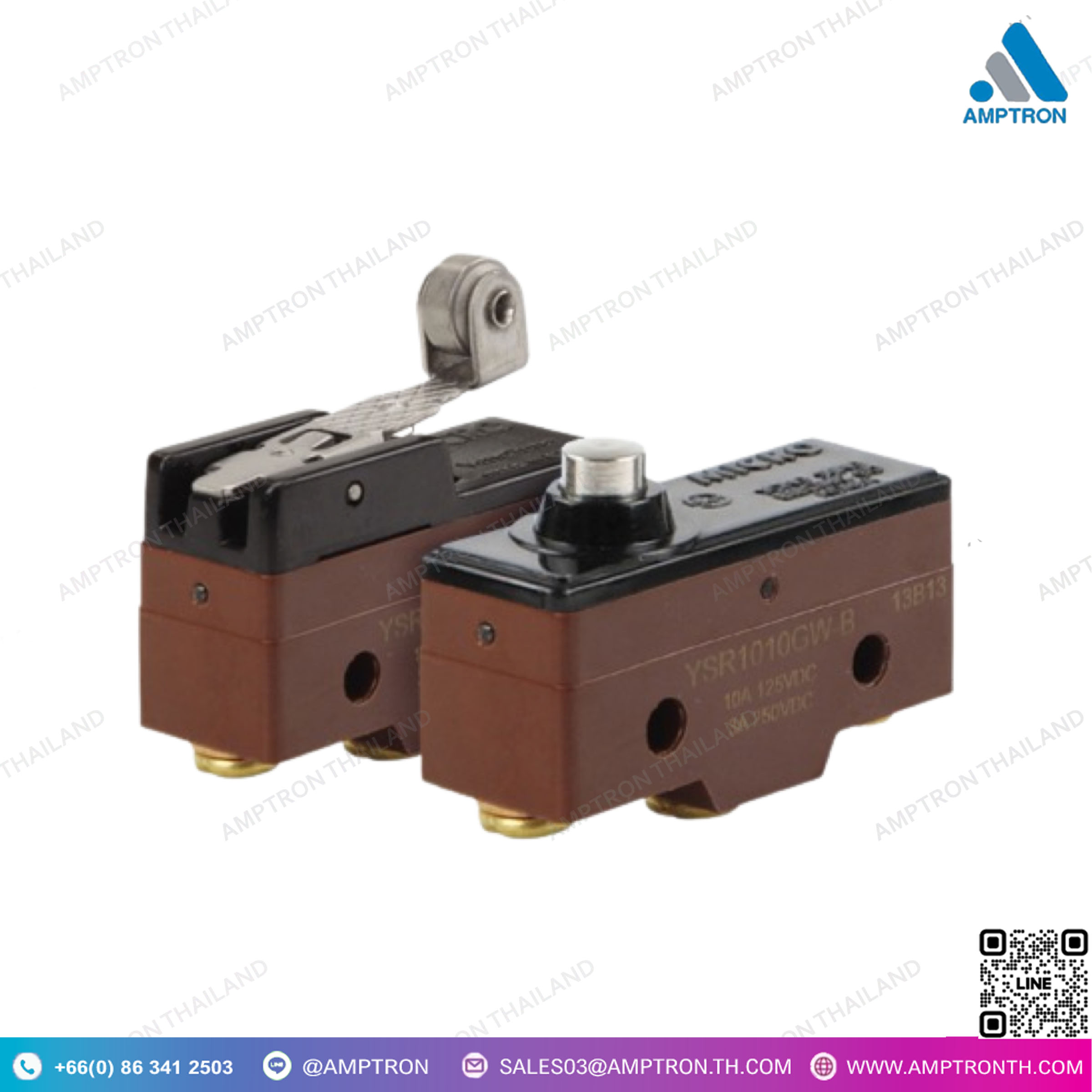

Direct Current Micro Switch (Z Type)
Model : YS R1110GW-B
Catalog : Google Drive
Brand : YONGSUNG
Size : 17 x 49.2 x 19.9 mm
• เป็นไมโครสวิทช์กระแสตรงที่ถูกสร้างด้วยวงจรแม่เหล็กไฟฟ้า
• แม่เหล็กถาวรถูกสร้างขึ้นในสวิทช์เพื่อเอาส่วนโค้งออกจากส่วนสัมผัสได้อย่างมีประสิทธิภาพ
• เพื่อป้องกันสวิตช์จากโค้ง ระยะห่างระหว่างผนังกั้นและระยะระหว่างคอนแทคเลนส์จะกว้างขึ้น
• มีการติดตั้งช่องระบายอากาศเพื่อขับแก๊สที่เกิดจากโค้ง
• ความต้านทานการฉนวน: เหนือ 100MQ DC 500V เม็ก
• ทนแรงดันไฟฟ้า: AC 1,500V/นาที (50Hz-60Hz)
• อุณหภูมิแวดล้อม: -25’C – +55’C
• ความชื้นสัมพัทธ์ : 45% – 85%
Description
• It is a direct current micro switch built in with demagnetizing circuit.
• Permanent magnet is built in the switch to remove arc effectively from the contact parts.
• To protect the switch from arc, the distance between the partition walls and the distance between contacts are widen.
• An air vent is installed to expel the gas generated by arc.
• Insulation resistance : Above 100MQ DC 500V. Meg
• Withstand voltage : AC 1,500V/min (50Hz-60Hz)
• Ambient temperature : -25’C – +55’C
• Relative humidity : 45% – 85%
