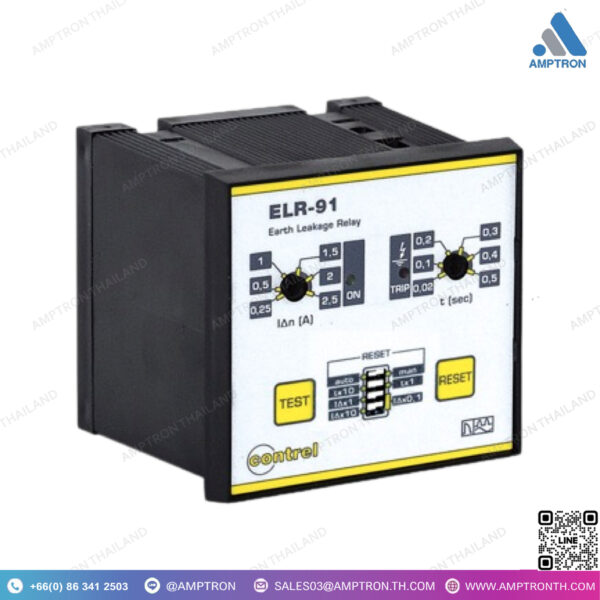

รีเลย์ตรวจจับไฟรั่ว Earth Leakage Relay รุ่น ELR-91
Brand : CONTREL
Catalog : Google Drive
Model : ELR-91 48, ELR-91 240, ELR-92 48, ELR-92 110, ELR-92 415
Size : 72×72 mm.
• รีเลย์ป้องกันกระแสไฟรั่ว
• เซนเซอร์กระแสไฟรั่ว CT-1
• พลังงาน : 3 VA
• ประเภทการปรับตั้งกระแสไฟที่เหลือ : 0.025…25 A
• ประเภทการปรับตั้งเวลาในการหน่วงกระแสไฟที่เหลือ : 0.02…5 วินาที
• ชั้นการป้องกันกระแสไฟรั่ว : ประเภท A
• รีเลย์เอาต์พุต : 1 รีเลย์สลับ (TRIP) 5 A (240 VAC)
• ตู้ฝัง 72×72 มม. พร้อมฝาป้องกันใส
• ระดับการป้องกัน : ขั้วต่อ IP20, ด้านหน้า IP40 พร้อมฝาปิด
“• มาตรฐาน : IEC/EN 61010
IEC/EN 61000-6-2EN
IEC/EN 61000-6-3
IEC/TR 60755
CEI EN 60947-2 Annex M”
DESCRIPTION
• Product type : Residual current protection relay
• Current sensors compatibility : CT-1 earth leakage current sensor
• Power consumption : 3 VA
• Residual earth-leakage adjustment type : 0.025…25 A
• Residual earth-leakage time delay adjustment type : 0.02…5 s
• Earth-leakage protection class : Type A
• Output relays : 1 changeover (TRIP) 5 A (240 VAC)
• Flush mount 72x72mm housing with transparent cover
• Degree of protection: IP20 terminals, IP40 on front with cover
• Display indications : Green LED (power ON)
Red LED (TRIP)”
• Mounting mode : Flush mount
• Standards IEC/EN 61010
IEC/EN 61000-6-2EN
IEC/EN 61000-6-3
IEC/TR 60755
CEI EN 60947-2 Annex M”
• IP degree of protection : IP40 front, IP20 terminals
• Operating temperature : -10…+60 °C
