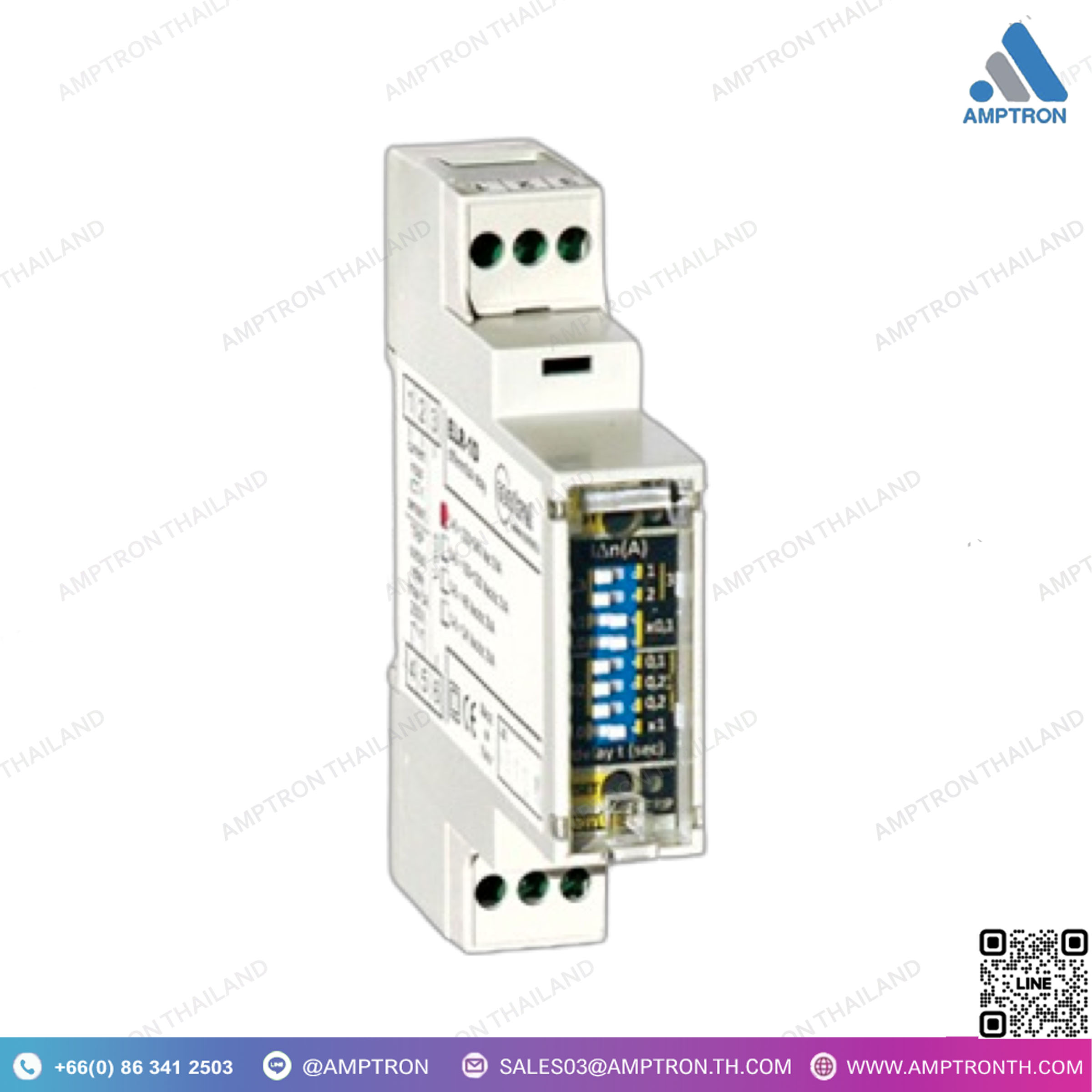

รีเลย์ป้องกันไฟรั่ว 1 ระดับ รุ่น ELR-1D
Brand : CONTREL
Catalog : Google Drive
Model : ELR-1D 24, ELR-1D 48, ELR-1D 110, ELR-1D 230
Size : 17.5x90x74 mm
• Product type: รีเลย์ป้องกันกระแสไฟรั่ว
• Current sensors compatibility : เซนเซอร์กระแสไฟรั่ว CT-1
• Power consumption: 3 VA
• ประเภทการปรับตั้งการรั่วของกระแสไฟที่เหลือ : 0.030…30 A
• ประเภทการปรับตั้งเวลาในการหน่วงของกระแสไฟที่เหลือ : 0.02…5 วินาที
• ชั้นการป้องกันกระแสไฟรั่ว : ประเภท A
• 1 การสลับ (TRIP) 5 A (240 VAC)
• การแสดงผล : LED สีเขียว (พลังงานเปิด)
LED สีแดง (TRIP)
“• วิธีการติดตั้ง : ราง DIN 1 โมดูล
• มาตรฐาน : IEC/EN 61010
IEC/EN 61000-6-2EN
IEC/EN 61000-6-3
IEC/TR 60755″
• ระดับการป้องกัน IP : IP40 ด้านหน้า, IP20 ขั้วต่อ
DESCRIPTION
• Product type : Residual current protection relay
• Current sensors compatibility : CT-1 earth leakage current sensor
• Power consumption : 3 VA
• Residual earth-leakage adjustment type : 0.030…30 A
• Residual earth-leakage time delay adjustment type: 0.02…5 s
• Earth-leakage protection class : Type A
• 1 changeover (TRIP) 5 A (240 VAC)
“• Display indications : Green LED (power ON)
Red LED (TRIP) “
• Mounting mode : DIN rail 1 module
“• Standards IEC/EN 61010
IEC/EN 61000-6-2EN
IEC/EN 61000-6-3
IEC/TR 60755″
• IP degree of protection : IP40 front, IP20 terminals
• Operating temperature : -10…+60 °C
