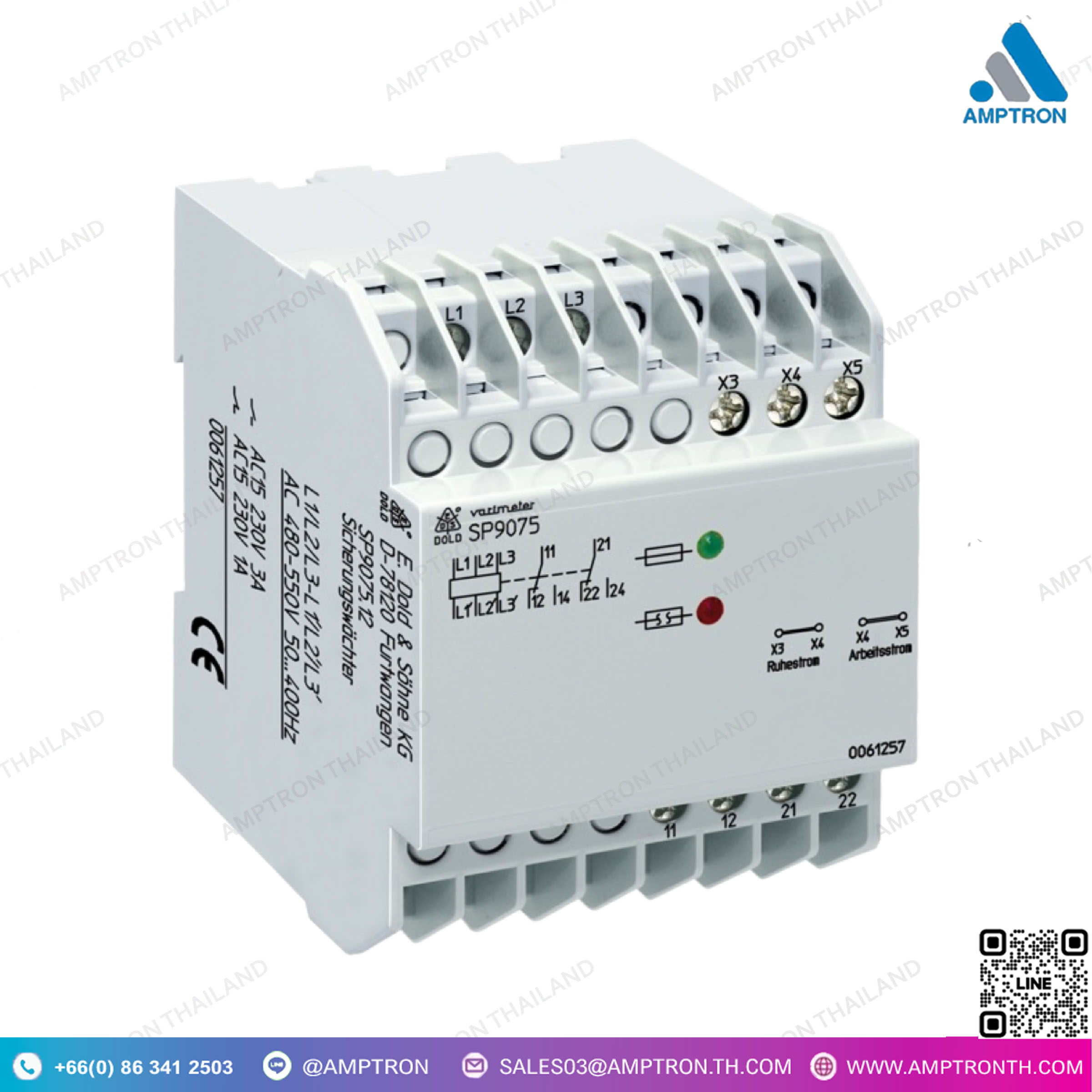

Fuse Monitor SP 9075 Varimeter
Brand : DOLD
Catalog : Google Drive
Model : SP 9075
Size : 70 x 90 x 98 mm
• ตามมาตรฐาน IEC/EN 60255-1
• สามารถตรวจจับความล้มเหลวของฟิวส์ในระบบไฟฟ้าสามเฟสได้สูงสุดถึง 3 AC 690 V
• สามารถใช้ได้กับฟิวส์ทุกรูปแบบและขนาด
• ไม่ขึ้นอยู่กับลำดับเฟส
• ส่งสัญญาณแม้ในกรณีที่โหลดถูกปิด
• ไม่มีความผิดปกติในกรณี
• ระบบไฟฟ้าที่ไม่สมมาตร
• ระบบไฟฟ้าที่มีคลื่นฮาร์มอนิก
• มอเตอร์ที่ผลิตการตอบสนองกลับ
• เวลาตอบสนองสั้นกว่าการใช้เบรกเกอร์มอเตอร์
• แสดงสถานะด้วย LED สีเขียวสำหรับฟิวส์ที่ไม่เสีย
• แสดงสถานะด้วย LED สีแดงสำหรับฟิวส์ที่เสีย
• หมายเลขสินค้า: 0041517
• ผลิตจากเทอร์โมพลาสติกที่มีคุณสมบัติ V0 ตามมาตรฐาน UL Subject 94
Description
• According to IEC/EN 60255-1
• Recognizes fuse failures in three-phase mains up to 3 AC 690 V
• Can be used for all types and sizes of fuses
• Independent of phase sequence
• Signals even if loads are switched off
• No malfunction on
– Asymmetrical mains
– Mains with harmonic waves
– Motors producing feedback
• Shorter response time than with motor circuit-breakers
• Green LED for intact fuses
• Red LED for fuse failure
• Article number: 0041517
• Thermoplastic with V0 behaviour according to UL subject 94
