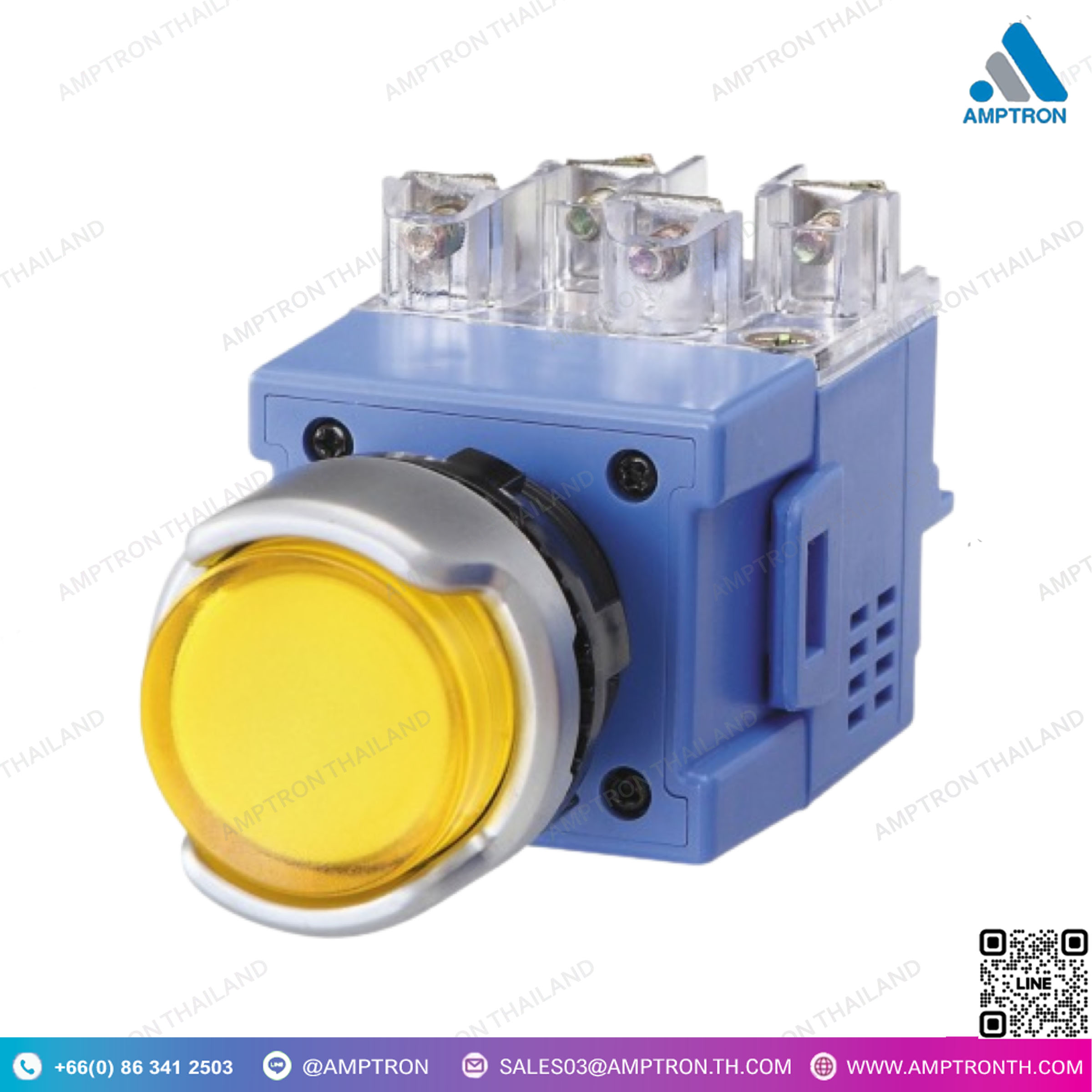

Illuminated Push Button Switch (B Type)
Model : YS BPBL 2-O06R, YS BPBL2-AL11R
Catalog : Google Drive
Brand : YONGSUNG
Size : N/A
• ส่วนปฏิบัติการสามารถแยกออกจากส่วนติดต่อได้ ส่วนติดต่อประกอบด้วยโครงสร้างย้อนกลับช่วงเวลา
• ใช้แหวนล็อคแยกต่างหาก
• ส่วนติดต่อ (Contact Part) ประกอบด้วยโครงสร้างการเปลี่ยนโมเมนต์ สามารถเปลี่ยนเป็นแผ่นสีเพิ่มเติมได้
• ประเภทการแยกแบบสัมผัสเดียวและง่ายต่อการซ่อมแซมและเปลี่ยน
• สามารถตรวจสอบว่าดำเนินการหรือไม่ และการดำเนินการชั่วขณะสามารถป้องกันการติดต่อจากการเผาไหม้ที่เกิดจาก Arc
• โดยการดำเนินการสวิตช์สปริง สวิตช์ที่แม่นยำและการใช้งานที่กระแสไฟฟ้าต่ำเป็นไปได้
• ระยะเวลาการตรวจสอบที่สั้นลงของวงจรสวิตช์เนื่องจากการตรวจสอบภาพของชิ้นส่วนสวิตช์
• ความต้านทานการฉนวน: เหนือ 100MQ DC 500V เม็ก
• ทนแรงดันไฟฟ้า: AC 2,500V/นาที (50-60Hz)
• อุณหภูมิแวดล้อม: -20’C – 55’C
• ความชื้นสัมพัทธ์ : 45% – 85%
• โพลีคาร์บอเนตเรซิน
Description
• The operating part can be separated from the contact part, Contact Part is consist of a moment reversal structure,
• Using separate Lock Ring.
• Contact Part is consist of a moment reversal structure. It can be changed to additional color plate.
• One-touch separation type and easy for repair and replacement.
• Can verify whether operated or not, and moment operation can protect contact from burning caused by Arc.
• By spring switching operation, exact switching and use at low current are possible.
• Shortened checking time of switch circuit due to visual checking of switching part.
• Insulation resistance : Above 100MQ DC 500V. Meg
• Withstand voltage : AC 2,500V/min (50-60Hz)
• Ambient temperature : -20’C – 55’C
• Relative humidity : 45% – 85%
• Polycarbonate resin
