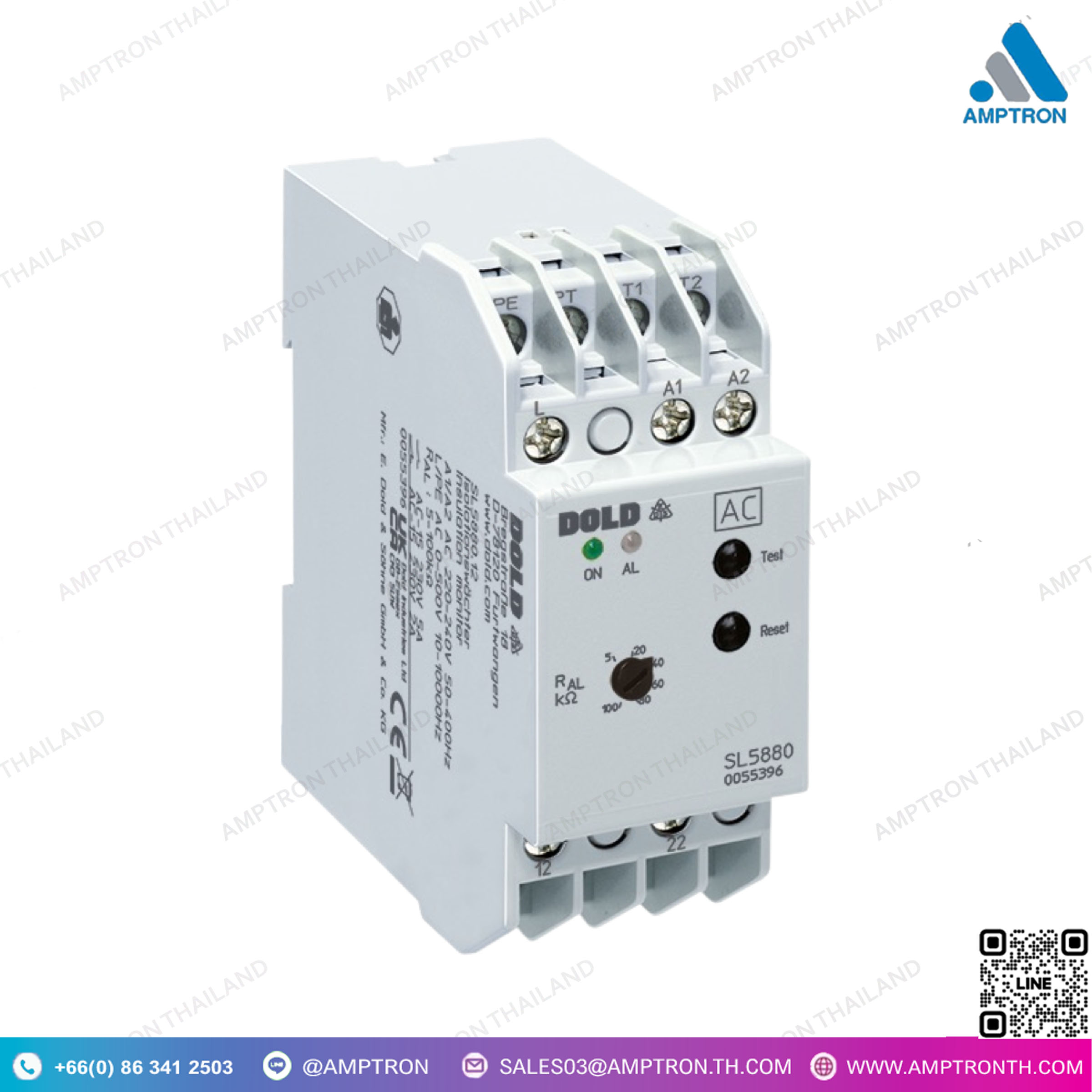

Insulation Monitor Varimeter IMD IL 5880
ตรวจจับฉนวนเอซี ตำกว่ากำหนด
Brand : DOLD
Catalog : Google Drive
Model : IL 5880
Size : 35 x 90 x 61 mm.
• According to IEC/EN 61557-8
• สำหรับระบบ AC แบบเดี่ยวและแบบ 3 เฟส จนถึง 0… 500 V และ 10 … 10000 เฮิรตซ์
• ปรับค่า RAL ของ 5… 100 กิโล หรือ 10 กิโล… 500 500
• มอนิเตอร์ยังตัดการเชื่อมต่อระบบแรงดันไฟฟ้า
• หมดพลังงานในการเดินทาง
• ตั้งค่าด้วยตนเองและตั้งค่าอัตโนมัติใหม่
• การเชื่อมต่อของปุ่มทดสอบภายนอกและการรีเซ็ตเป็นไปได้
• ที่อยู่ติดต่อแบบเปลี่ยนหน้า 2 รายการ
– ค่าเตือนล่วงหน้าที่ปรับได้ 10 K 5 … 5 Mω
– Output function programmable
• Article number: 0053378
• Thermoplastic with V0 behavior according to UL Subject 94
Description
• According to IEC/EN 61557-8
• For single and 3-phase AC-systems up to 0 … 500 V and 10 … 10000 Hz
• Adjustable tripping value RAL of 5 … 100 kΩ or 10 … 500 kΩ
• Monitors also disconnected voltage systems
• De-energized on trip
• Auxiliary voltage Measuring Circuit and output contacts are galvanically separated
• Manual and auto reset
• With test and reset button
• Connections of external test and reset buttons possible
• LED indicators for operation and alarm
• 2 changeover contacts
– Adjustable prewarning value 10 kΩ … 5 MΩ
– Output function programmable
• Article number: 0053378
• Thermoplastic with V0 behavior according to UL Subject 94
