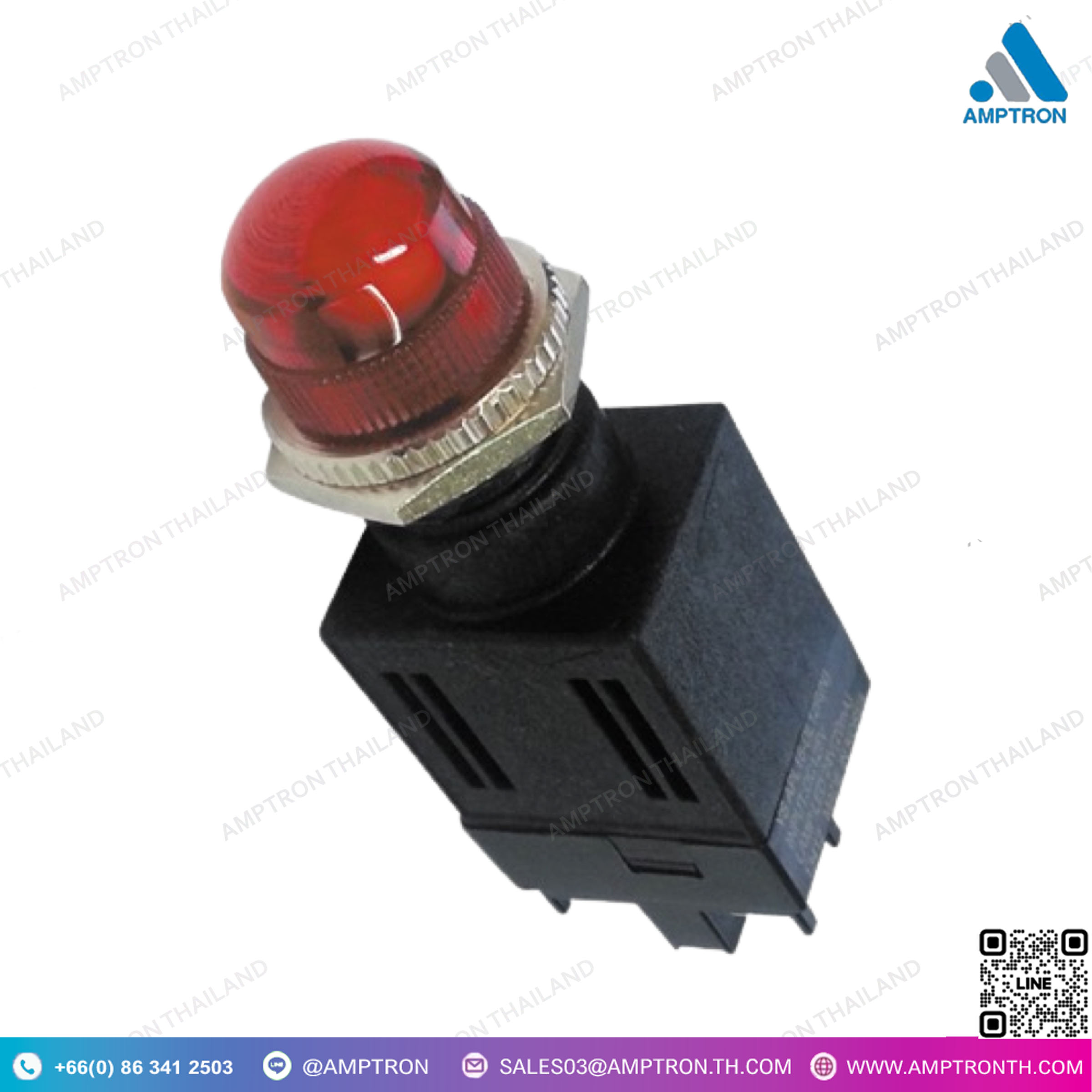

Lamp (APL Ø16)
Model :YS APL16-AL11R
Catalog : Google Drive
Brand : YONGSUNG
Size : 29.5 x 87 x 24 mm
• โครงสร้างการป้องกันไฟกึ่ง LED LAMP (กระแสไฟฟ้า, ฟังก์ชันควบคุมแรงดันไฟฟ้า)
• ฟังก์ชั่นอาจแตกต่างกันขึ้นอยู่กับสภาพแวดล้อมการติดตั้ง
• สามารถเปลี่ยนได้ง่ายเนื่องจากการใช้ LED LAMP PUSH PULT TYPE
• 2 แผงยึดแหวนสามารถปรับความสูงขึ้นอยู่กับความหนาของแผงและสามารถติดบน
แผงควบคุมไม่ได้
• ทนแรงดันไฟฟ้า: AC 2,500V/นาที
• อุณหภูมิแวดล้อม: -20’c – +55’C
• ความชื้นสัมพัทธ์ : 45 – 85%
• ความต้านทานการฉนวน: เหนือ 100MQ DC 500V เม็ก
DESCRIPTION
• LED LAMP semi lighting protection structure (current, voltage control function).
• Functionality can be different depending on install environment condition.
• Easily replaceable due to using of LED LAMP PUSH PULL TYPE.
• 2 panel attaching rings enable to adjust height depending on panel thickness and can be affixed to
panel impregnably.
• Withstand voltage : AC2,500V/min
• Ambient temperature : -20’c – +55’C
• Relative humidity : 45 – 85%
• Insulation resistance : Above 100MQ DC 500V. Meg
