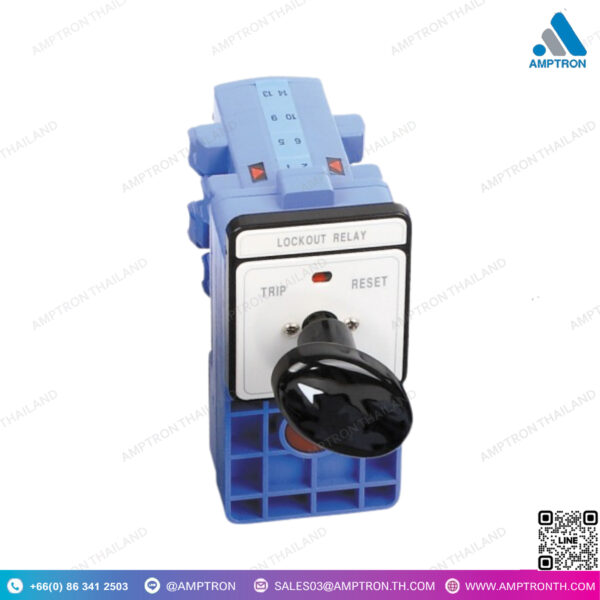

Lockout Relay
Model : YS LR2101-110ATRBD
Catalog : Google Drive
Brand : YONGSUNG
Size : N/A
• รีเลย์เสริมของการเดินทางอัตโนมัติความเร็วสูง/ประเภทการรีเซ็ตที่ทำงานด้วยตนเองโดยสัญญาณภายนอก
• บล็อกคอนแทค แบ่งเป็น 2 ชนิด AC 220V 30A และ DC 125V 20A มีความพร้อมใช้งานกว้างและมีความจุสูง
• ด้ามจับมีหลากหลายชนิด R, E, P, 0 และรูปลักษณ์ที่สง่างาม
• ง่ายต่อการติดต่อไปยังคอมโพสิตต่าง ๆ
• TRIP เวลาตอบสนองต่ำกว่า 10ms
• ส่วนขดลวด : AC 110V/220V 50/60Hz, DC 24V /110V/125V
• ทนแรงดันไฟฟ้า: AC 2,500V/นาที (50-60Hz)
• เรซิ่น ABS ทนความร้อน
• อุณหภูมิแวดล้อม: -20’c – +60’C
• ความชื้นสัมพัทธ์ : 45 – 85%
• ความต้านทานการฉนวน: เหนือ 100MQ DC 500V เม็ก
Description
• Auxiliary relay of high speed automatic trip/manual operated reset type by external signal.
• Block contact, divided by two type AC 220V 30A, and DC 125V 20A has wide-availability with high capacity
• Handle has various types of R, E, P, 0 and elegant appearance
• Easy for various contact compositon
• TRIP responding time below 10ms
• Coil part : AC 110V/220V 50/60Hz , DC 24V /110V /125V
• Withstand voltage : AC 2,500V/min (50-60Hz)
• Heat resistance ABS resin
• Ambient temperature : -20’c – +60’C
• Relative humidity : 45 – 85%
• Insulation resistance : Above 100MQ DC 500V. Meg
