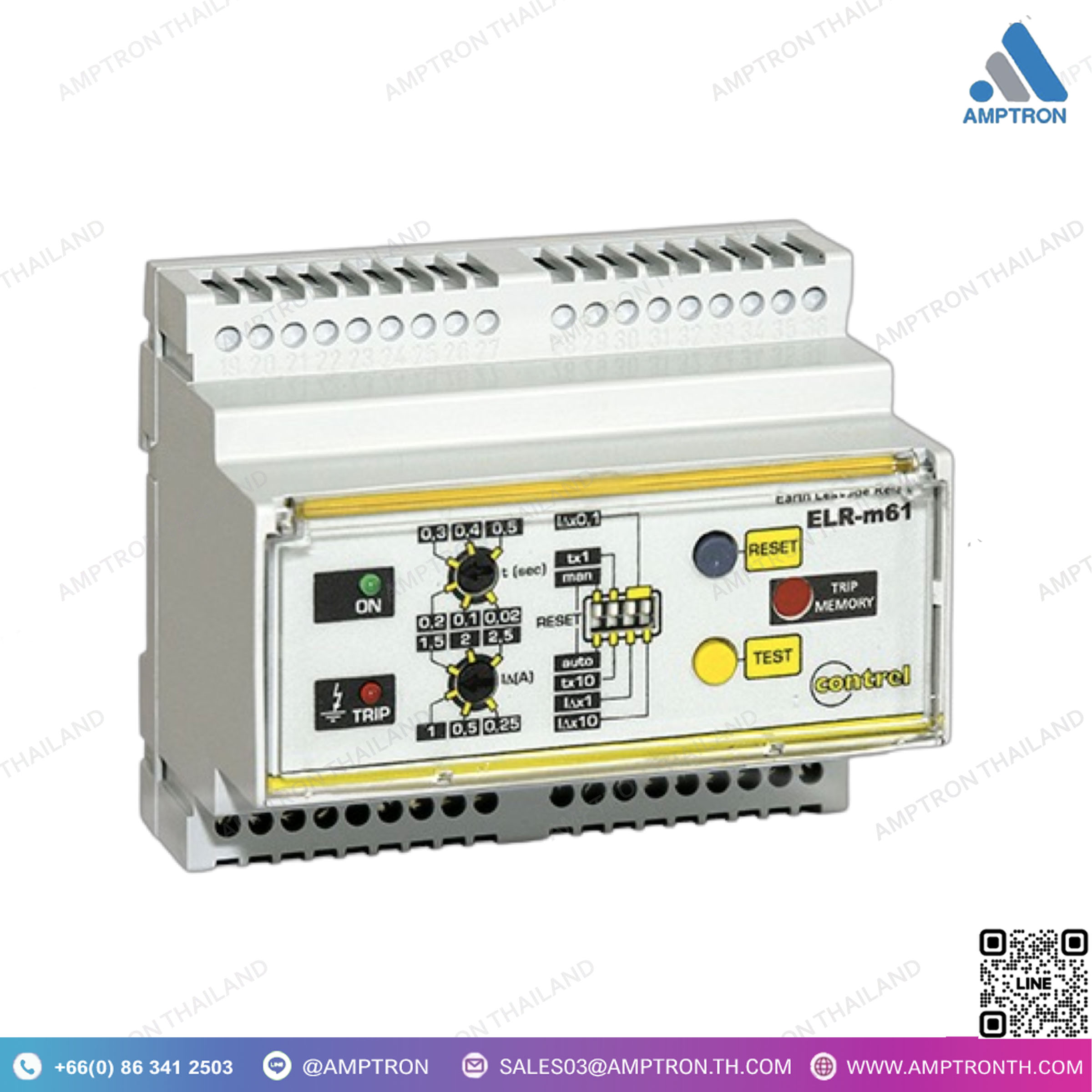

รีเลย์ตรวจจับไฟรั่ว Phase Protection Relay ELR- 61
Brand : CONTREL
Catalog : Google Drive
Model : ELR- 61, ELRm-61, ELR-62, ELRm-62
Size : N/A
• รีเลย์ป้องกันกระแสไฟรั่ว
• เซนเซอร์กระแสไฟรั่ว CT-1
• พลังงาน : 4 VA
• ประเภทการปรับตั้งกระแสไฟ : 0.025…25 A
• ประเภทการปรับตั้งเวลาในการหน่วงกระแสไฟที่เหลือ : 0.02…5 วินาที
• ชั้นการป้องกันกระแสไฟรั่ว : ประเภท A
• รีเลย์เอาต์พุต : 2 รีเลย์สลับ (ทั้งสองตัว TRIP) 5 A (240 VAC)
“• การแสดงผล : LED สีเขียว (พลังงานเปิด)
LED สีแดง (TRIP)
ธงเครื่องกล (รุ่น ELR-m61)
• การแสดงผล : LED สีเขียว (พลังงานเปิด)
LED สีแดง (TRIP)
LED สีแดง (ALARM)
ธงเครื่องกล (รุ่น ELR-m62)”
• วิธีการติดตั้ง : ราง DIN 6 โมดูล
“• มาตรฐาน : IEC/EN 61010
IEC/EN 61000-6-2EN
IEC/EN 61000-6-3
IEC/TR 60755”
• ระดับการป้องกัน IP : IP40 ด้านหน้า, IP20 ขั้วต่อ
• อุณหภูมิการทำงาน : -10…+60 °C
DESCRIPTION
• Product type : Residual current protection relay
• Current sensors compatibility : CT-1 earth leakage current sensor
• Power consumption : 4 VA
• Residual earth-leakage adjustment type : 0.025…25 A
• Residual earth-leakage time delay adjustment type : 0.02…5 s
• Earth-leakage protection class : Type A
• Output relays : 2 changeovers (both TRIP) 5 A (240 VAC)
“• Display indications : Green LED (power ON)
Red LED (TRIP)
Mechanical flag (version ELR-m61)
• Display indications : Green LED (power ON)
Red LED (TRIP)
Red LED (ALARM)
Mechanical flag (version ELR-m62)”
• Mounting mode : DIN rail 6 modules
“• Standards IEC/EN 61010
IEC/EN 61000-6-2EN
IEC/EN 61000-6-3
IEC/TR 60755”
• IP degree of protection : IP40 front, IP20 terminals
• Operating temperature : -10…+60 °C
