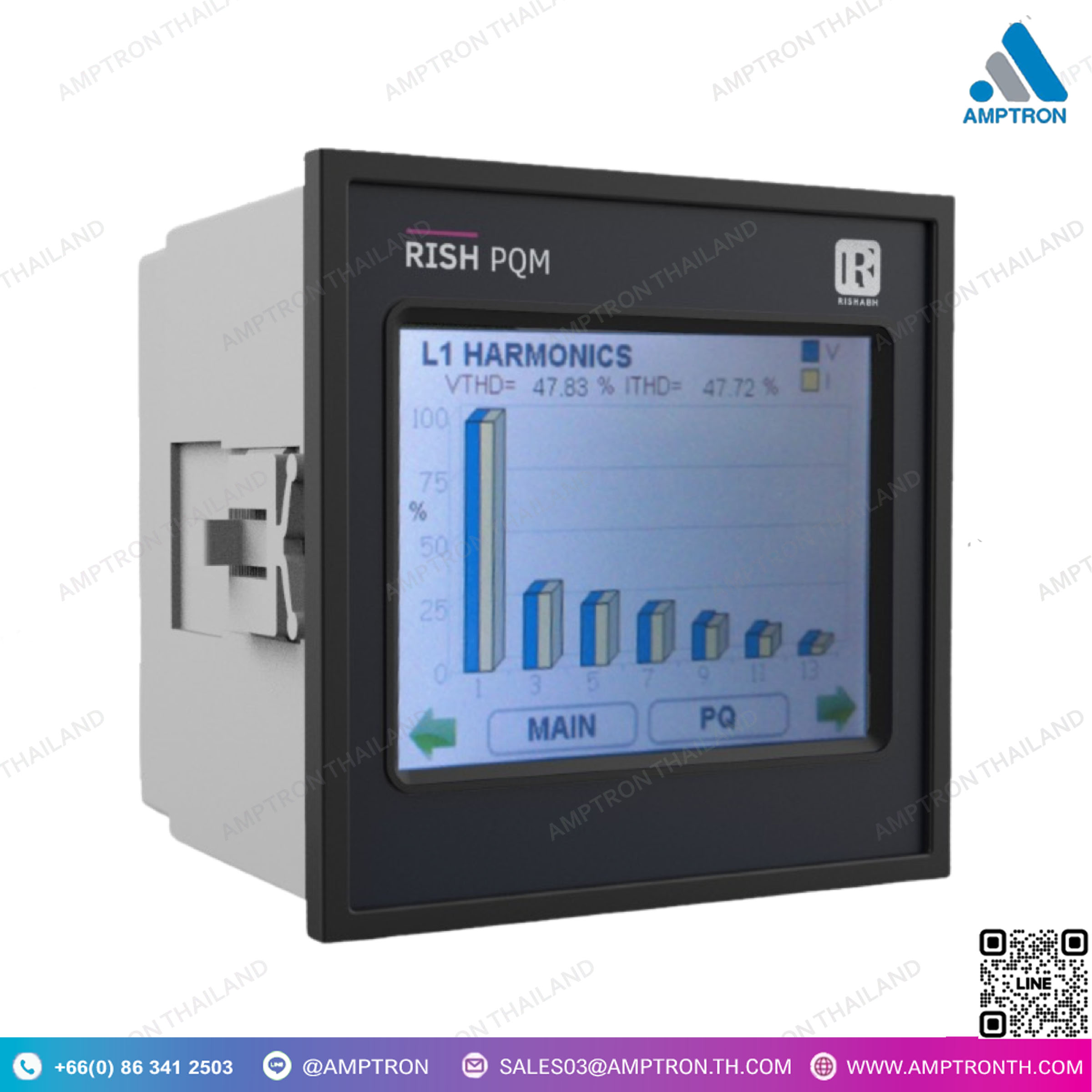

Power Quality Monitor RISHABH RISH PQM
Brand : RISHABH
Catalog : Google Drive
Model : RiSH PQA
Size : N/A
• วัดและตรวจสอบพารามิเตอร์มากกว่า 80 ตัว:
– พารามิเตอร์ไฟฟ้าพื้นฐานทั้งหมด
– พารามิเตอร์คุณภาพพลังงาน (Overcurrent, Sag & Swell)
– ฮาร์โมนิกส์แต่ละตัวประกอบด้วยแรงดันไฟฟ้าต่อเฟสและกระแสไฟฟ้า
• การวัดคุณภาพพลังงาน:
– ตรวจจับ Sags & Swells
– วัดฮาร์โมนิกได้ถึง 56th (50Hz) ในแต่ละเฟสสามารถตรวจสอบฮาร์โมนิกส์ได้สูงสุด 6 ตัวพร้อมกันสำหรับแต่ละเฟส
– การวัดค่า RMS ของแรงดันไฟฟ้าพื้นฐานและต่อเฟสและฮาร์โมนิกส์กระแสไฟฟ้า
– (%) THD ของแรงดันไฟฟ้าและกระแสไฟฟ้าต่อเฟส
– ปัจจัยการบิดเบือนของฮาร์โมนิกส์แต่ละตัว.
– การประทับเวลาของ sags & swells.”””
• การวิเคราะห์กราฟิก:
– การแสดงกราฟแท่งฮาร์โมนิกแต่ละขั้นต่อเฟส
– การแสดงเวกเตอร์แบบเรียลไทม์ของทั้ง 3 เฟสสำหรับการวิเคราะห์ระบบอย่างสมบูรณ์”””
• ชั้นพลังงาน 0.5S ตาม IEC 62053:
– เคาน์เตอร์พลังงานนำเข้าและส่งออกอิสระ
– การวัดพลังงานที่ทำงาน (kWh) พลังงานปฏิกิริยาพื้นฐาน (kVArh) และพลังงานที่ปรากฏ (kVAh)
– ความถูกต้องตาม IEC 62053-22, IEC 62053-23
– แรงกระตุ้นสำหรับการตรวจสอบพลังงาน”””
• สภาพแวดล้อม 23cC 1 1cC ไซนัสซอยด์ (ปัจจัยบิดเบือน 0.005), 50 / 60 Hz
• กระแสป้อนที่ระบุ 1A / 5A ACRMS
• การปฏิบัติตามมาตรฐานความปลอดภัยระหว่างประเทศ IEC 61010-1- 2010
Description
• Measures & Monitors more than 80 parameters:
“- All basic electrical parameters.
– Power quality parameters (Overcurrent ,Sag & Swell).
– Individual harmonics contains of per phase voltage and current.”
• Power Quality Measurement :
“- Sags & Swells detection
– Measurable up to 56th (50Hz) harmonic on each phase.Maximum any 6 harmonics can be monitored simultaneously for each phase.
– Measurement of RMS value of fundamental and per phase voltage and current harmonics.
– (%) THD of per phase voltage and current
– Distortion factor of individual harmonics.
– Time stamping of sags & swells.”
• Graphical Analysis:
“- Per phase individual harmonic bar graph representation.
– Real time vector representation of all 3 Phases for complete system analysis.”
• Energy class 0.5S as per IEC 62053 :
“- Independent Import and Export energy counter.
– Active energy (kWh), Fundamental Reactive energy (kVArh) & Apparent energy (kVAh) measurement.
– Accuracy as per IEC 62053-22, IEC62053-23
– Impulse for energy verification”
• Ambient 23°C ± 1°C Sinusoidal (distortion factor 0.005), 50 / 60 Hz
• Nominal input current 1A / 5A AC RMS
• Compliance to International Safety standard IEC 61010-1- 2010
