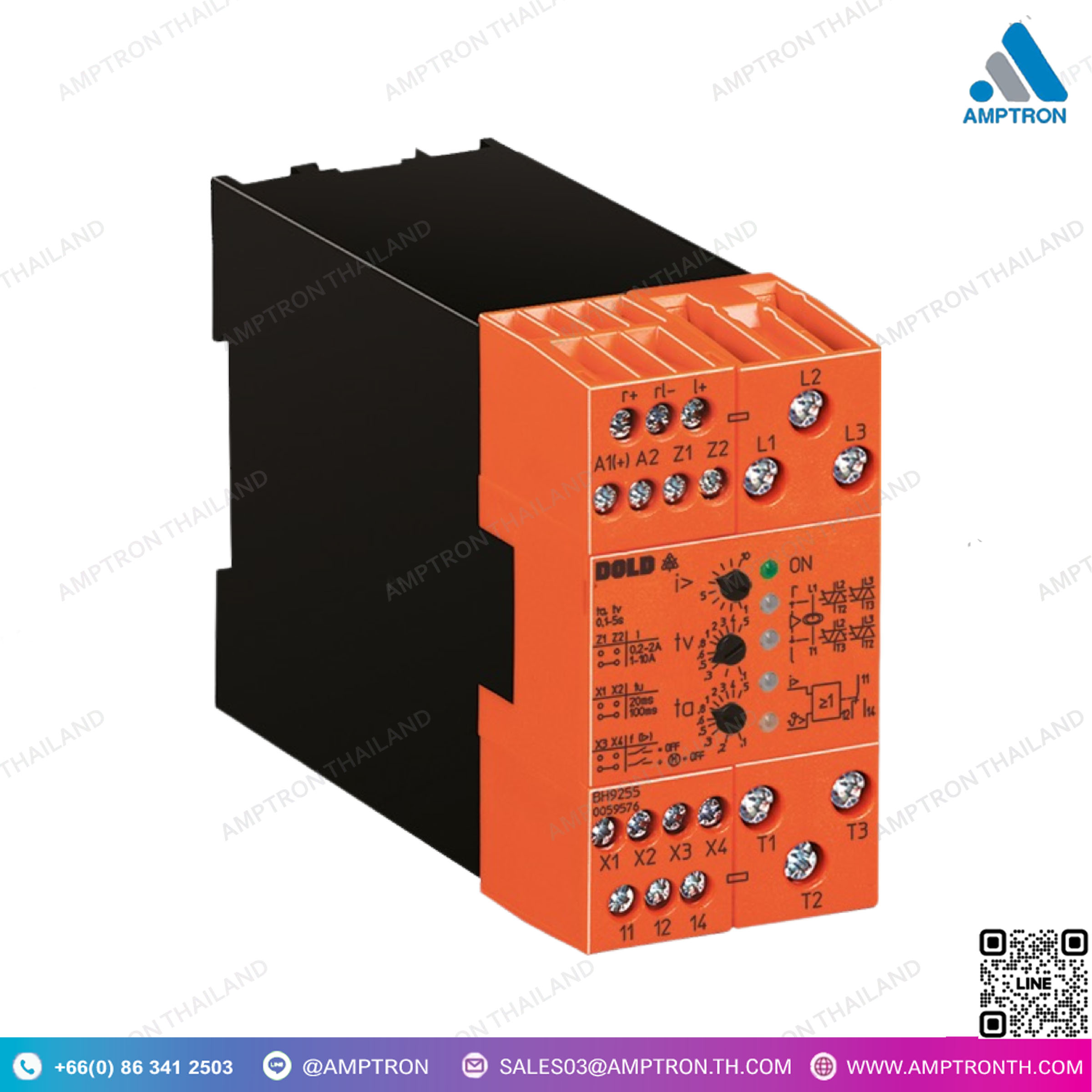

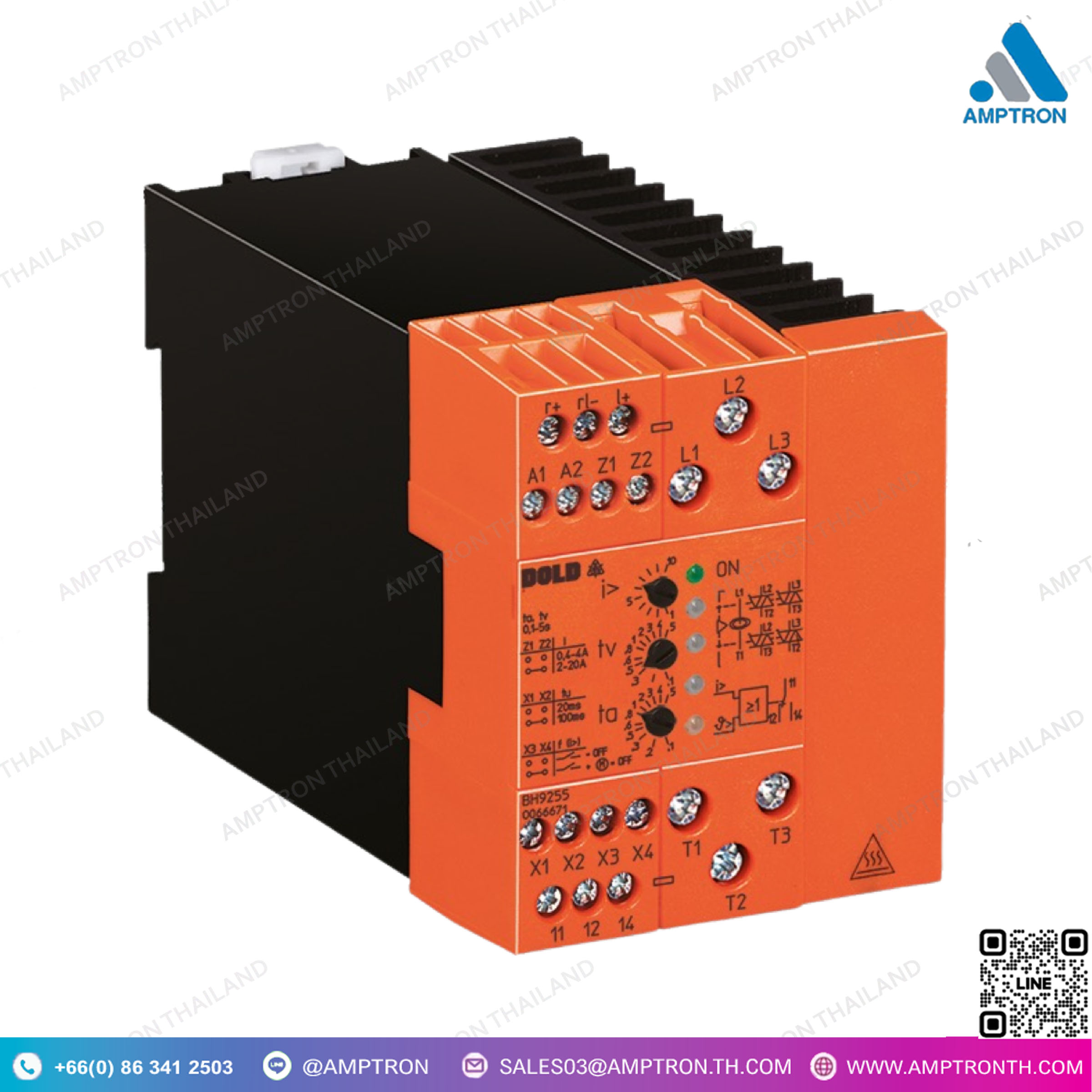

Power switch Reversing Contactor with Current Monitor BH9255
Brand : DOLD
Catalog : Google Drive
Model : BH 9255
Size : 45 x 84 x 121 mm
• IEC/EN 60947-1 IEC/EN 60947-4-2
• Switching at zero crossing
• reverse มอเตอร์ 3 เฟส asynchronous ถึง 5.5 kW / 400 V (7.5 HP / 460 V)
• การเชื่อมต่อไฟฟ้าของทั้งสองทิศทาง
• การตรวจสอบอุณหภูมิเพื่อป้องกันเซมิคอนดักเตอร์พลังงาน
• วัดกระแส nominal ได้ถึง 20 A
• หลอด LED สำหรับแสดงสถานะ
• การแยกกัลวานิกระหว่างวงจรควบคุมและวงจรไฟฟ้า
• ด้วยมอนิโตปัจจุบัน
• [ ที่มาของภาพ]
• เทอร์โมพลาสติกที่มีพฤติกรรม V0 ตาม UL subject 94
Description
• According to IEC/EN 60947-1, IEC/EN 60947-4-2
• Switching at zero crossing
• To reverse 3 phase asynchronous motors up to 5.5 kW / 400 V (7.5 HP / 460 V)
• Electrical interlocking of both directions
• Temperature monitoring to protect the power semiconductors
• Measured nominal current up to 20 A
• LEDs for status indication
• Galvanic separation between control circuit and power circuit
• With current monito
• Article number: 0064648
• Thermoplastic with V0 behavior according to UL subject 94
