Protection Relays
Model : YS MPR-05, YS MPR-06
Catalog : = Google Drive
Brand : YONGSUNG
Size : 90 x 36 x 59.7 mm
• รีเลย์ป้องกันความล้มเหลวของเฟส
– หนึ่งในความผิดพลาดทั่วไปที่พบในโรงงานอุตสาหกรรมคือ ความร้อนมากเกินไปและ
ส่งผลให้เกิดความเสียหายของมอเตอร์ 3 เฟสเนื่องจากเฟสล้มเหลว “เทอร์มิค…
รีเลย์แม่เหล็ก” ซึ่งเป็นองค์ประกอบสำคัญในการป้องกันมอเตอร์โดยทั่วไปก็เช่นเดียวกัน
ช้าในการรับประกันสตาร์ทอัพโดยไม่สะดุดเนื่องจากโครงสร้างทางกลไฟฟ้าทั้งสองของมัน
และการใช้ช่วงการตั้งค่ากระแสสูง รีเลย์ป้องกันความล้มเหลวเฟสคือ
ออกแบบมาเพื่อกำจัดข้อเสียเหล่านี้และเพื่อปกป้องมอเตอร์อย่างมีประสิทธิภาพ
1. เฟสฟาล์ว.
2. แรงดันไฟฟ้าไม่สมดุล
3. การป้องกันลำดับขั้น
4. แรงดันจ่ายไฟไม่เพียงพอ
• รีเลย์ป้องกันแรงดันไฟฟ้าเกินและต่ำกว่า
– รีเลย์ป้องกันแรงดันเกินและต่ำกว่าได้รับการออกแบบเพื่อป้องกันมอเตอร์และ
เครือข่ายต่อต้านสภาวะแรงดันเกิน/ต่ำกว่า ความล้มเหลวของลำดับเฟสและ
ขาดความล้มเหลวของเฟส
1. การป้องกันแรงดันเกินและต่ำกว่า
2. การป้องกันลำดับขั้น
3. แรงดันจ่ายไฟไม่เพียงพอ
• รีเลย์เวลาแบบมัลติฟังก์ชั่น
Description

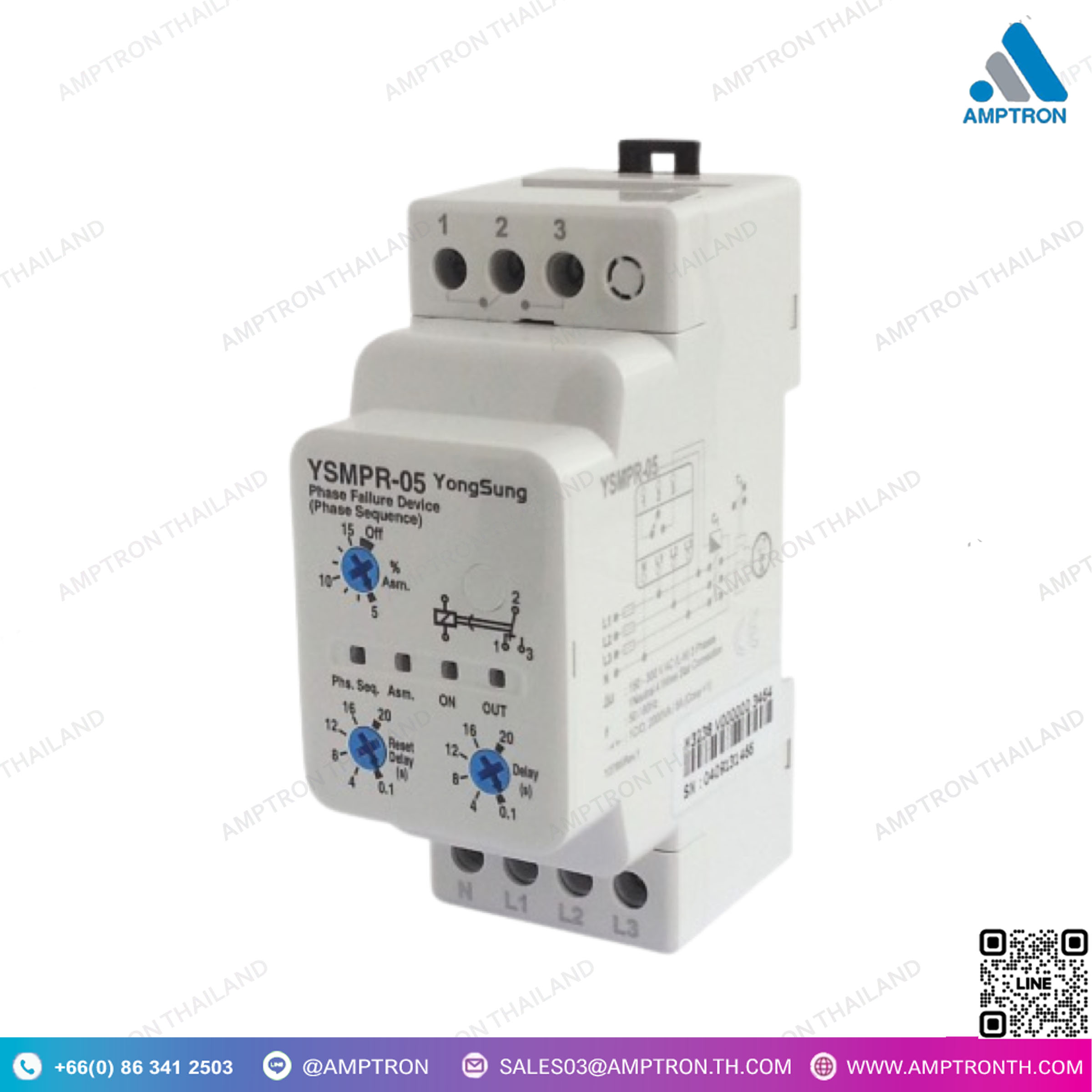

• Phase failure protection relay
– One of the common faults encountered in industrial plants is the overheating and the
resulting damaging of the 3-phase motors due to the phase failure. “Thermic-
magnetic relay” which is an essential element in motor protection is generally too
slow to assure start-up without tripping due to both its electromechanical structure
and the use of high current setting range, Phase Failure Protection Relays are
designed to eliminate these disadvantages and to efficiently protect the motors.
1. Phase Fault.
2. Voltage Unbalance.
3. Phase Sequence Protection.
4. Insufficient Supply Voltage.

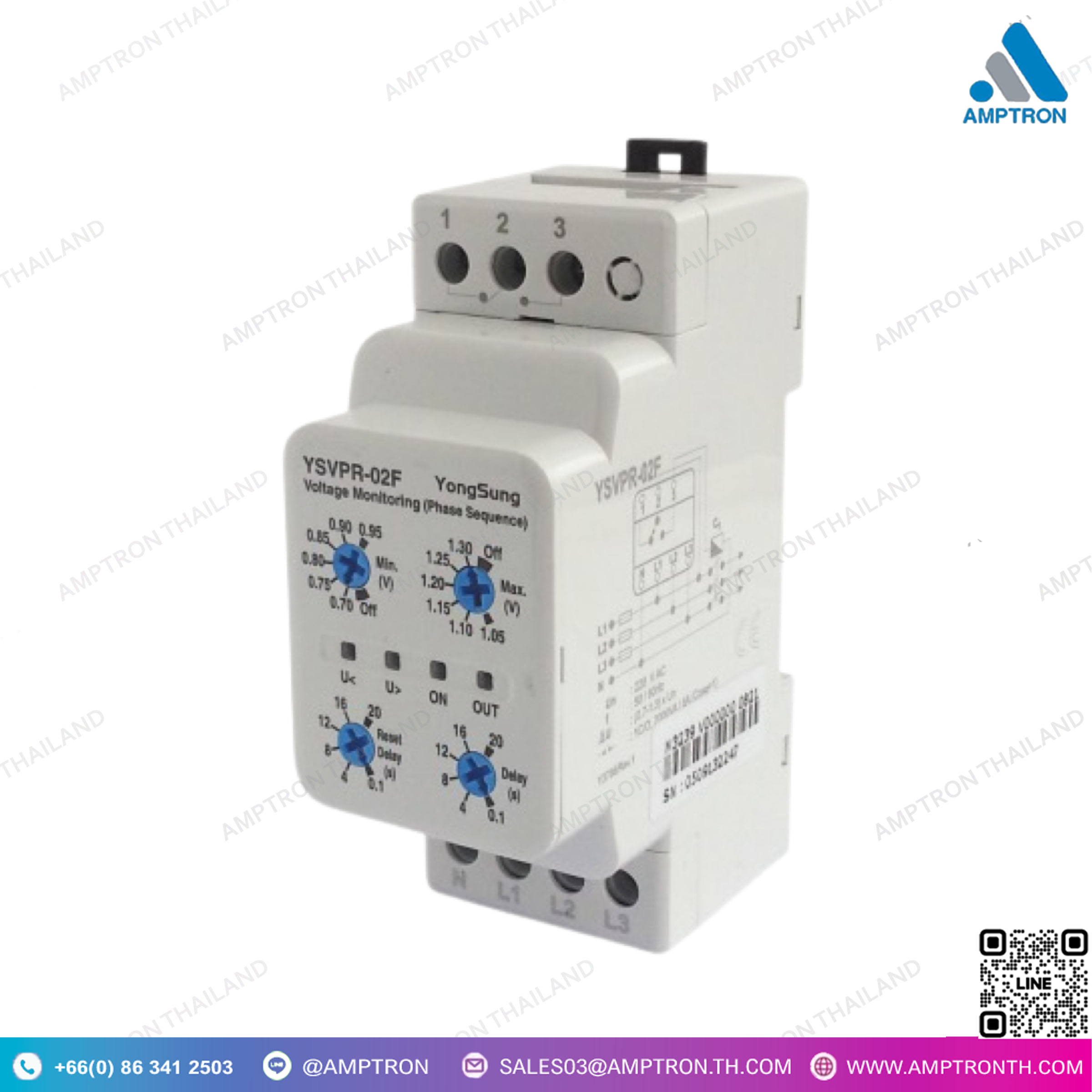

• Over and under voltage protection relay
– Over and Under Voltage Protection Relays are designed to protect the motors and
networks against over-/undervoltage conditions, phase sequence failures and
absence of phase failure.
1. Over and Under Voltage Protection.
2. Phase Sequence Protection.
3. Insufficient Supply Voltage.

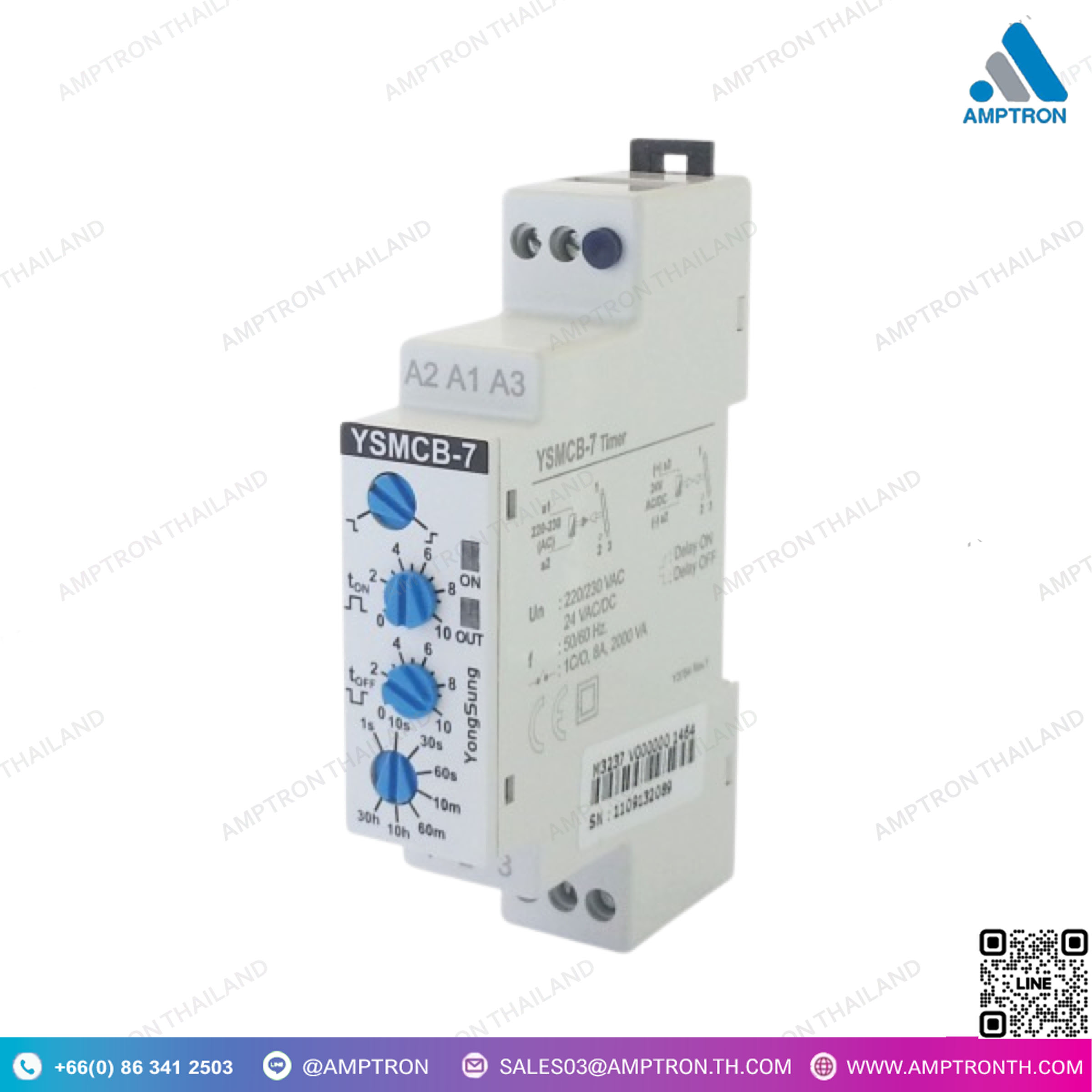

• Multifunctional time relay
“- Multifunctional Time Relays are microprocessor-based electronic time relays.
They have precisely adjustable time ranges between 0.1s ~ 60 hours and various
functions.”
• Ambient temperature : -5’C – +55’C
• Rated voltage : 220V, 380V
• Operating frequency : 50/60 Hz
• Relative humidity : <90%
