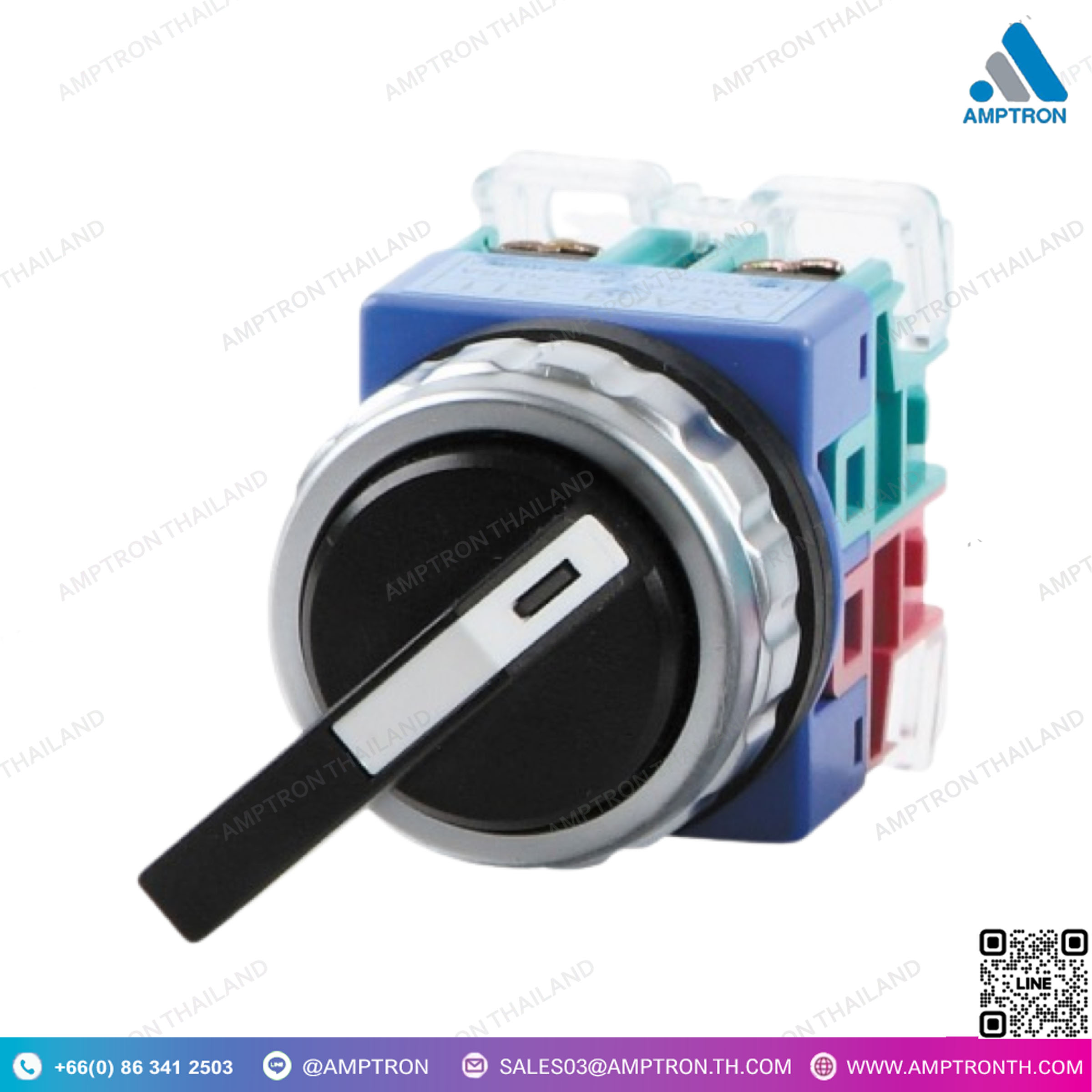

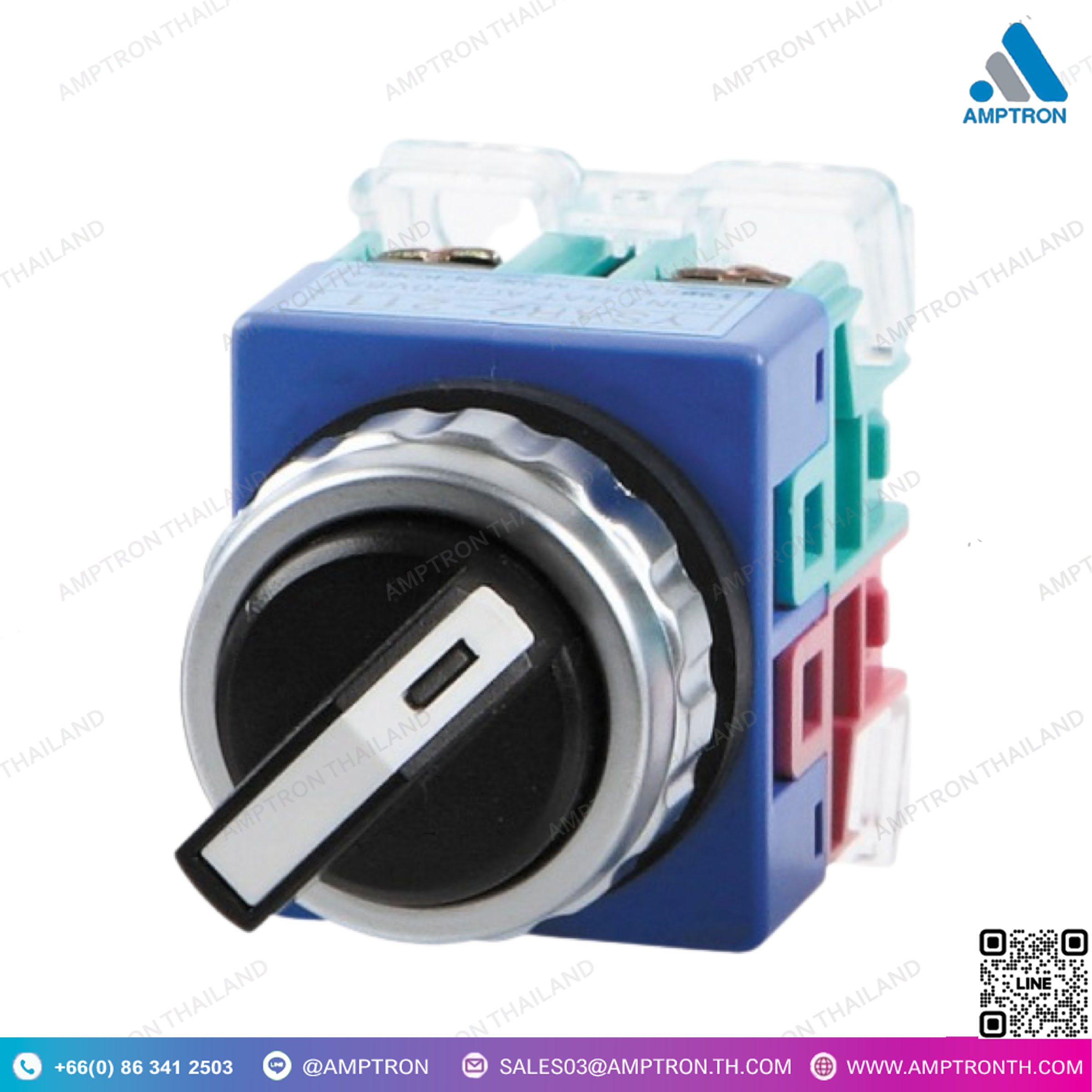

Rotary Switch (A Type)
Model : YS AR2-211K_DW
Catalog : Google Drive
Brand : YONGSUNG
Size : 21.8 x 33.6 x 43 mm, 26 x 33.6 x 43 mm, 33 x 35.2 x 43 mm, 37 x 35.2 x 43 mm
• การผสมหรือเคลือบพิเศษบนชิ้นส่วนโลหะทำให้อายุการใช้งานยาวนานขึ้น
• วงแหวนยึดแผงปกติเป็น ABS ทนความร้อน แต่ยังสามารถทดแทนได้ด้วยอลูมิเนียมหล่อลื่นตามความต้องการ
• โดยการดำเนินการสวิตช์สปริง สวิตช์ที่แม่นยำและการใช้งานที่กระแสต่ำเป็นไปได้
• แหวนประเภทคาร์เวนที่ใช้ในการตรวจสอบสถานะแสงโคมไฟจากด้านข้าง
• ระยะเวลาการตรวจสอบที่สั้นลงของวงจรสวิตช์เนื่องจากการตรวจสอบภาพของชิ้นส่วนสวิตช์
• ระยะเวลาการตรวจสอบที่สั้นลงของวงจรสวิตช์เนื่องจากการตรวจสอบภาพของชิ้นส่วนสวิตช์
• ความต้านทานการฉนวน: เหนือ 100MQ DC 500V เม็ก
• ทนแรงดันไฟฟ้า: AC 2,500V/นาที (50Hz-60Hz)
• อุณหภูมิแวดล้อม: -20’C – +55’C
• ความชื้นสัมพัทธ์ : 45% – 85%
• โพลีคาร์บอเนตเรซิน
Description
• Special alloying or plating treatment on metal parts makes longer life.
• Normal panel attachment ring is heat resistance ABS, but also replaceable by diecasting aluminum upon request.
• By spring switching operation, exact switching and use at low current are posible.
• Carven type ring used for checking lamp lighting state from side.
• Shortened checking time of switch circuit due to visual checking of switching part.
• Shortened checking time of switch circuit due to visual checking of switching part.
• Insulation resistance : Above 100MQ DC 500V. Meg
• Withstand voltage : AC 2,500V/min (50Hz-60Hz)
• Ambient temperature : -20’C – +55’C
• Relative humidity : 45% – 85%
• Polycarbonate resin
