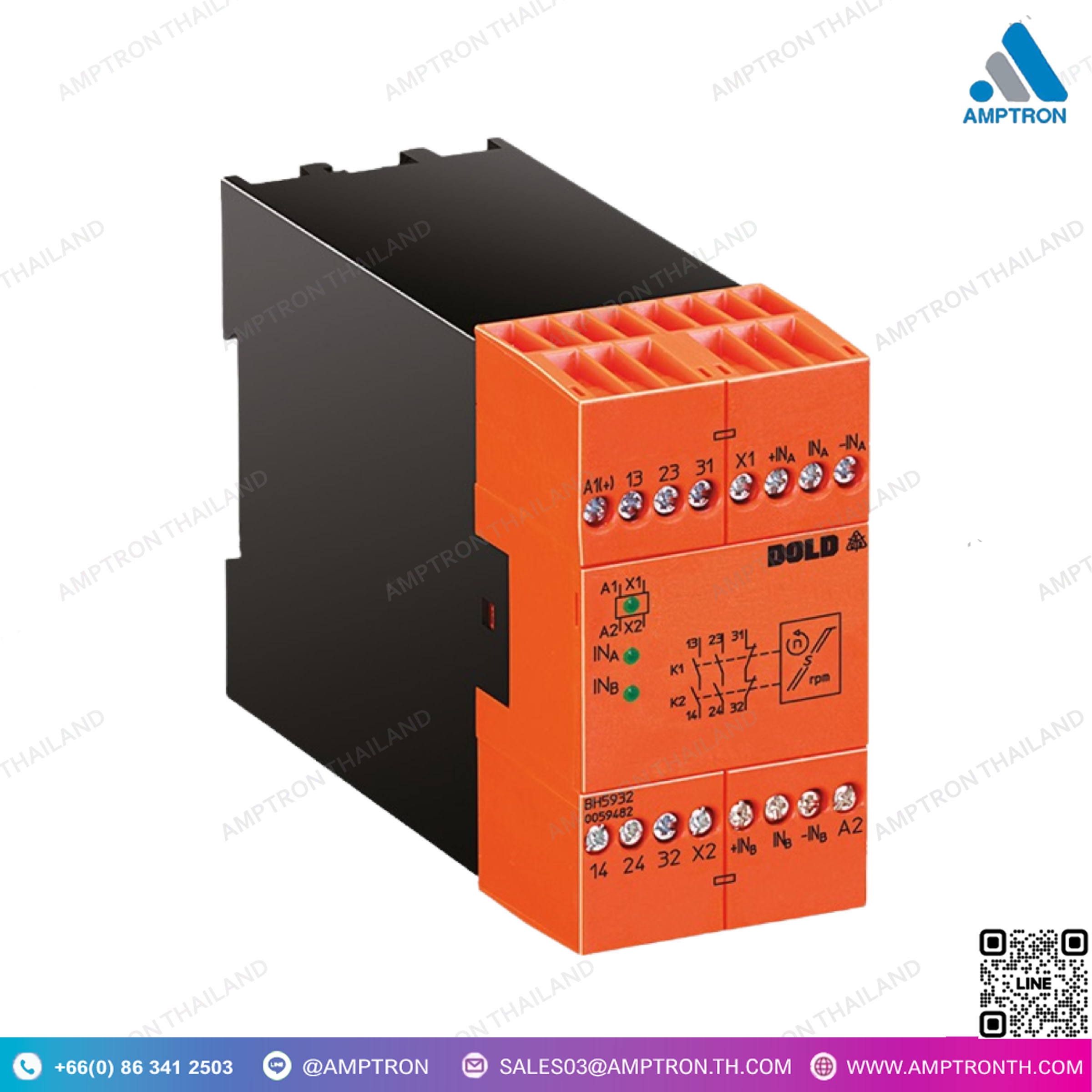

Safemaster S Speed or Standstill Monitor BH 5932
ตรวจจับทิศทางหมุนรอบมอเตอร์ หมุนปกติหรือไม่
Brand : DOLD
Catalog : Google Drive
Model : BH 5932
Size : 45 x 85 x 121 mm.
– ระดับประสิทธิภาพ (PL) และประเภท 3 ถึง EN ISO 13849-1
– ระดับการอ้างสิทธิ์ SILL (SILCL) 3 ถึง IEC/EN 62061
– ระดับความสมบูรณ์ของความปลอดภัย (SIL) 3 ถึง IEC/EN 61508 และ IEC/EN 61511
• อินพุต 2 ช่อง
• เพื่อตรวจสอบการหมุนและการเคลื่อนที่เชิงเส้น
• อินพุตเซ็นเซอร์ความใกล้ชิด PNP
• เลือกอินพุตสำหรับเซ็นเซอร์ความใกล้ชิด NPN
• การตรวจสอบเซ็นเซอร์ที่เชื่อมต่อ
• 2 NO, ติดต่อ 1 NC
• การเชื่อมต่อสายไฟ: 2 x 1.5 มม. 2 x 1.5 มม. 2 ตัว (แยก), DIN 46 228-1/-2/-3/-4 หรือ 2 x 2.5 มม. 2 ตัว DIN 46 228-1/-2/-3
• เทอร์โมพลาสติกที่มีพฤติกรรม V0 ตาม UL subject 94
Description
– Performance Level (PL) e and category 3 to EN ISO 13849-1
– SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
– Safety Integrity Level (SIL) 3 to IEC/EN 61508 and IEC/EN 61511
• 2-channel input
• To monitor rotation and linear movement
• PNP proximity sensor inputs
• Optionally inputs for NPN proximity sensors
• Monitoring of connected sensor
• Fixed setting, adjustable as option
• Energized when speed is under setting value
• LED indication
• Feedback circuit X1 – X2 to monitor external contacts
• Forcibly guided contacts
• 2 NO, 1 NC contact
• Wire connection: also 2 x 1.5 mm2 stranded ferruled (isolated), DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
• Article number: 0065009
• Thermoplastic with V0 behaviour according to UL subject 94
