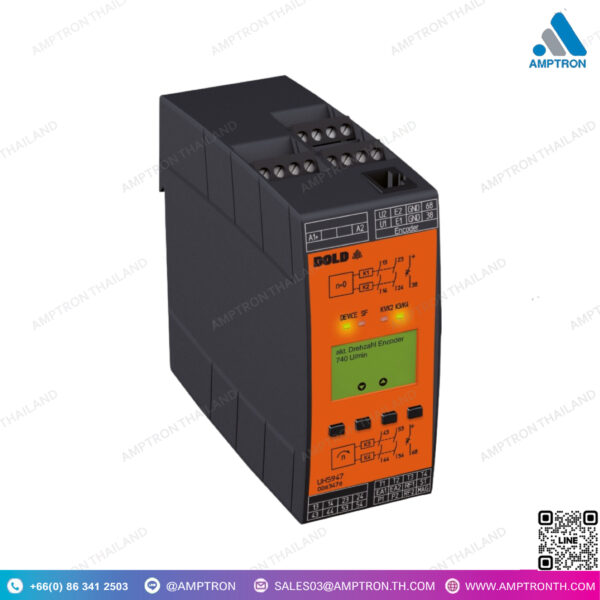

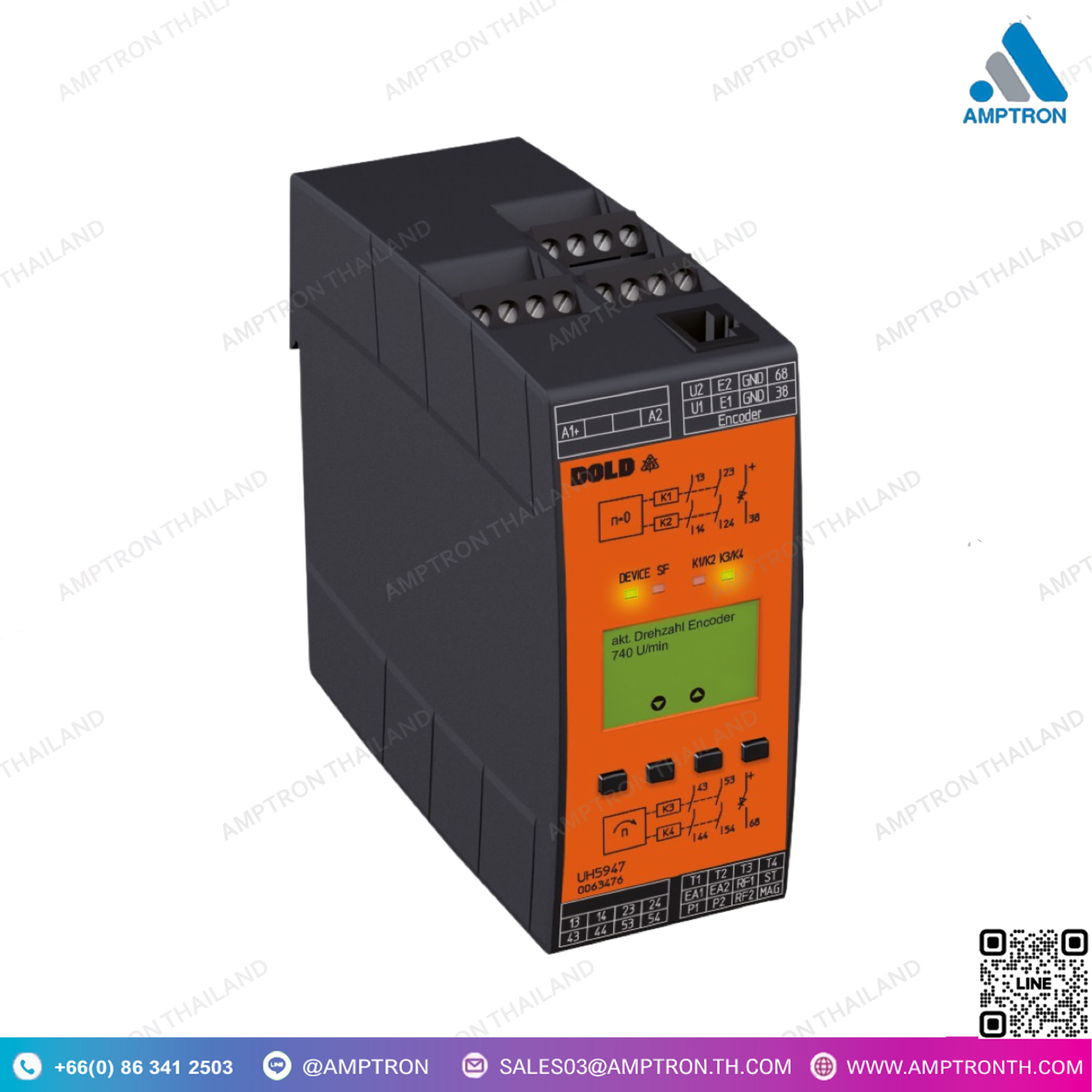

ตรวจจับความเร็วรอบมอเตอร์ Safemaster S Speed Monitor UH 5947
Brand : DOLD
Catalog : Google Drive
Model : UH 5947
Size : 45 x 107 x 121 mm
• การตั้งค่าอุปกรณ์ผ่านหน้าจอแบบเมนู หรือผ่าน RJ45
• การติดตามการเปลี่ยนแปลง
• โหมดการทำงานที่ปรับได้
• โหมดอัตโนมัติ: การตรวจสอบหน้าต่างความเร็วหมุนอัตโนมัติ และการตรวจจับความหยุดนิ่ง
• โหมดตั้งค่า: การตรวจสอบหน้าต่างความเร็วหมุนในการตั้งค่า โดยให้สถานะหยุดนิ่งถูกเปิดใช้งานตลอดเวลา
• การตรวจสอบประตูความปลอดภัยแบบช่องทางเดียวหรือสองช่องทาง
• การปรับค่าหน่วงเวลาเริ่มต้น (0 … 999 วินาที)
• การปรับเวลาหน่วงสำหรับการตรวจจับสถานะหยุดนิ่ง (13/14, 23/24) (0 … 999 วินาที)
• การปรับเวลาการตรวจสอบสำหรับวงจรฟีดแบค RF1 (0.5 … 999 วินาที)
• การตรวจสอบแม่เหล็กปลดปล่อย
• ไฟแสดงสถานะ LED และ 2 เอาท์พุตการตรวจสอบแบบเซมิคอนดักเตอร์
• มาพร้อมกับขั้วต่อที่ถอดเปลี่ยนได้ง่ายสำหรับการเปลี่ยนอุปกรณ์
พร้อมขั้วต่อแบบสกรู
หรือขั้วต่อแบบคลิปกรง
• ผลิตจากเทอร์โมพลาสติกที่มีคุณสมบัติ V0 ตามมาตรฐาน UL Subject 9
Description
• Device setting on menu-driven display or via RJ45
• Change tracking
• Adjustable operation mode
“- Automatic mode: Monitoring of automatic rotational speed window
and standstill speed.
– Setup mode: Monitoring of setup rotational speed window.
Standstill is permanently enabled.”
• Single or 2-channel safety gate monitoring
• Adjustable start up delay (0 … 999 s)
• Adjustable time delay for standstill detection (13/14, 23/24) (0 … 999 s)
• Adjustable monitoring time for feedback circuit RF1 (0,5 … 999 s)
• Monitoring of an release magnet
• Monitoring of feedback circuits
• Activation of the output path 43/44, 53/54 with on/off pushbutton with short circuit detection or automatic making function
• Adjustable PNP- or NPN-sensors
• Connection of different encodern possible (sin/cos, TTL, HTL)
• 2-channel function
• Forcibly guided contacts
• LED-indicators and 2 semiconductor monitoring output
• With pluggable terminal blocks for easy exchange of devices
– With screw terminals
– Or with cage clamp terminals
• Thermoplastic with VO behaviour acc. to UL subject 94
