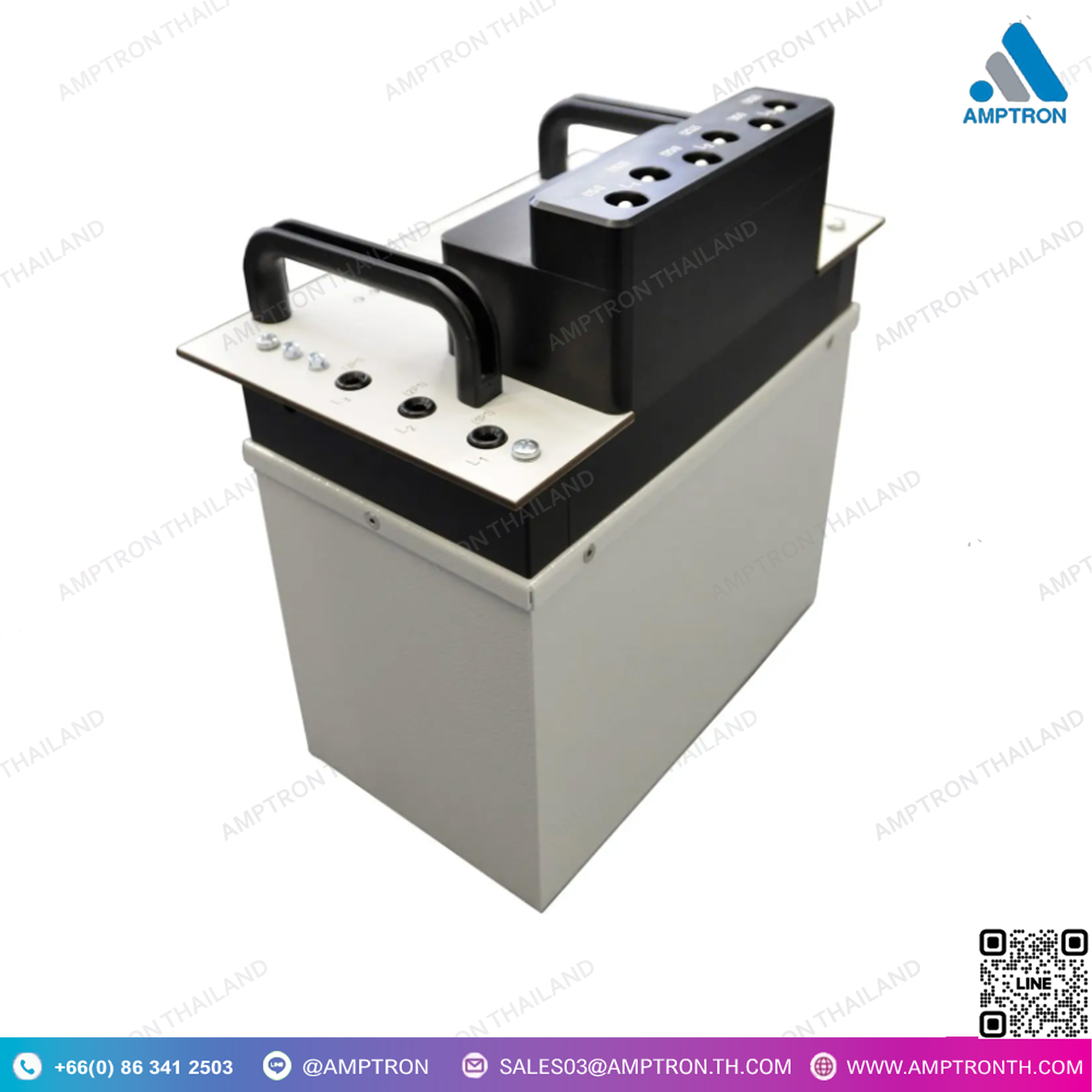

ICT127 Insulated Current Transformer
Brand : ZERA
Catalog : Google Drive
Model : ICT127
max. 120 A, 1:1 and 10:1, very high accuracy < 12 A
ICT127 Insulated Current Transformer คือ หม้อแปลงกระแส (Current Transformer)
ที่มีการออกแบบมาเพื่อการวัดกระแสไฟฟ้าในระบบไฟฟ้าขนาดใหญ่ โดยเฉพาะในระบบที่มีความเสี่ยงสูง
ซึ่งต้องการการป้องกันและแยกไฟฟ้าระหว่างระบบและเครื่องมือที่ใช้วัดหม้อแปลงนี้จะช่วยเพิ่มความปลอดภัย
ในการวัดกระแสและป้องกันการสัมผัสไฟฟ้าที่มีแรงดันสูง
• ฟังก์ชั่นหลัก
การชดเชยข้อผิดพลาดทางอิเล็กทรอนิกส์แบบรวม
การแยกไฟฟ้าอย่างสมบูรณ์ระหว่างกระแสและแรงดันสำหรับการทดสอบมิเตอร์ที่มีการเชื่อมต่อที่ปิด
รองรับการสื่อสารผ่าน WinSAM
• ขอบเขตการใช้งาน
การทดสอบเบรกเกอร์ (ตัวเลือก)
การวัดภาระ (ตัวเลือก)
สำหรับการทดสอบมิเตอร์แบบเฟสเดี่ยว, ICT หนึ่งตัวสามารถทดสอบมิเตอร์ได้สูงสุดสามตัว
สำหรับการทดสอบมิเตอร์สามเฟสต้องใช้ ICT หนึ่งตัวสำหรับแต่ละตำแหน่งการทดสอบ
การทดสอบมิเตอร์แบบเฟสเดี่ยวหรือสามเฟสที่มีการเชื่อมต่อที่ปิด
• คุณสมบัติพิเศษ
เหมาะอย่างยิ่งสำหรับการทดสอบมิเตอร์ที่ใช้ CT รุ่นล่าสุด
อัตราส่วน 1 : 1
อัตราส่วน 10 : 1
ความแม่นยำสูงมากในช่วงกระแสต่ำ (< 12 A)
DESCRIPTION
• Current generation min. 10 mA
• Current generation max. 120 A
• Main functions
– Combined, electronical error compensation
– Galvanic isolation of current and voltage for testing of meters with closed link
– Supports the communication via WinSAM
• Scope of application
– Breaker test (optional)
– Burden measurement (optional)
– For testing single-phase meters, one ICT can be used for testing max. three meters
– For testing three-phase meters there is one ICT required for each test position
– Testing of single- or three-phase meters with closed link
• Specials
– Especially suitable for testing CT operated meters of the latest generation
– Ratio 1 : 1
– Ratio 10 : 1
– Very high accuracy in small current ranges (< 12 A)
