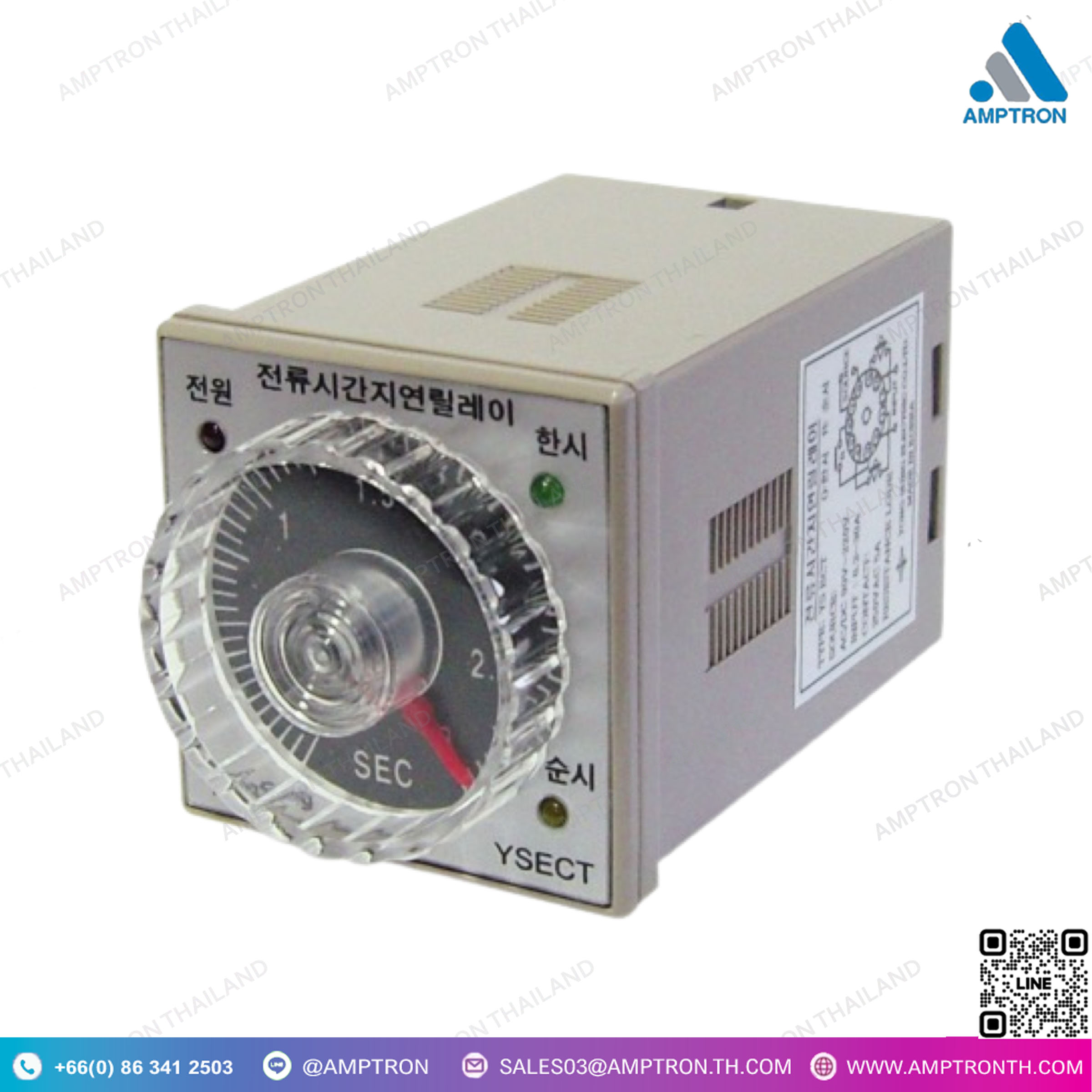

Electric Current Delay Timer
Timer Relay หน่วงเลาเปิด
Model : YS ECT-F005403S
Catalog : = Google Drive
Brand : YONGSUNG
Size : 44.8 x 93 x 48 mm
• การสังเกตความผิดพลาดจากการทำงาน กระแสไฟฟ้า C.B TRIP (DC) ของรีเลย์ความปลอดภัยสามารถเป็นไปได้ในทุกกรณี
• สามารถนำไปใช้กับวงจรใดก็ได้ โดยประกอบด้วยการติดต่อสองประเภทคือ D-TIME และ R-TIME
• เวลา D-TIME สามารถให้รางวัลเป็นความล่าช้า 0 – 3 วินาที
• สามารถตรวจจับสัญญาณกระแสไฟฟ้าได้ทันทีโดยใช้เซ็นเซอร์เป็นตัวตรวจจับกระแสไฟฟ้า
• ความเสถียรและความแม่นยำดีขึ้นโดยการใช้ไมโครโปรเซสเซอร์
• ความต้านทานการฉนวน: มากกว่า 10MQ ระหว่างวงจรไฟฟ้า / คอนแทคบล็อก DC500V เมกะ
• อุณหภูมิแวดล้อม: -10’C – +50’C
Description
• Observing FAULT by operation, C.B TRIP current(DC) of safety relay can be possible in any case,
• Can be applied for any circuit by consisting two kinds of contact as D-TIME and R-TIME.
• D-TIME time can be rewarded as 0 – 3sec time delay.
• Instant current signal can be detected by using sensor as current detector.
• Stability and accuracy improves by applying micro processor.
• Insulation resistance : Over 10MQ between electric circuits / contact blocks DC500V mega
• Ambient temperature : -10’C – +50’C
