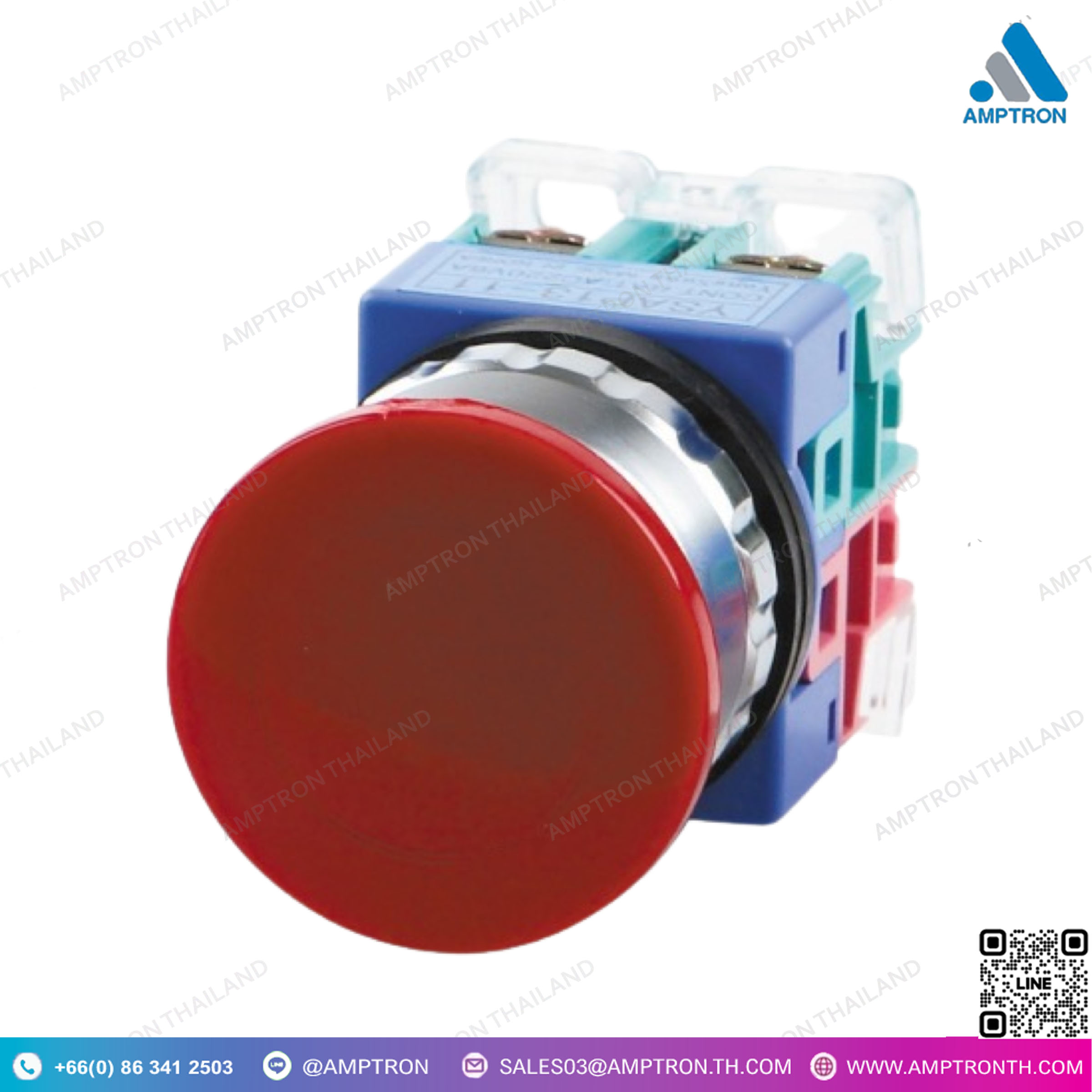

Emergency Push Button Switch (A Type)
Model : YS AEP12-11RD
Catalog : Google Drive
Brand : YONGSUNG
Size : 32 x 41 x 36 mm, 24 x 61.5 x 18 mm
• โดยการดำเนินการสวิตช์สปริง สวิตช์ที่แม่นยำและการใช้งานที่กระแสต่ำเป็นไปได้
• แหวนประเภทคาร์เวนที่ใช้ในการตรวจสอบสถานะแสงโคมไฟจากด้านข้าง
• เชื่อมต่อสายได้ง่ายขึ้น ด้วยการสลับสายแบบ A, B หนึ่งชนิด (2A และ 2B ไม่ได้ผลิตขึ้น)
• ระยะเวลาการตรวจสอบที่สั้นลงของวงจรสวิทช์เนื่องจากการตรวจสอบภาพของชิ้นส่วนสวิตช์”
• ความต้านทานการฉนวน: เหนือ 100MQ DC 500V เม็ก
• ทนแรงดันไฟฟ้า: AC 2,500V/นาที (50-60Hz)
• อุณหภูมิแวดล้อม: -20’C – +55’C
• ความชื้นสัมพัทธ์ : 45% – 85%
• โพลีคาร์บอเนตเรซิน
Description
• By spring switching operation, exact switching and use at low current are posible.
• Carven type ring used for checking lamp lighting state from side.
• Easier wire connection with one switching type of A, B contact. (2A and 2B are not manufactrued.)
• Shortened checking time of switch circuit due to visual checking of switching part.”
• Insulation resistance : Above 100MQ DC 500V. Meg
• Withstand voltage : AC 2,500V/min (50-60Hz)
• Ambient temperature : -20’C – +55’C
• Relative humidity : 45% – 85%
• Polycarbonate resin
