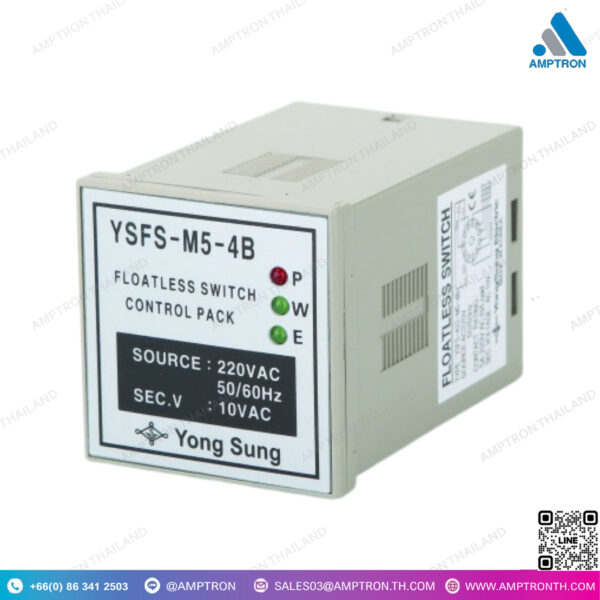

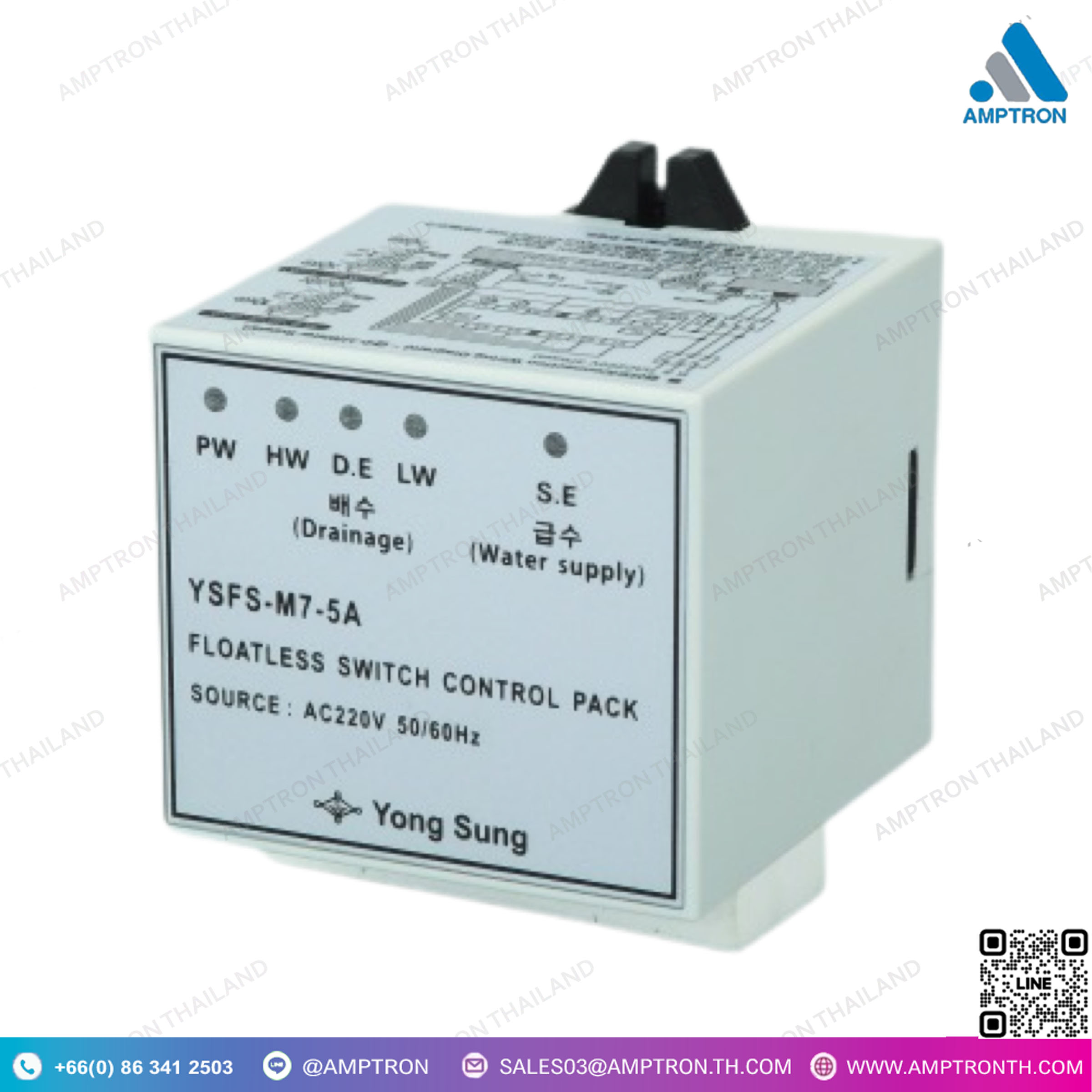

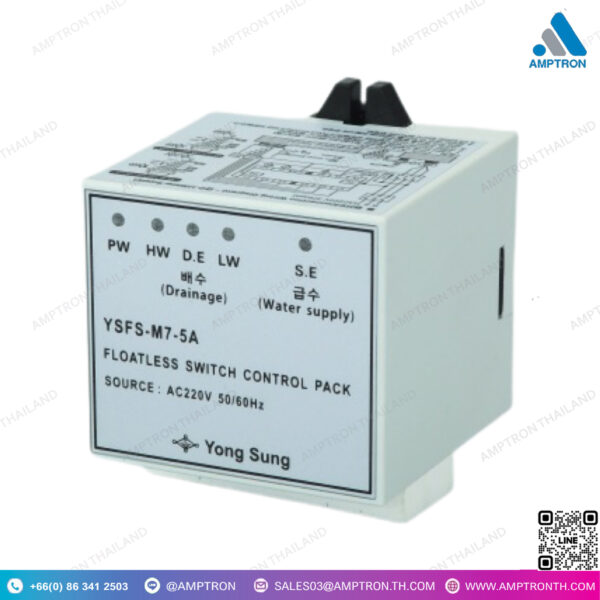

โฟลทเลส รีเลย์ Floatless Relay (Advanced Type)
Model : YS FS-3A, YS FS-4A, YS FS-4B, YS FS-5A, YS FS-5B
Catalog : = Google Drive
Brand : YONGSUNG
Size : N/A
• การใช้ซ็อกเก็ต 11Pin (3A,4A,4B) และซ็อกเก็ต 14 Pin (5A,5B) จึงง่ายต่อการซ่อมแซมและบำรุงรักษา
• ผลิตในขนาดเล็กดังนั้นง่ายต่อการติดตั้ง
• การป้องกันความเกียจคร้านและการทำงานอัตโนมัติสำหรับการจ่ายน้ำและการระบายน้ำ
• ระบุโคมไฟสำหรับการระบายน้ำ/แหล่งจ่ายน้ำ/สัญญาณเตือนภัย
• แรงดันที่กำหนดไว้: AC110V, AC220V 50/60Hz
• ความต้านทานการฉนวน: เหนือ 100MQ DC 500V เม็ก
• ทนแรงดันไฟฟ้า: AC 2,500V/นาที (50Hz~60Hz)
• อุณหภูมิแวดล้อม: -10’C – +55’C
• ความชื้นสัมพัทธ์ : 45% – 80%
• การติดตั้ง: ซ็อกเก็ต YS SK11 ซ็อกเก็ต YS SK14-K
Description
• Using 11Pin socket type (3A,4A,4B), and 14 Pin socket type (5A,5B), therefore, easy to repair and maintain.
• Manufactured in small size therefore, easy to install.
• Prevention of idling and Automatic operation for water supply and drainage.
• Indicating lamps for water drainage/water supply/alarm.
• Rated voltage : AC110V, AC220V 50/60Hz
• Insulation resistance : Above 100MQ DC 500V. Meg
• Withstand voltage : AC 2,500V/min (50Hz~60Hz)
• Ambient temperature : -10’C – +55’C
• Relative humidity : 45% – 80%
• Mounting : Socket YS SK11, Socket YS SK14-K
