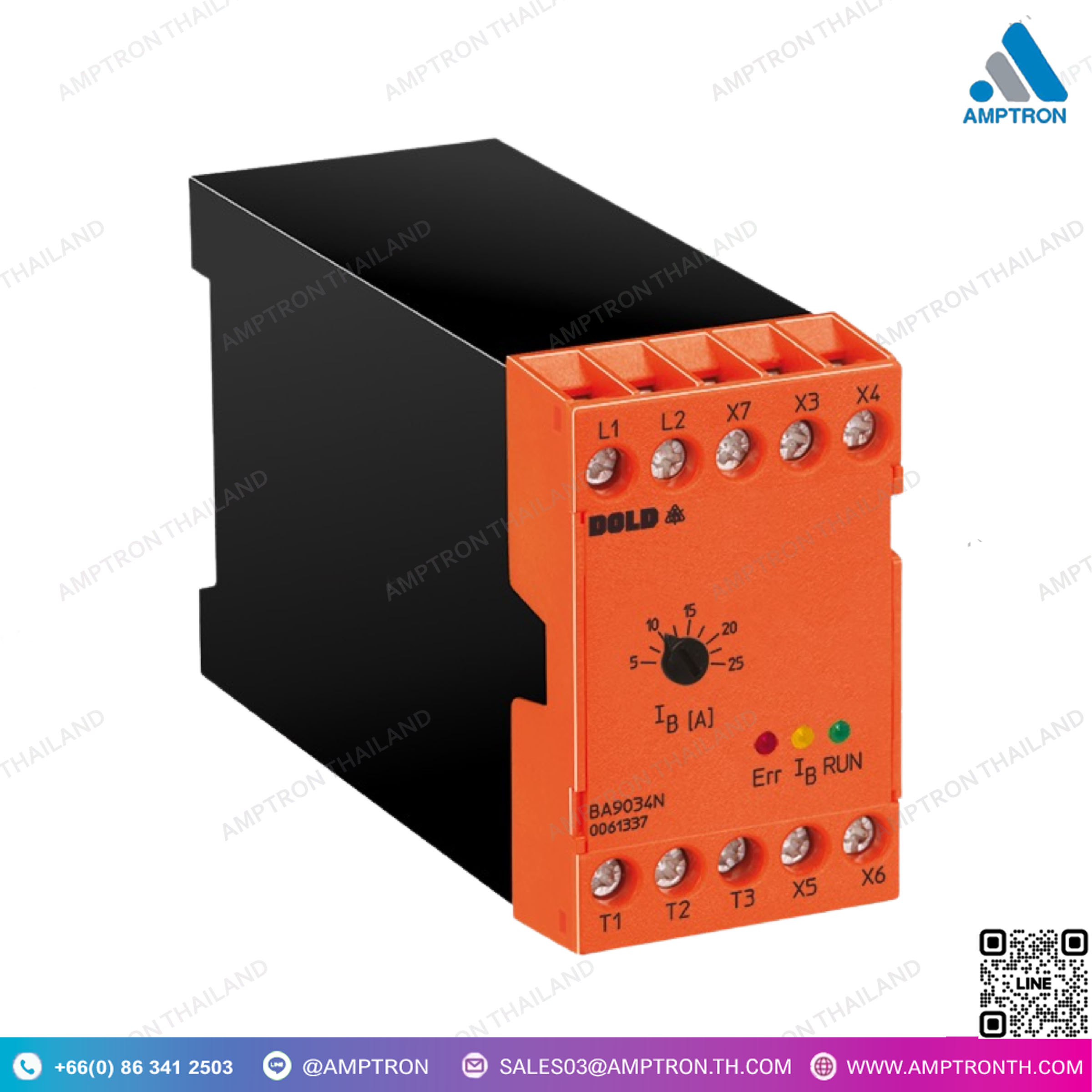

Motor Brake Relay MINISTOP BA 9034N
Brand : DOLD
Catalog : Google Drive
Model : BA 9034N
Size : 45 x 73 x 122 mm.
• ตาม IEC/EN 60947-4-2
• สำหรับมอเตอร์ซิงเกิลและ 3 เฟสอะซิงโครนัส 3 เฟส
• เบรค DC พร้อมการแก้ไขทางเดียวสูงสุด 32 A
• ควบคุมโดยไมโครคอนโทรลเลอร์
• ติดตั้งได้ง่ายต่อการติดตั้งที่มีอยู่
• สวมใส่โดยไม่เสียค่าใช้จ่ายและไม่ต้องบำรุงรักษา
• คอนแทคเตอร์เบรกแบบบูรณาการ
• การติดตั้งราง DIN
• หมายเลขบทความ: 0061337
• ความถี่ที่ระบุ: 50/60 Hz
• แรงดันที่ระบุ AC 230 V 10 10%, AC 400 V 10 10%
Description
• According to IEC/EN 60947-4-2
• For all single and 3-phase asynchronous motors
• DC-brake with one way rectification up to max. 32 A
• Controlled by microcontroller
• Easily fitted to existing installations
• Wear free and maintenance free
• Integrated braking contactor
• DIN-rail mounting
• Adjustable braking current (controlled current)
• With automatic standstill detection
• Variante /100
– With braking time control
– Without detection of standstill
• Article number: 0061337
• Nominal frequency : 50/60 Hz
• Nominal Voltage AC 230 V ± 10 %, AC 400 V ± 10 %
• Thermoplastic with V0 behaviour according to UL subject 94
