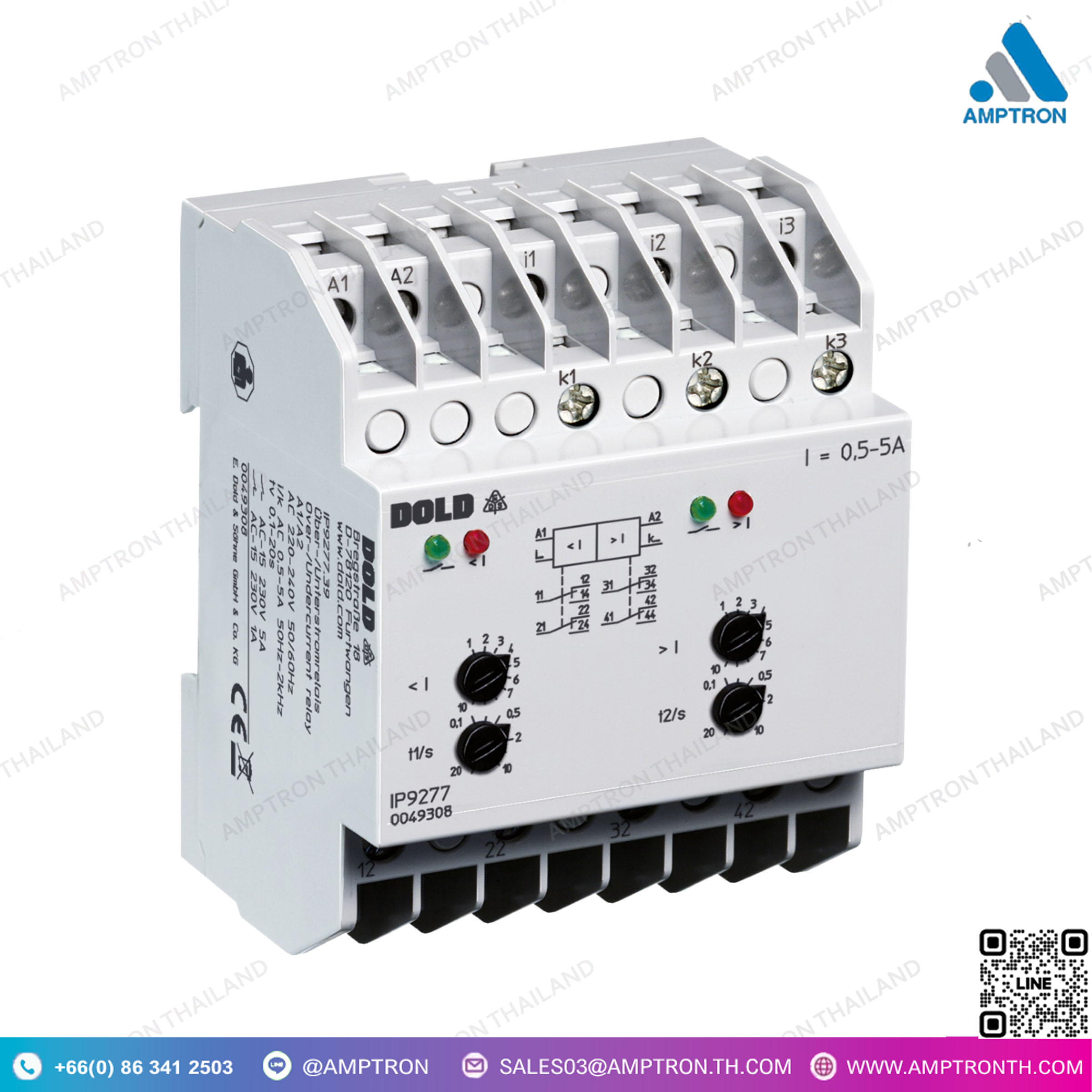

Varimeter Over and Undercurrent Relay IP 9277
รีเลย์กระแสเกินและกระแสต่ำ Over and Undercurrent Relay IP 9277
Brand : DOLD
Catalog : Google Drive
Model : IP 9277
Size : 70 x 90 x 61 mm
• ตามมาตรฐาน IEC/EN 60 25-1
• IP 9277 : สามเฟส
• ช่วงการวัดจาก AC 0.1 … 15 A
• พร้อมหม้อแปลงกระแสในตัวสำหรับ 0.5 … 100 A
• IP 9277, SP 9277 มาพร้อมการตั้งเวลาหน่วงแยกสำหรับกระแสเกินและกระแสต่ำ
• ไฟ LED แสดงสถานะสำหรับกระแสเกิน, กระแสต่ำ และกระแสปกติ
• IP 9277 มาพร้อมรีเลย์เอาท์พุตแยกสำหรับกระแสเกินและกระแสต่ำ
• สามารถเลือกออปชันเปิดการทำงานเมื่อเกิดการทริป
• การติดตั้งบนราง DIN หรือการติดตั้งด้วยสกรู
• หมายเลขสินค้า: 0049306
• ทำจากเทอร์โมพลาสติกที่มีคุณสมบัติ V0 ตามมาตรฐาน UL Subject 94
Description
• According to IEC/EN 60 25-1
• IP 9277 : 3-phase
• Measuring ranges from AC 0.1 … 15 A
• With built in current transformer for 0.5 … 100 A
• IP 9277, SP 9277 with separate settable time delay for over- and undercurrent
• LED indicators for over-, under- and normal current
• IP 9277 with separate output relays for over- and undercurrent
• Optionally energized on trip
• DIN rail or screw mounting
• Article number: 0049306
• Thermoplastic with V0 behaviour according to UL subject 94
