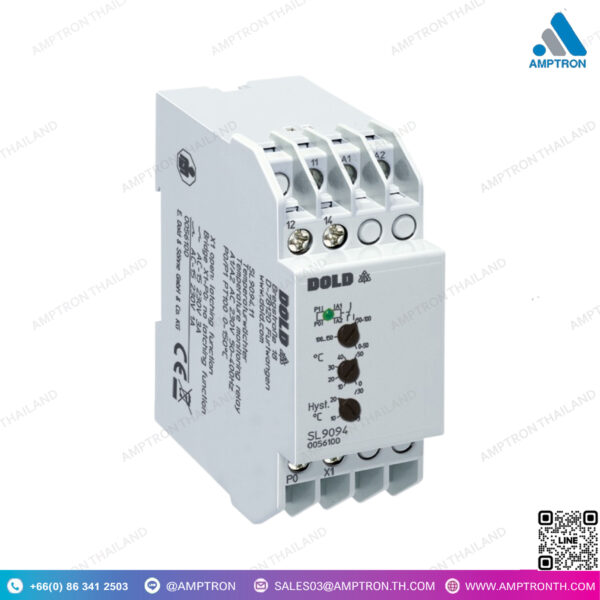

Relayตรวจจับอุณหภูมิ Temperature Monitoring Relay SL 9094
Brand : DOLD
Catalog : Google Drive
Model : SL 9094
Size : 35 x 90 x 98 mm
• ตามมาตรฐาน IEC/EN 60255-1
• อินพุต PT100 1 ช่อง, การเชื่อมต่อแบบ 2 สาย
• มี 3 ช่วงอุณหภูมิ
• สามารถปรับค่าตอบสนองได้
• สามารถปรับฮิสเตอรีซิสได้ในช่วงกว้าง 3 … 30 °C หรือ 1 … 15°C
• ตรวจจับสายขาดในวงจรเซ็นเซอร์
• ฟังก์ชันฮิสเตอรีซิสหรือฟังก์ชันล็อคสามารถตั้งโปรแกรมได้ผ่านขั้วต่อ X1
• IK 9094 ไม่มีการแยกทางไฟฟ้า (galvanic separation) ระหว่างวงจรวัดและวงจรเสริม
• การทำงานในวงจรปิด
• แสดงสถานะการทำงานและสถานะของรีเลย์เอาต์พุตด้วย LED
• 1 สัมผัสการสลับ
• สามารถเลือกได้ว่าค่าตอบสนองสูงสุดถึง -50°C เช่น สำหรับระบบทำความเย็น
• มีตัวเลือกสำหรับการแยกทางไฟฟ้า (galvanic separation) ระหว่างวงจรวัดและวงจรเสริม
• ติดตั้งบนราง DIN หรือการติดตั้งด้วยสกรู
• หมายเลขสินค้า: 0051642
• ผลิตจากเทอร์โมพลาสติกที่มีคุณสมบัติ V0 ตามมาตรฐาน UL Subject 94
Description
• According to IEC/EN 60255-1
• 1 PT100 input, 2-wire connection
• 3 temperature ranges
• Adjustable response value
• Adjustable Hysteresis with wide range 3 … 30 °C or 1 … 15°C
• Broken wire detection in sensor circuit
• Programmable hysteresis or latching function via terminal X1
• IK 9094 no galvanic separation between measuring and Auxiliary Circuit
• Closed circuit operation
• LED indicator for operation and state of output relay
• 1 changeover contact
• As option with response value up to – 50°C, e.g. for refrigeration plants
• As option with galvanic separation between measuring and Auxiliary Circuit
• DIN rail or screw mounting
• Article number: 0051642
• Thermoplastic with V0 behaviour according to UL subject 94
