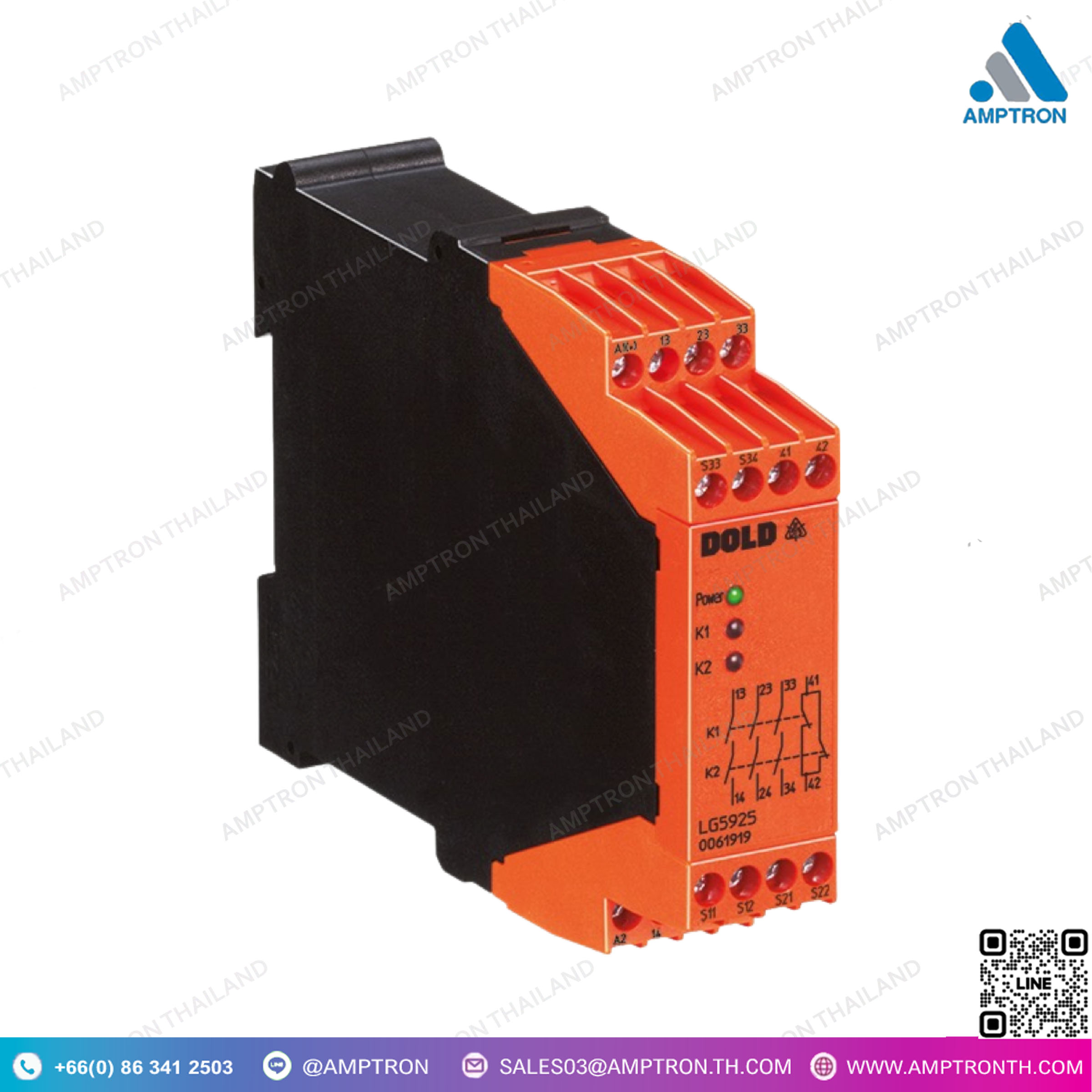

Safe master Emergency Stop Module LG 5925
Safe master โมดูลหยุดฉุกเฉิน
Brand : DOLD
Catalog : Google Drive
Model : LG 5925
Size : 22.5 x 90 x 121 mm, 22.5 x 111 x 121 mm, 22.5 x 104 x 121 mm
• ตามมาตรฐาน EN 50156-2 สำหรับเตาหลอม
• เอาต์พุต: สูงสุด 4 คอนแทกต์ NO, ดูรายละเอียดคอนแทกต์
• LG 5925.54: 1 เอาต์พุตเซมิคอนดักเตอร์
• การทำงานแบบช่องเดียวและสองช่อง
• การตรวจจับความผิดปกติของสายไฟในปุ่มเปิด
• การเริ่มต้นใหม่แบบมือหรืออัตโนมัติ, สวิตช์ S2
• มีหรือไม่มีการตรวจสอบความผิดปกติข้ามในลูป E-stop, สวิตช์ S1
• LG 5925.54: มีการตรวจสอบความผิดปกติข้ามในลูป E-stop
• ไฟ LED แสดงสถานะช่อง 1, 2 และแหล่งจ่ายไฟ
• แท็บปลั๊กขั้วต่อที่สามารถถอดออกได้
• การเชื่อมต่อสาย: รองรับสาย 2 x 1.5 mm² แบบสายขดลวดพร้อมปลอกหุ้ม หรือ 2 x 2.5 mm² แบบสายตันตามมาตรฐาน DIN 46228-1/-2/-3/-4
• มีออปชันสำหรับขั้วต่อที่สามารถถอดออกได้เพื่อการเปลี่ยนแปลงอุปกรณ์ได้ง่าย
ด้วยขั้วต่อสกรู
หรือด้วยขั้วต่อแบบคลิปหนีบ
• หมายเลขสินค้า: 0061919
• ทำจากเทอร์โมพลาสติกที่มีคุณสมบัติ V0 ตามมาตรฐาน UL Subject 94
Description
• According to EN 50156-2 for furnaces
• Output: Max. 4 NO contacts, see contacts
• LG 5925.54: 1 semiconductor output
• Single and 2-channel operation
• Line fault detection on On-button
• Manual restart or automatic restart, switch S2
• With or without cross fault monitoring in the E-stop loop, switch S1
• LG 5925.54: With cross fault monitoring in the E-stop loop
• LED indicator for channel 1, 2 and supply voltage
• Removable terminal strips
• Wire connection: Also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46228-1/-2/-3/-4
• As option with pluggable terminal blocks for easy exchange of devices
– With screw terminals
– Or with cage clamp terminals
• Article number: 0061919
• Thermoplastic with V0 behaviour according to UL subject 94
