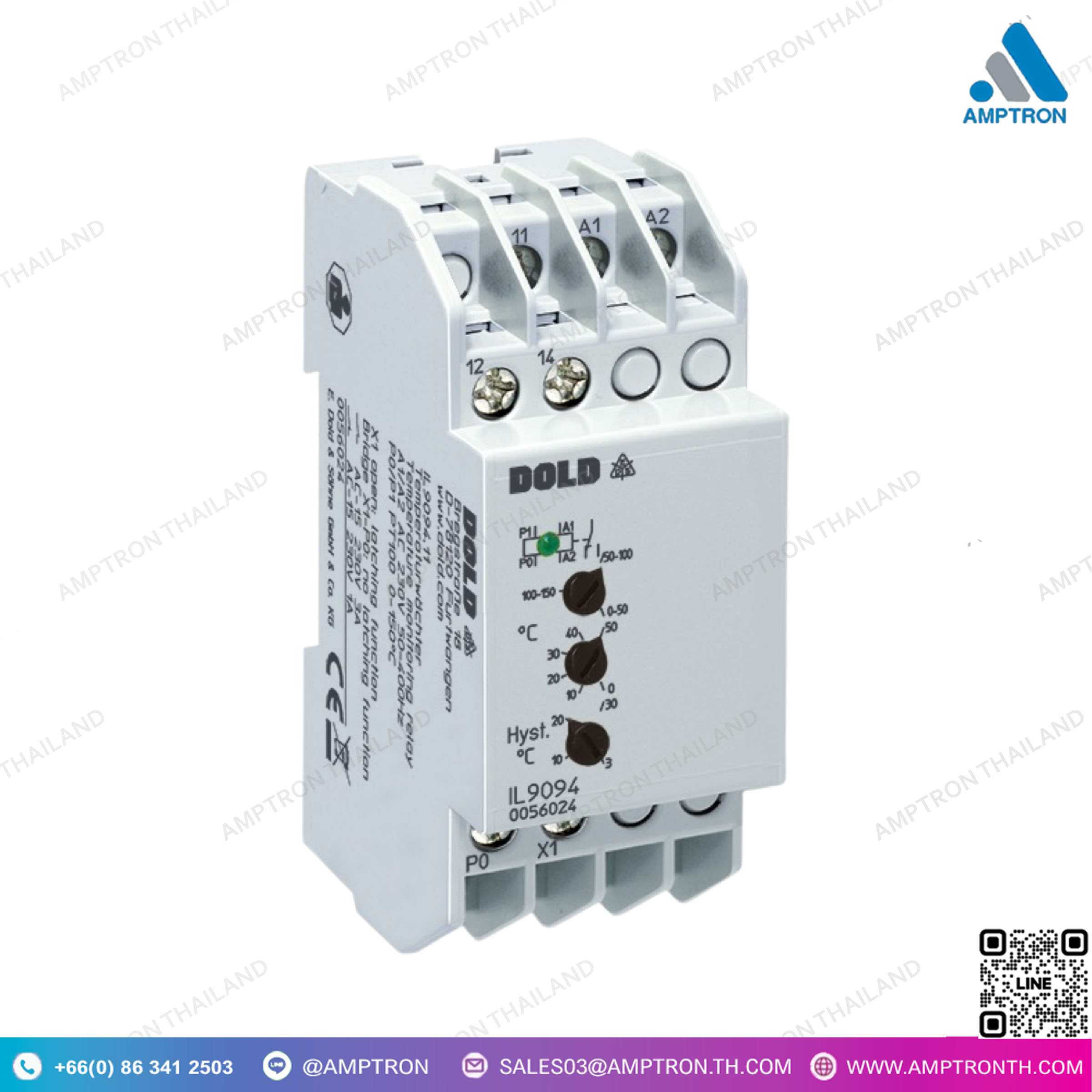

Relay ตรวจจับอุณหภูมิ Monitoring Relay IK 9094 1อินพุท PT100
Brand : DOLD
Catalog : Google Drive
Model : IK 9094
Size : 17.5 x 90 x 59mm
• According to IEC/EN 60255-1
• ป้อนข้อมูล 1 PT100, เชื่อมต่อ 2 สาย
• 3 ช่วงอุณหภูมิ
• ค่าการตอบสนองที่ปรับได้
• ไฮสเตอเรซิสที่ปรับได้ มีช่วงกว้าง 3 … 30 cC หรือ 1 … 15 cC
• การตรวจจับสายไฟหักในวงจรเซ็นเซอร์
• ระบบไฮสเตอเรซิสที่สามารถตั้งโปรแกรมได้หรือฟังก์ชันการจับผ่านเทอร์มินัล X1
• IK 9094 ไม่มีการแยกกัลวานิกระหว่างการวัดและวงจรเสริม
• เป็นตัวเลือกที่มีค่าการตอบสนองสูงถึง – 50 ,C เช่น สำหรับโรงงานทำความเย็น
• Article number: 0051642
• Thermoplastic with V0 behaviour according to UL subject 94
Description
• According to IEC/EN 60255-1
• 1 PT100 input, 2-wire connection
• 3 temperature ranges
• Adjustable response value
• Adjustable Hysteresis with wide range 3 … 30 °C or 1 … 15°C
• Broken wire detection in sensor circuit
• Programmable hysteresis or latching function via terminal X1
• IK 9094 no galvanic separation between measuring and Auxiliary Circuit
• Closed circuit operation
• LED indicator for operation and state of output relay
• 1 changeover contact
• As option with response value up to – 50°C, e.g. for refrigeration plants
• As option with galvanic separation between measuring and Auxiliary Circuit
• DIN rail or screw mounting
• Article number: 0051642
• Thermoplastic with V0 behaviour according to UL subject 94
