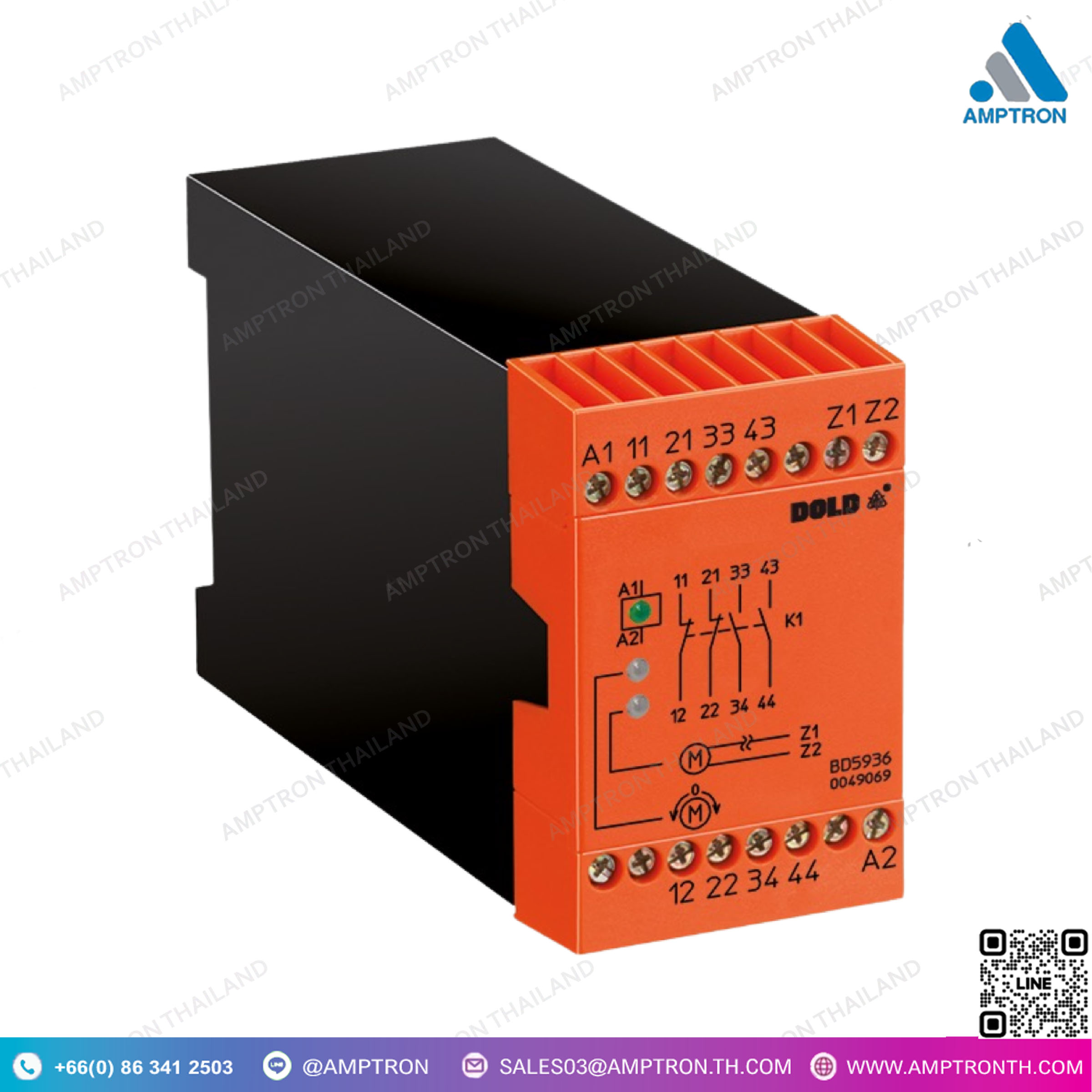

Varimeter Standstill Monitor BD 5936
Brand : DOLD
Catalog : Google Drive
Model : BD 5936
Size : 45 x 74 x 131 mm.
• IEC / EN 60255-1, IEC / EN 60255-26
• สำหรับการตรวจสอบการหยุดนิ่งของมอเตอร์ 3 และ 1 เฟส asynchronous
• หมายเลขบทความ: 0049069
• เทอร์โมพลาสติกที่มีพฤติกรรม V0 ต่อ UL Subj. 94
• การตรวจจับการแตกของเส้นในวงจรการวัด
• การเชื่อมต่อสายไฟ: DIN 46228/-1/-2/-3/-4 หรือ 2 x 2.5 mm2 stranded DIN 46228-1/-2/-3 หรือ 2 x 2.5 mm2 stranded DIN 46228-1/-2/-3
• แรงดันไฟฟ้าเสริม: AC 24, 48, 110, 120, 230 V
: AC/DC 24… 60 V, 110… 230 โวลต์
• ช่วงแรงดันไฟฟ้า: 0.8 … 1.1 U
Description
• According to IEC/EN 60255-1, IEC/EN 60255-26
• For standstill monitoring of 3- and 1-phase asynchronous motors
• Article number: 0049069
• Thermoplastic with V0 behaviour to UL Subj. 94
• Line breakage detection in the measurement circuit
• Forcibly guided output contacts: 2 NO, 2 NC contacts for 250 V AC
• LED indicators for motor standstill, line breakage and operating voltage
• Wire connection: Also 2 x 1.5 mm2 stranded ferruled (isolated), DIN 46228/-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46228-1/-2/-3
Input
• Auxiliary voltage : AC 24, 48, 110, 120, 230 V
: AC/DC 24 … 60 V, 110 … 230 V
• Voltage range: 0.8 … 1.1 U
• Nominal frequency: 50 / 60 Hz
