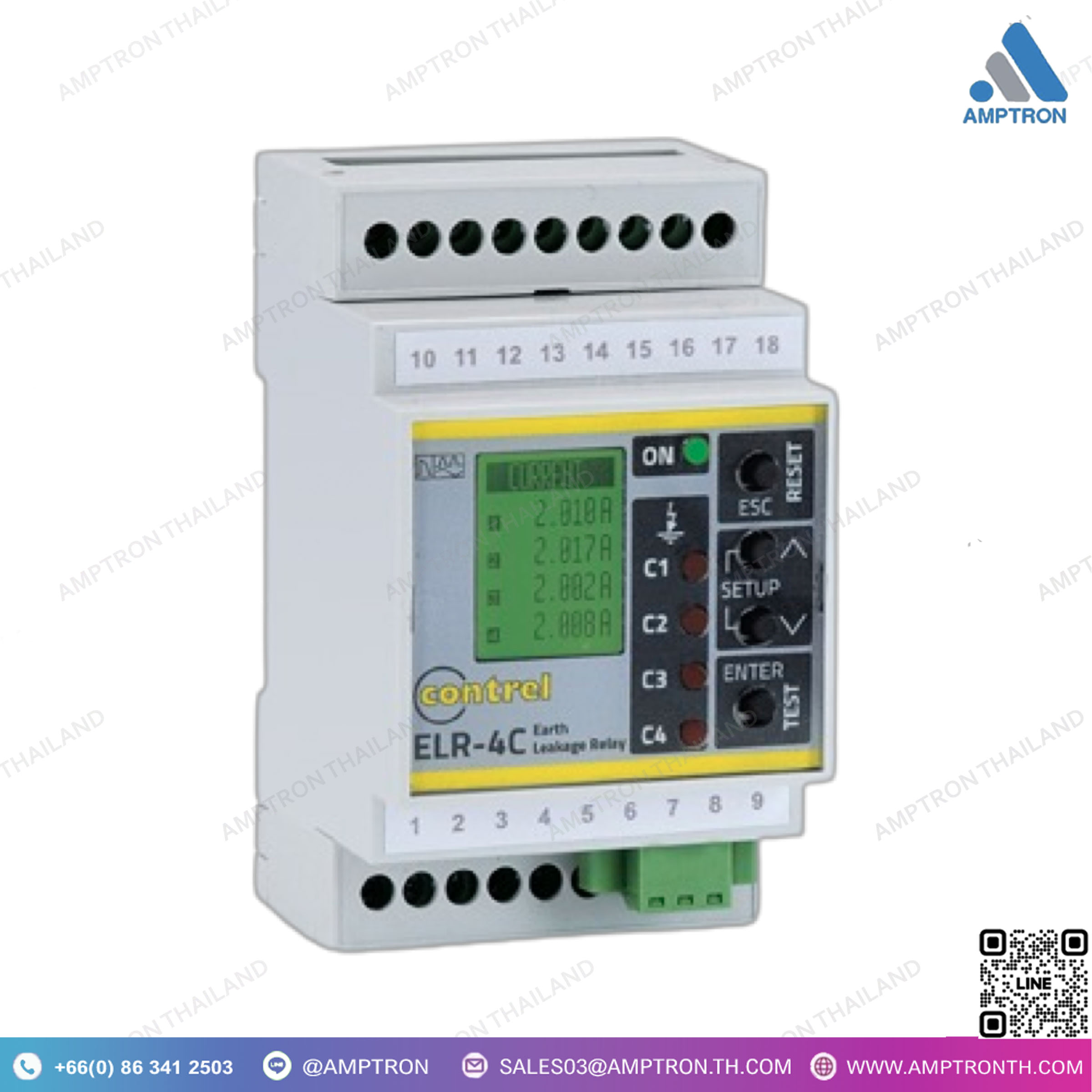

รีเลย์ตรวจจับไฟรั่ว RS485 Earth-leakage relay ELR-4C
Brand : CONTREL
Catalog : Google Drive
Model : ELR-4C
Size : N/A
• ประเภทผลิตภัณฑ์ : รีเลย์ป้องกันกระแสไฟรั่ว
• ความเข้ากันได้ของเซนเซอร์กระแส : เซนเซอร์กระแสไฟรั่ว CT-1
• พลังงาน : 6 VA
“• ประเภทการแสดงผล : LCD มีไฟแบ็คไลท์ (สีแดง TRIP)
LCD มีไฟแบ็คไลท์ (สีเหลือง ALARM)”
• การปรับตั้งกระแสไฟที่เหลือ : 0.030…30 A
• การปรับตั้งเวลาในการหน่วงกระแสไฟที่เหลือ : 0.02…10 วินาที
• ชั้นการป้องกันกระแสไฟรั่ว : ประเภท A
“• รีเลย์เอาต์พุต : 4 การสลับ (TRIP) 5 A (240 VAC)
กำหนดค่าได้ว่าเป็นแบบไม่มีพลังงานหรือต้องการพลังงาน”
“• การแสดงผล :
LED สีแดง (TRIP)
LED สีเขียว (พลังงานเปิด)
LED สีเหลือง (ALARM)”
• ไฟ LED สีแดง 4 ดวงสำหรับการตัดการทำงาน
• พอร์ตการสื่อสาร : RS485 (อุปกรณ์เสริม)
• วิธีการติดตั้ง : ราง DIN 3 โมดูล
“• มาตรฐาน : IEC/EN 61010
IEC/EN 61000-6-2EN
IEC/EN 61000-6-3
IEC/TR 60755
CEI EN 60947-2 Annex M”
• ระดับการป้องกัน IP : IP40 ด้านหน้า, IP20 ขั้วต่อ
• อุณหภูมิการทำงาน : -10…+60 °C
DESCRIPTION
• Product type : Residual current protection relay
• Current sensors compatibility : CT-1 earth leakage current sensor
• Power consumption : 6 VA
“• Display type Backlight LCD (red TRIP)
Backlight LCD (yellow ALARM)”
• Residual earth-leakage adjustment : 0.030…30 A
• Residual earth-leakage time delay adjustment : 0.02…10 s
• Earth-leakage protection class : Type A
“• Output relays 4 independent (TRIP) 5 A (240 VAC)
Configurable normally de-energised or energised”
“• Display indications : Green LED (power ON)
Red LED (TRIP)
Yellow LED (ALARM)”
• 4 red indicator LEDs for tripping
“• Communication port RS485 (optional)”
• Mounting mode : DIN rail 3 modules
“• Standards IEC/EN 61010
IEC/EN 61000-6-2EN
IEC/EN 61000-6-3
IEC/TR 60755
CEI EN 60947-2 Annex M”
• IP degree of protection : IP40 front, IP20 terminals
• Operating temperature : -10…+60 °C
