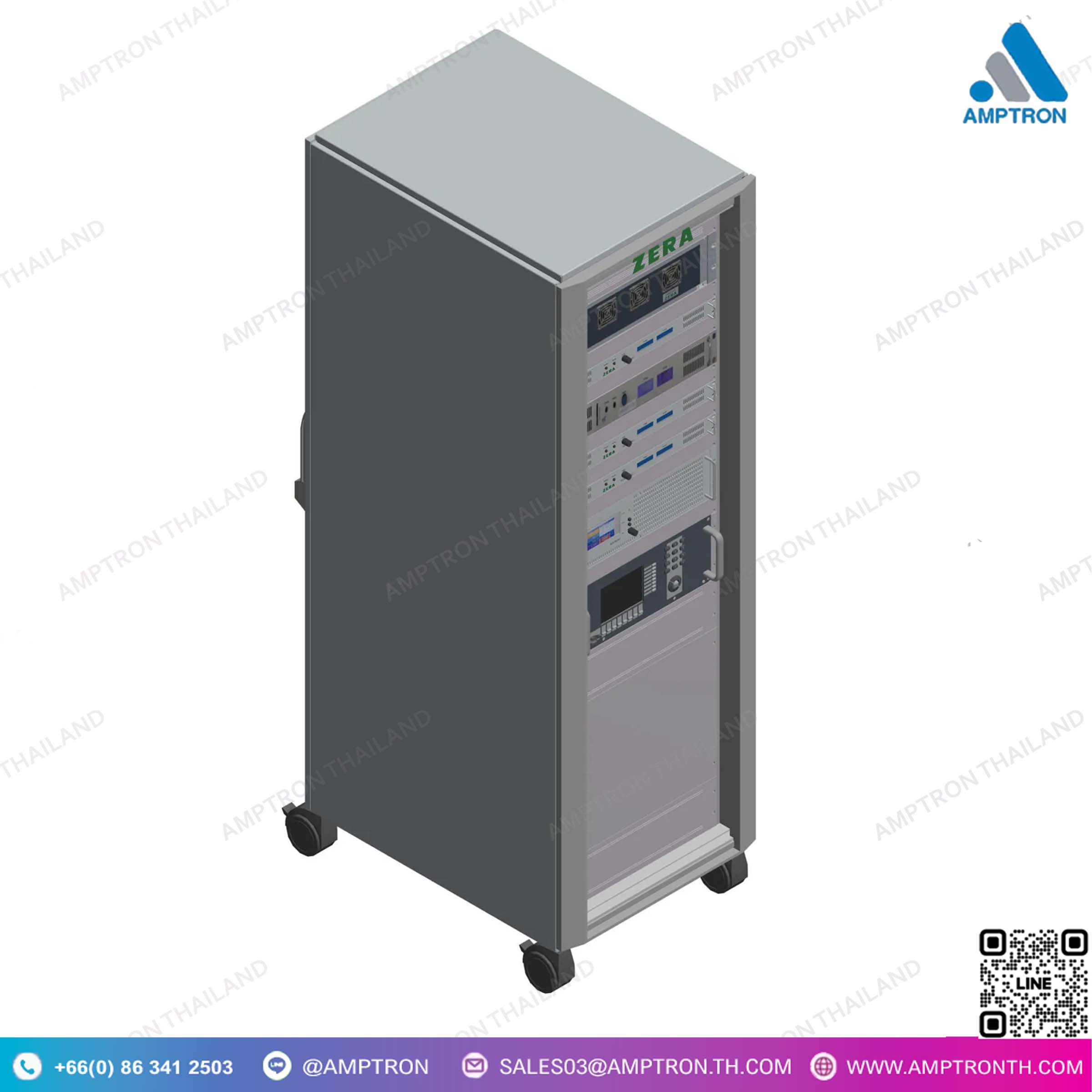

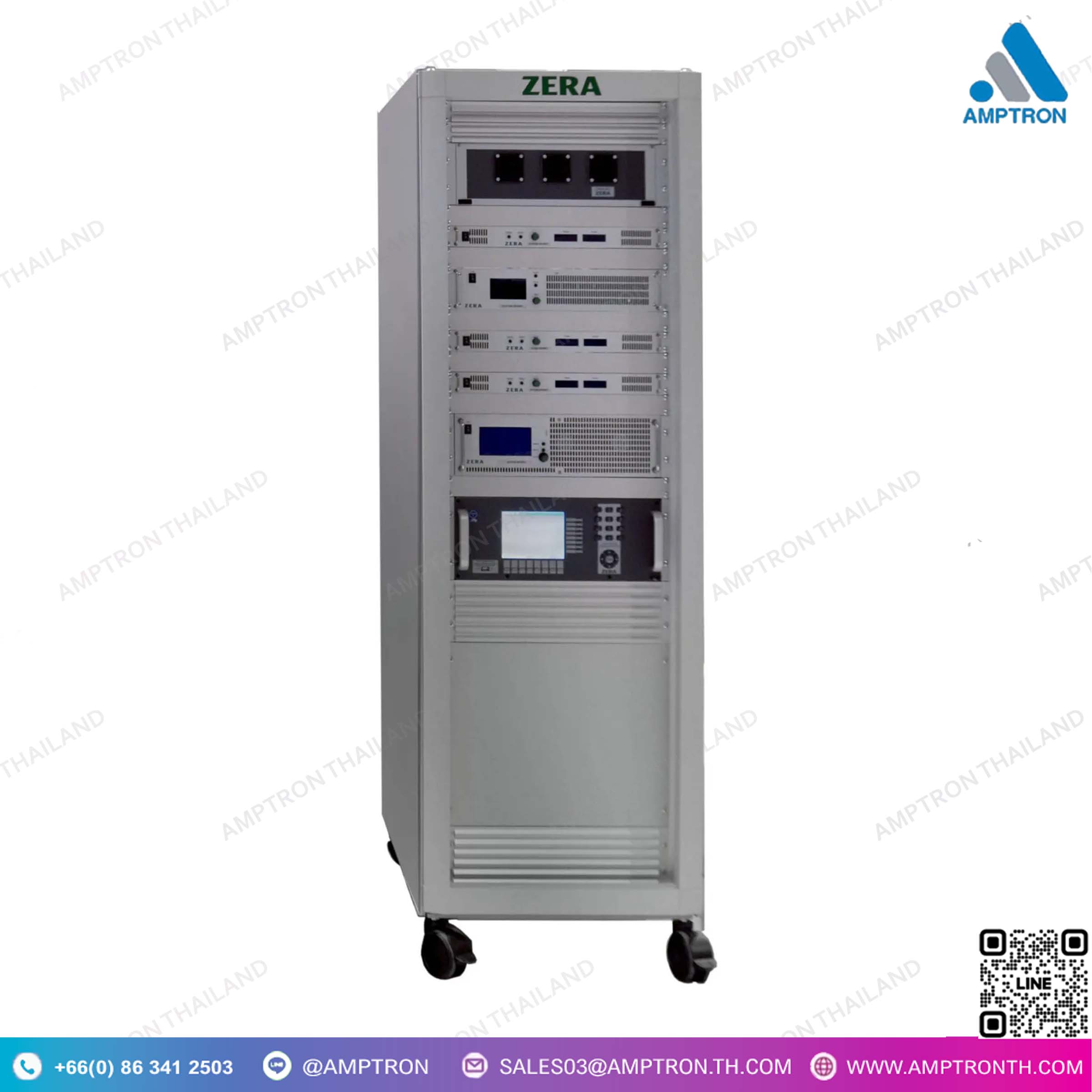

ระบบสอบเทียบเครื่องมือ MTS750 Source System
Brand : ZERA
Catalog : Google Drive
Model : MTS750
• Accuracy class: 0.040
• Current generation up to 600 A (DC)
• Voltage generation up to 1000 V (DC)
• Current generation max. : 600 A (DC)
• ฟังก์ชั่นหลัก
การสร้างปริมาณการทดสอบ
• ส่วนประกอบ
COM3003: มิเตอร์อ้างอิง
CR2020: อินเตอร์เฟซพื้นฐาน
SCG750: เครื่องกำเนิดกระแสไฟฟ้ามาตรฐาน DC
SCG8: เครื่องกำเนิดกระแสไฟฟ้ามาตรฐาน DC
SCG80: เครื่องกำเนิดกระแสไฟฟ้ามาตรฐาน DC
SVG1200: เครื่องกำเนิดแรงดันไฟฟ้ามาตรฐาน DC
SVG150: เครื่องกำเนิดแรงดันไฟฟ้าสำหรับแรงดันไฟฟ้าช่วย DC
• ตู้ควบคุม
หน่วยพัดลมพร้อมการควบคุม
สวิตช์หลัก
• ขอบเขตการใช้งาน
การใช้งานในระบบทดสอบมิเตอร์ ZERA แบบคงที่
• คุณสมบัติพิเศษ
FG-Middleware (ซอฟต์แวร์) สำหรับการสื่อสารระหว่าง WinSAM และส่วนประกอบฮาร์ดแวร์แต่ละตัว
PLC สำหรับควบคุมวงจรแรงดันและกระแส รวมถึงไฟเตือน
สามารถปรับตำแหน่งการทดสอบให้เหมาะสมกับมิเตอร์ที่ทดสอบได้ตามคำขอ
การทดสอบปริมาณ AC และ DC
DESCRIPTION
• Accuracy class: 0.040
• Current generation up to 600 A (DC)
• Voltage generation up to 1000 V (DC)
• Current generation max. : 600 A (DC)
• Main functions : Generation of test quantities
• Components
– COM3003, Reference Meter
– CR2020, basic interface
– SCG750, Standard Current Generator DC
– SCG8, Standard Current Generator DC
– SCG80, Standard Current Generator DC
– SVG1200, Standard Voltage Generator DC
– SVG150, Standard Voltage Generator for auxiliary voltages DC
– Control cabinet
– Fan unit with regulation
– Main switch
• Scope of application : Application in stationary ZERA Meter Test Systems
• Specials
– FG-Middleware (software) for communication between WinSAM and individual hardware components
– PLC for control of the voltage and current circuit as well as a warning lamp
– Test position can be adapted variably to the meter under test on request
– Testing of AC and DC quantities
